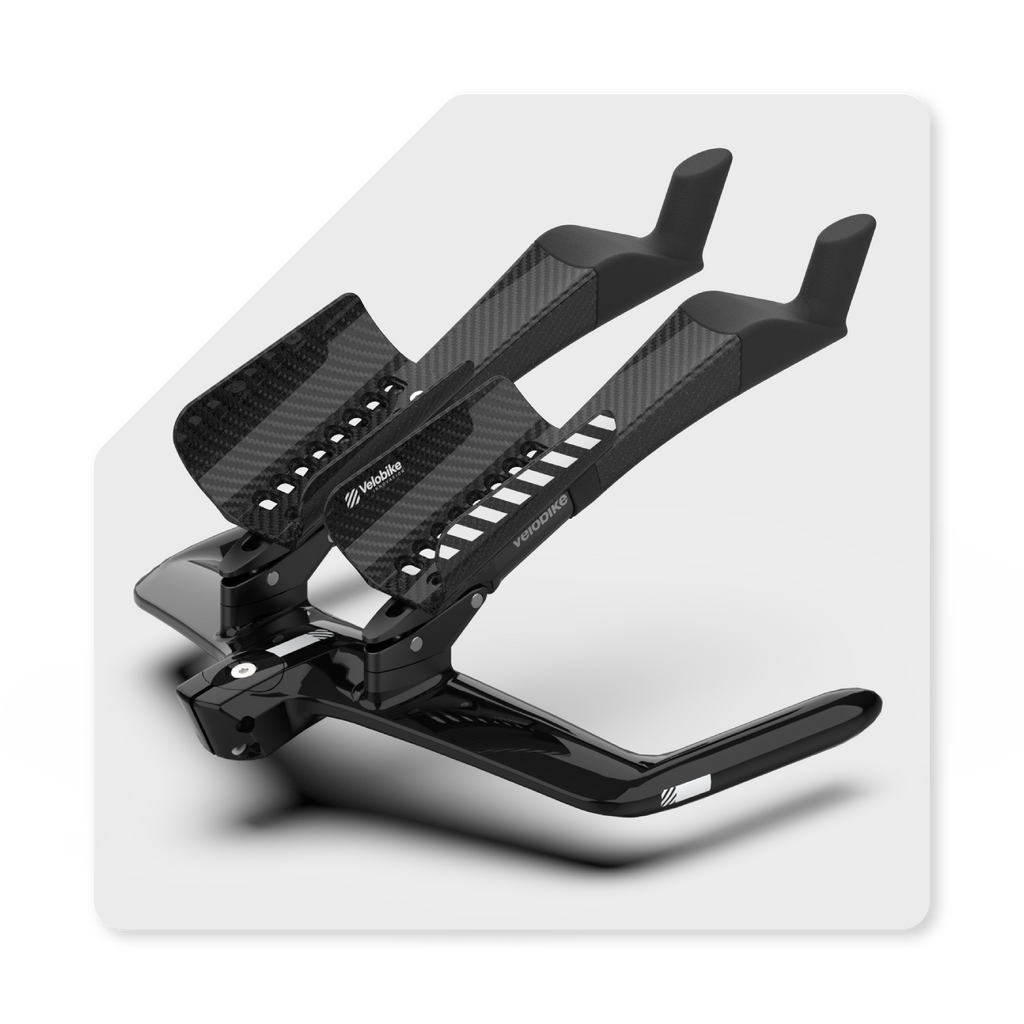

Altias Pursuit Cockpit
$3,750.00
A complete, race-ready cockpit for Altias framests. The One-piece Altias Basebar, adjustable risers, ergonomic arm rests, and modular extensions work together to help you lock in a fast, comfortable and repeatable 1km time trial or pursuit position.
The pursuit cockpit bundle brings five precision components together to function as one system: Altias Basebar, Aerobar Extensions, Aerobar Riser set, Adjustable Angle Risers, Riser bolts and Carbon Arm Rests. Engineered around real-world fit ranges and UCI geometry constraints, the system gives you fine control over every ergonomic feature.
The aerodynamically optimised yet highly adjustable assembly is designed to seamlessly integrate on the Altias framests. The Modular design allow for precise adjustment, interchangeable grips and spacers to tune hand height and reach while maintaining a class leading track sprinting level stiffness.
Basebar Geometry
Narrow basebars are proven to be faster. The grips sit in-line with the athletes knees - breaking the airflow before it hits the rider. This basebar is designed to meet the UCI minimum width requirements.
Long grip sections allow for powerful and controlled standing starts out of the start gate
Adjustability
Supplied risers can configure the extensions in 10 increments from 0-90mm
Grips
Just as everyone is different, a 'one-grip-fits-all' just isn't going to be optimum for everyone. our extensions offer the ability to change grips as your position develops.More grip shapes are in development. Custom grip shapes are available on request.
Frame Fit
Frame Fit
Technical Specifications
- Tested in accordance to 2x ISO 4210-5:2023 strength requirements
- Refer to individual components for more information
Extension Features
- Independent adjustment of stack, reach, width, toe-in, and extension tilt (15°–30°)
- Configurable for Cat 1–3 athletes
- Shaped carbon armrests with optional pads for improved comfort on long efforts
- Interchangeable grips for comfort and control
Basebar Geometry
- Width Outside to Outside: 350mm
- Width Centre to Centre: 324mm
- Grip Diameter: 26mm
- Reach (Bearing to Bar-end): 230mm
- Drop (Bearing to Bar-centre): 10mm
- Steerer Clamp Diameter: 1 1/8" (1.125")
- Extension Mounting Spacing: 100mm
- Extension Mounting Reach (Mount centre): 49mm
- Extension Mounting Stack: 28mm
Frame Compatiability

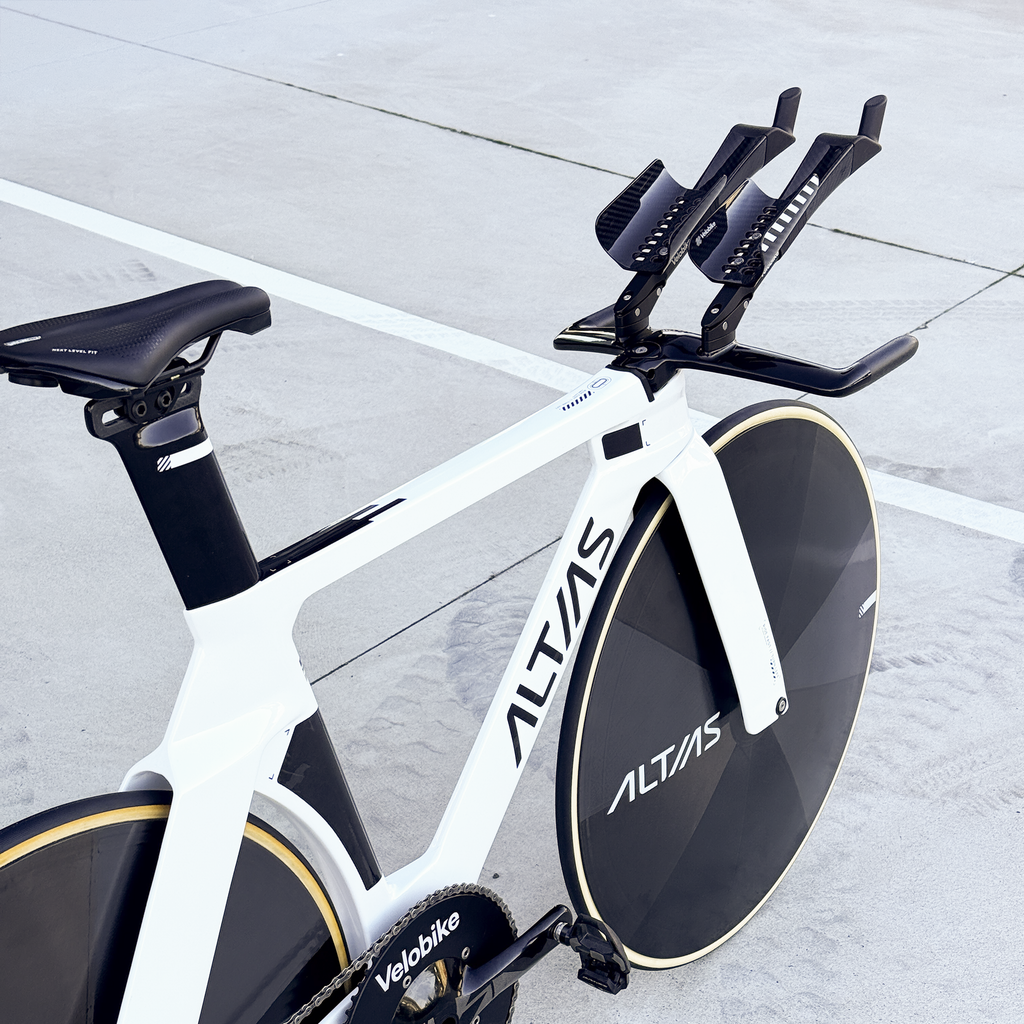

Optimised for the following framesets:
- Altias Fusion
- Velobike Arae
compatible with any track bike with a 1 1/8" steerer tube and a 73° - 75° head tube. Some frames head tubes may foul with the handlebars stem.
What's In The Box
- 1x Altias Basebar
- 1× Pair Adjustable Angle Risers
- 1× Pair Carbon Arm Rests
- 1× Pair Aerobar Extensions
- 1× Pair Aerobar Extension Grips (extras available to purchase separately)
- 1x Set Aerobar Risers (9x height configurations)
- 1x Set Riser bolts (9x height configurations)
Installation Tips
- For optimal security, we recommend using Loctite 243 on all fastenings
Spare Parts & Extra Accessories
Extra Aerobar Extension Grips are available to purchase individually.
