Aerobar Adjustable Risers
$440.00
Universally-fitting Aerobar Adjustable Risers developed in collaboration with Cycling New Zealand in the build-up to the Paris Olympics. The adjustability helps the team dial in their position with micro adjustments to optimise the bike fit in relation to the UCI geometry rules.
The universal design enables the rider to micro adjust their standard 22.2mm diameter tube-style extensions from 15° up to 30°. Internal cable routing is considered for road time trial configurations.
The risers are compatible with almost any base bar. The risers can fit onto base bars with bolt spacing from 20mm through to 40mm, in M5 or M6 bolt sizes, and with a bottom-up or top-down bolting configuration. Note that when mounting in a bottom-up bolt configuration, a nut is held captive within the riser (fastenings not included).
Technical Specifications
- 7075-T6 Aluminium
- Adjustable angle between 15° and 30°
- Compatible with 22.2mm external diameter extensions
- Grub screw extension mounting system
- Access for internal cable routing
Base Bar Compatibilty
- Click here to see current known frame compatibility

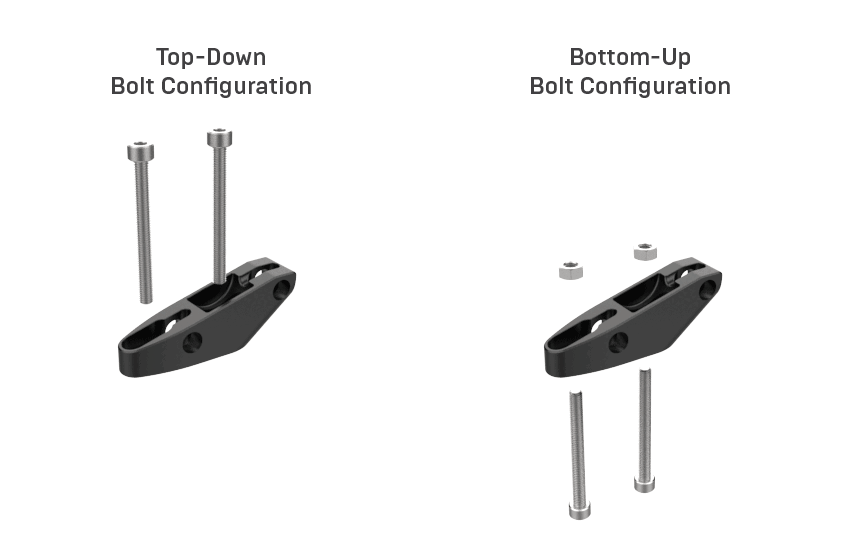

- Compatible with top-down or bottom-up base bar mounting systems

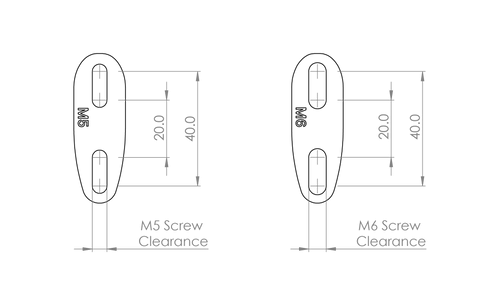

- Compatible with M5 or M6 base bars
- 20mm to 40mm base bar mounting spacing
We do not supply mounting hardware with the risers.
Armrest Compatibility
- 16x armrest fastening locations at 7.5mm increments to fit a wide variety of arm rests
- M5 fastening threads
What's In The Box
Includes 1x pair of adjustable angle risers.
We do not include any mounting hardware for a base bar or armrest fastenings.
Installation Tips
For optimal security, we recommend using Loctite 243 on all fastenings.
