Developed in collaboration with Aus Cycling and Cycling Canada for the Paris 2024 Olympic Games.

Optimised stiffness-to-weight ratio to achieve the best possible direct mount cockpit under high-intensity accelerations. Furthermore, an in-depth aerodynamic study was undertaken to ensure airflow around the leading edge of the stem and headtube junction maintained a fluid and attached airflow.

Note: Direct mount screws are sold separately. please refer to the user manual below to identify your screw length requirements and order the screws here.

Geometry:

Please view the Velobike Altias Stem - Argon18 User Manual & Geometry Guide for selecting the correct stem size for your requirements.

The user manual includes:

• Reach and stack dimensions
• Handlebar reach limits (to 100mm in front of the axle)
• Stem weights
• Direct mount bolt length requirements
• Installation instructions
• Installation torque specifications
• Spacer heights and their effect on reach and stack dimensions

Specifications:

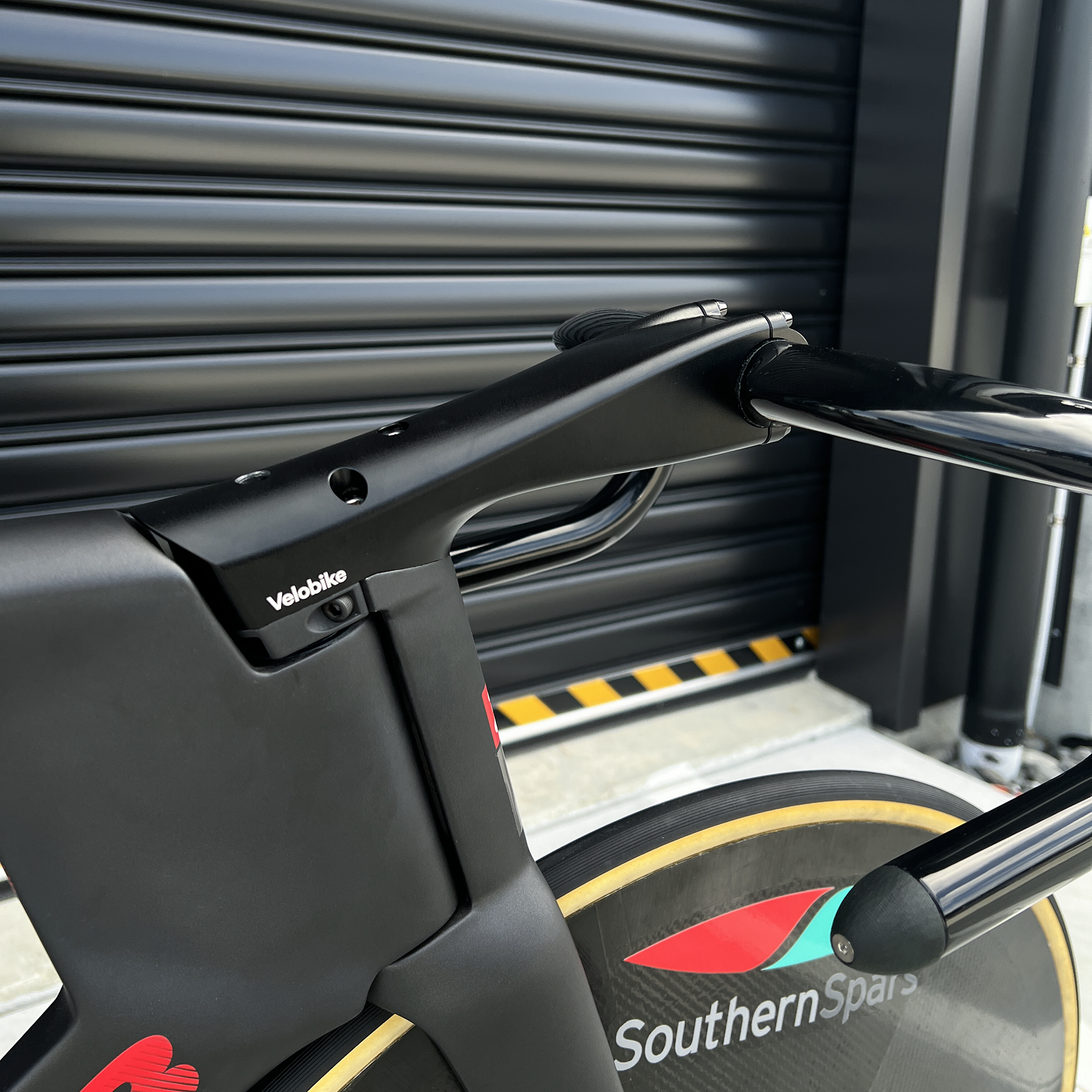

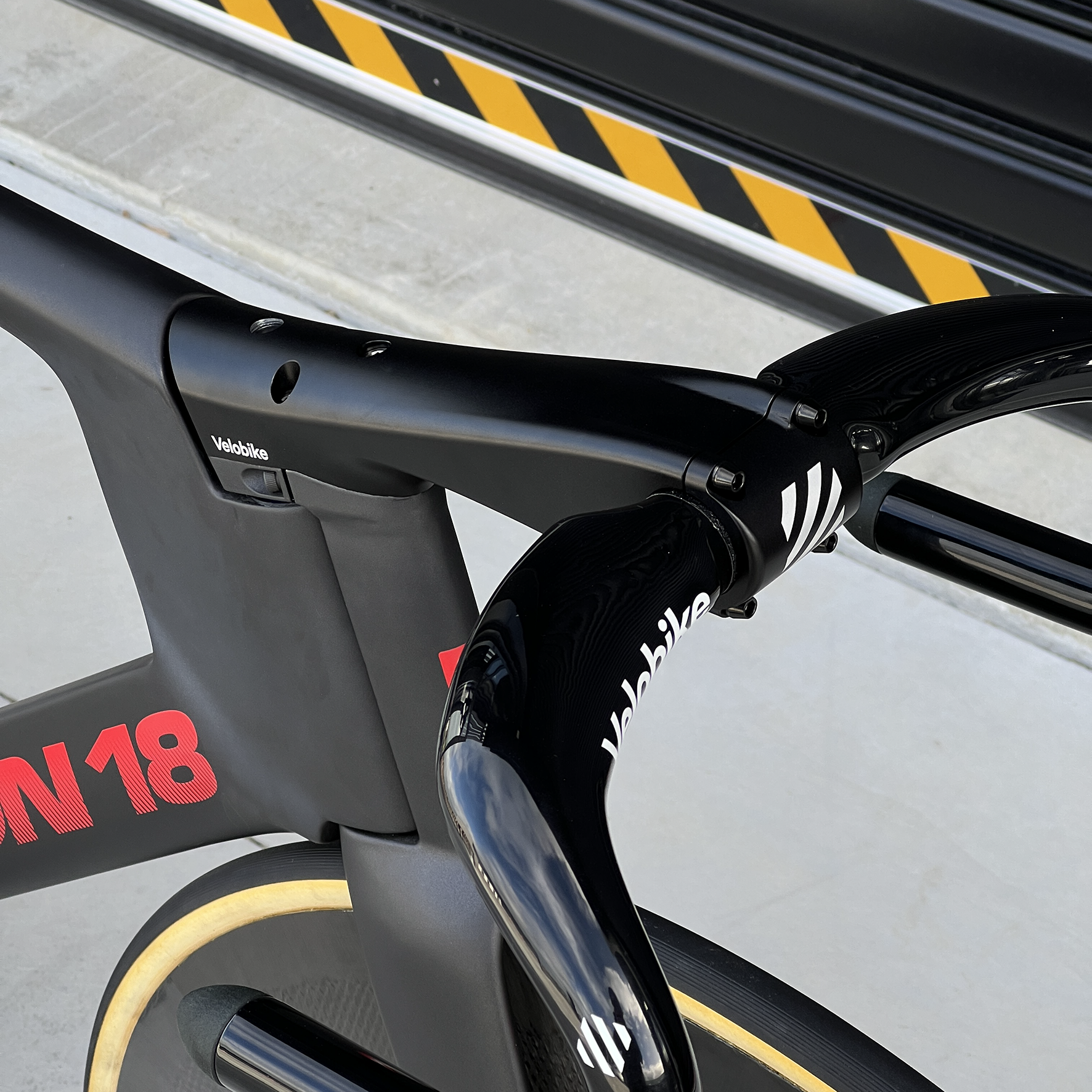

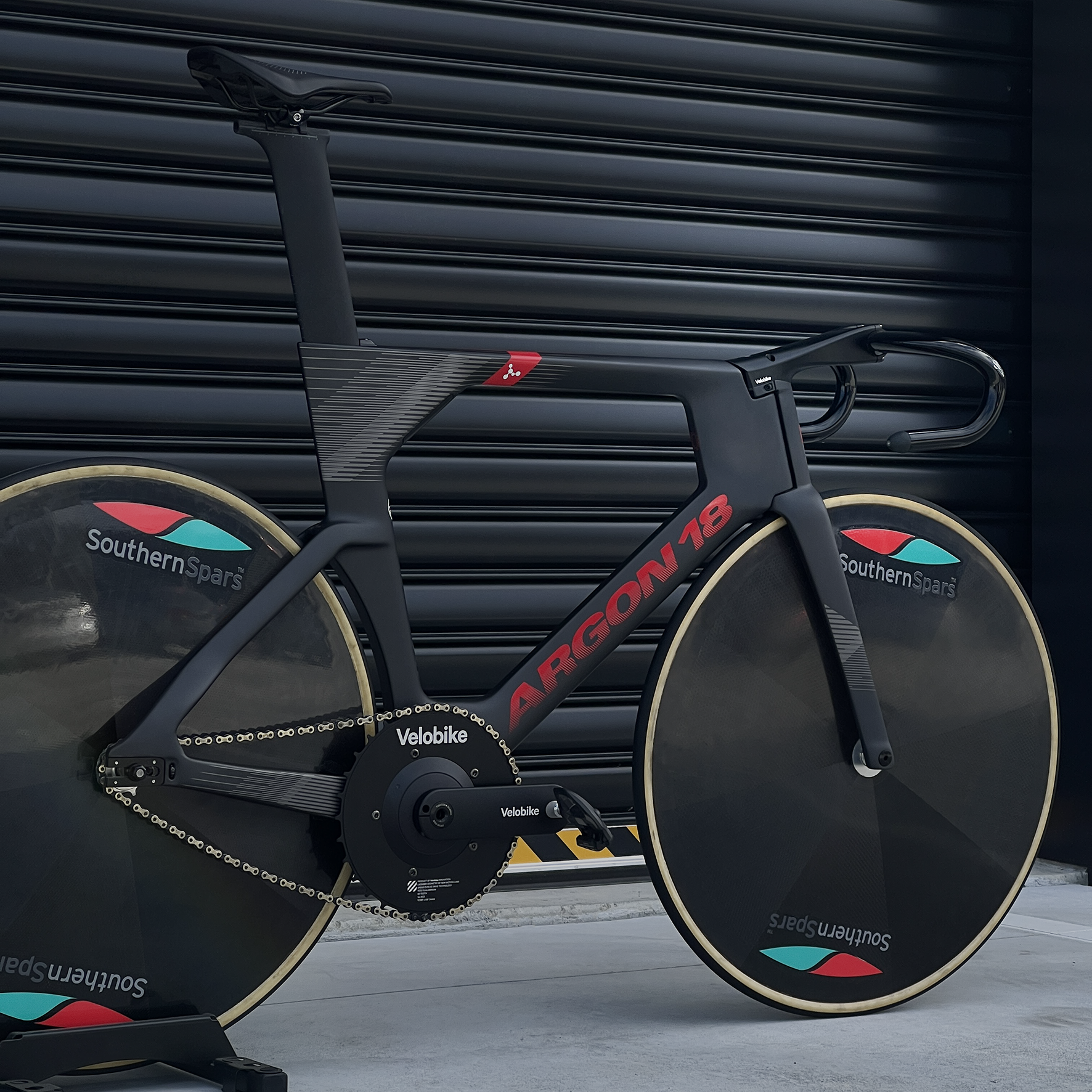

• Compatible with the Argon18 Electron Pro (Rio and TKO) Sprint and Pursuit Framesets
• UCI Legal
• JKA certified for Japanese's Keirin Racing
• ISO 4210-5:2014 certified (tested to 2x the ISO requirements)
• Aero design developed using CFD software

• Bar clamp diameter: 31.8mm
• >Bar clamp width: 49mm
• Recommended to use copper grease on screw threads (grease not included)
• Direct-mount screws are sold separately
• New Zealand FernMark Licenced

Included:

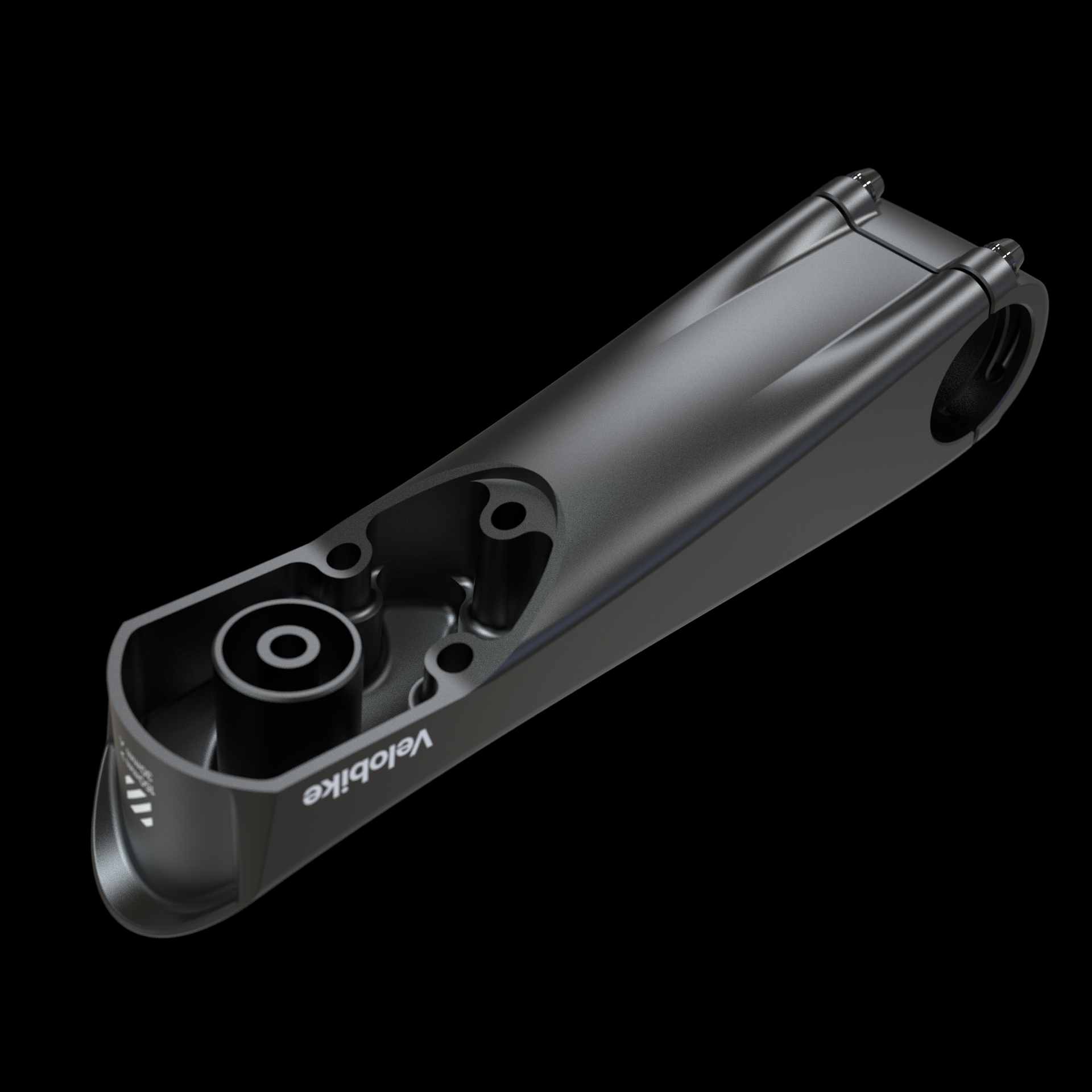

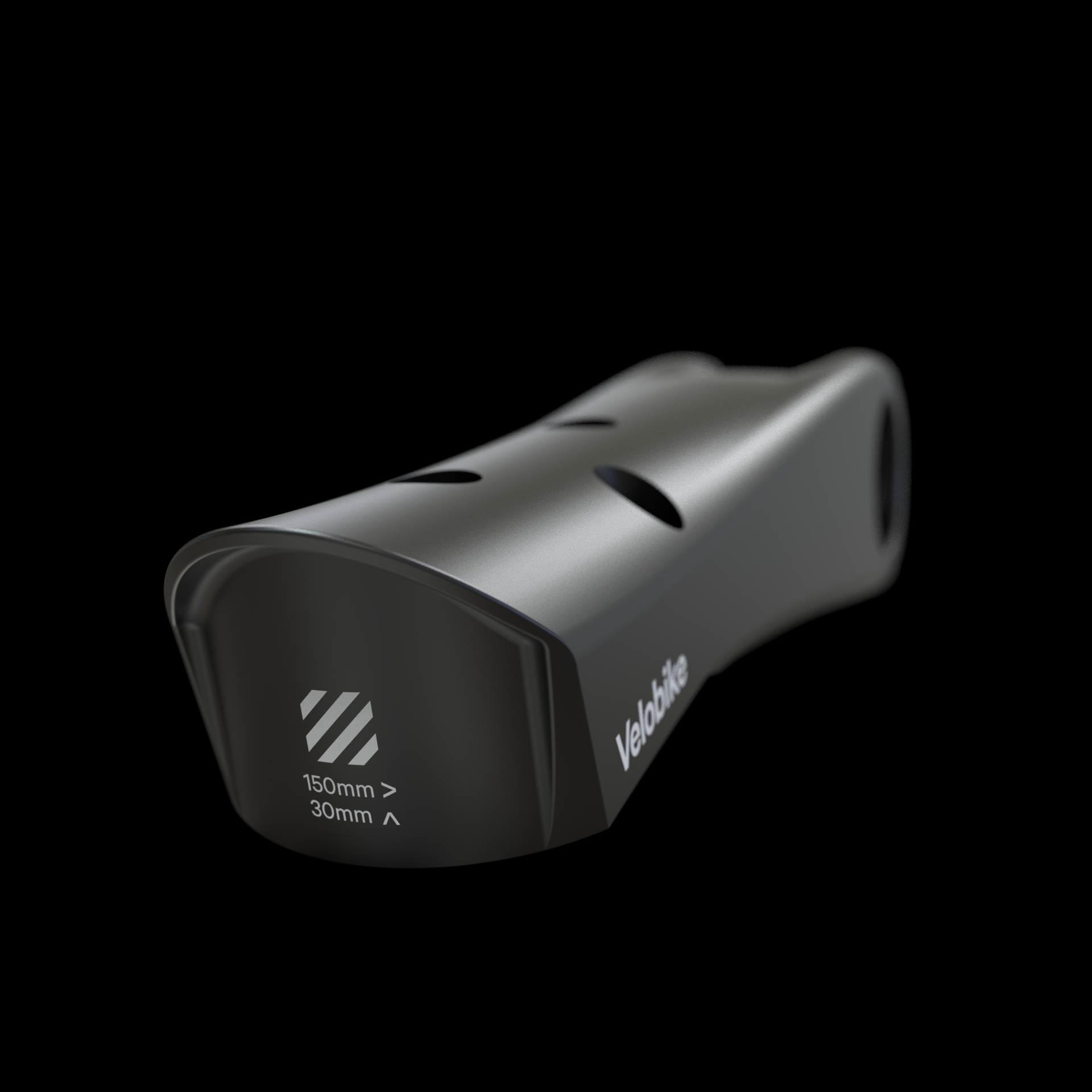

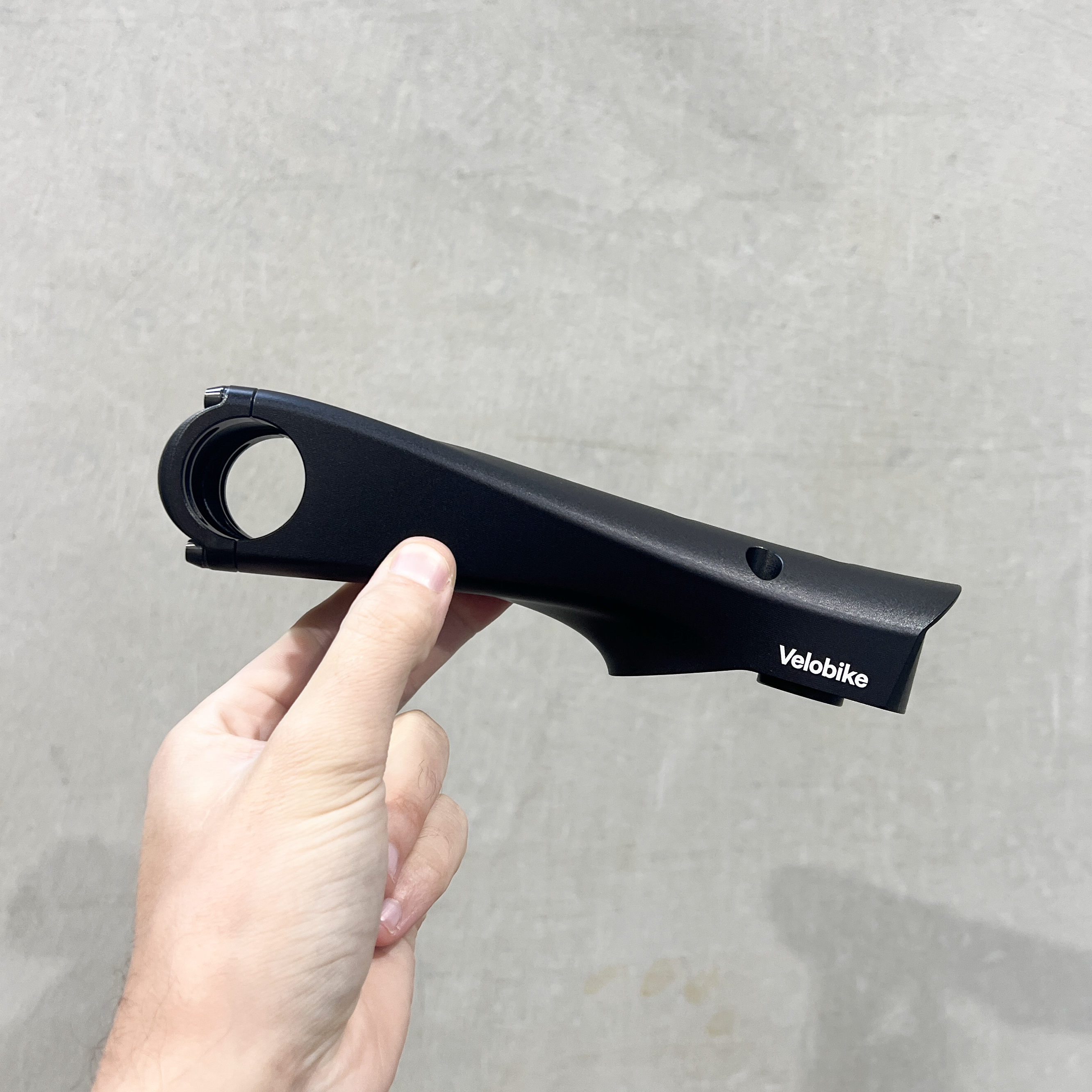

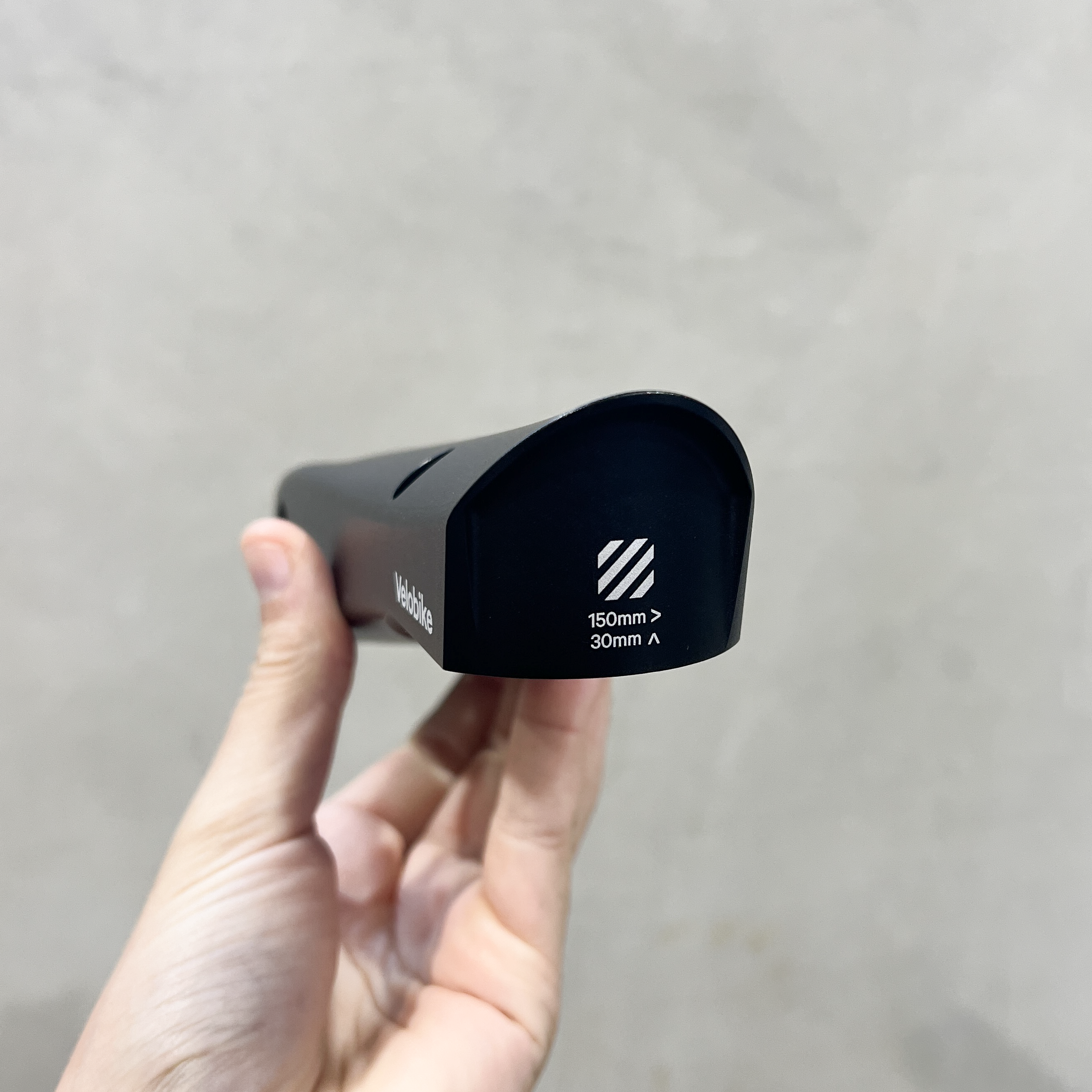

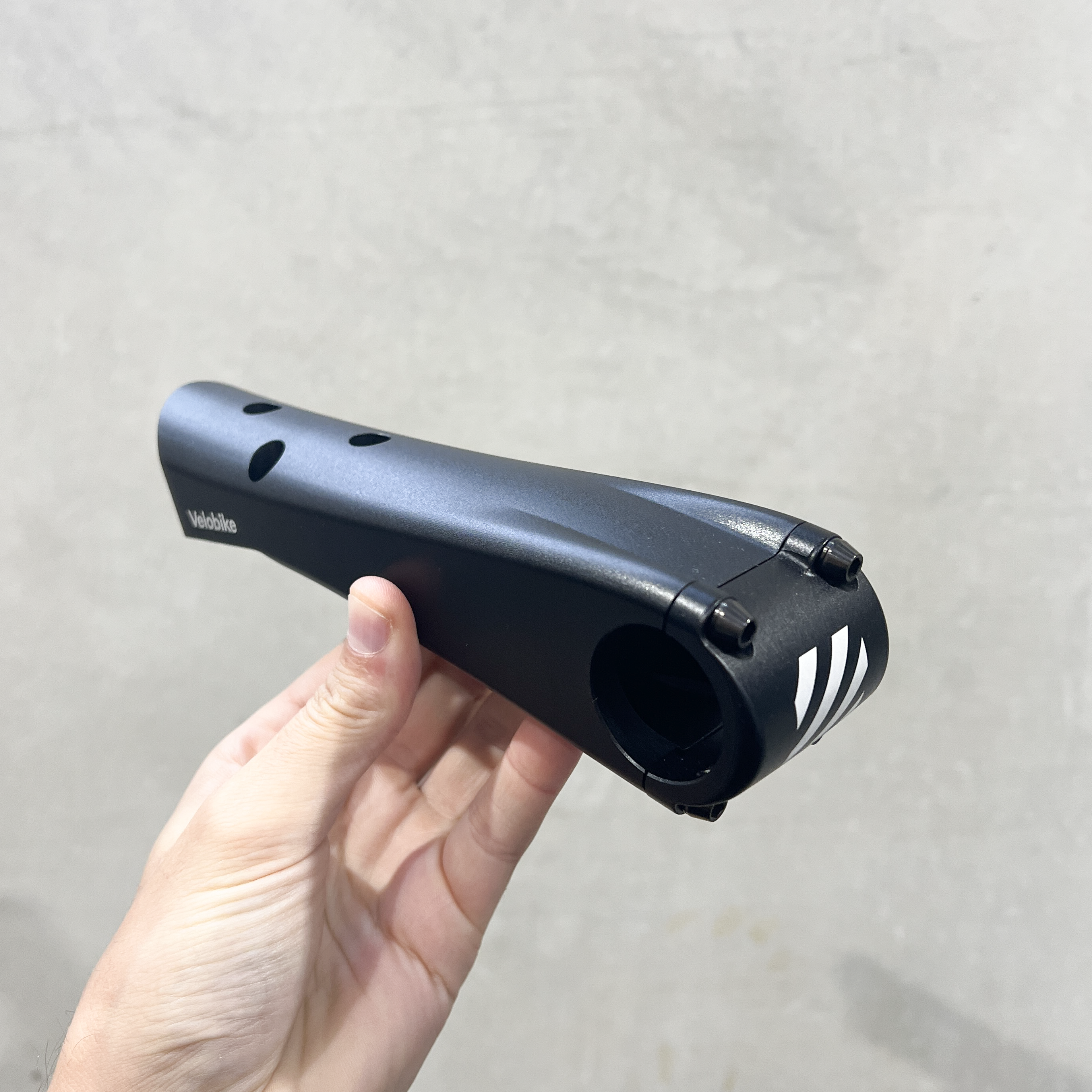

• 1x Stem (of selected size)
• 1x Faceplate

• 4x Faceplate screws

Optional Extras:

• Direct mount screws
• Stem spacer sets
• Replacement faceplate screws
• Altias Sprint Handlebar
• Altias Handlebar Integrated Faceplate
