Altias Fusion Frameset | Olympic-Spec Track Cycling Frame

Altias Fusion

The next generation of Olympic-level performance

$12,000.00

✓ Price Includes GST
✓ Free Shipping
✓ UCI Approved
✓ 2 Year Warranty

Pickup available at Cambridge, New Zealand

Usually ready in 24 hours

The Altias Fusion Frameset is an Olympic-spec track frame engineered for strength, stiffness, and aerodynamics. Wind tunnel validation shows a saving of up to 24W over comparable Olympic-tier framesets. Enhanced with a system-led development philosophy, the Fusion is the centre of a performance optimisation package, yet still allows for universal component integration.

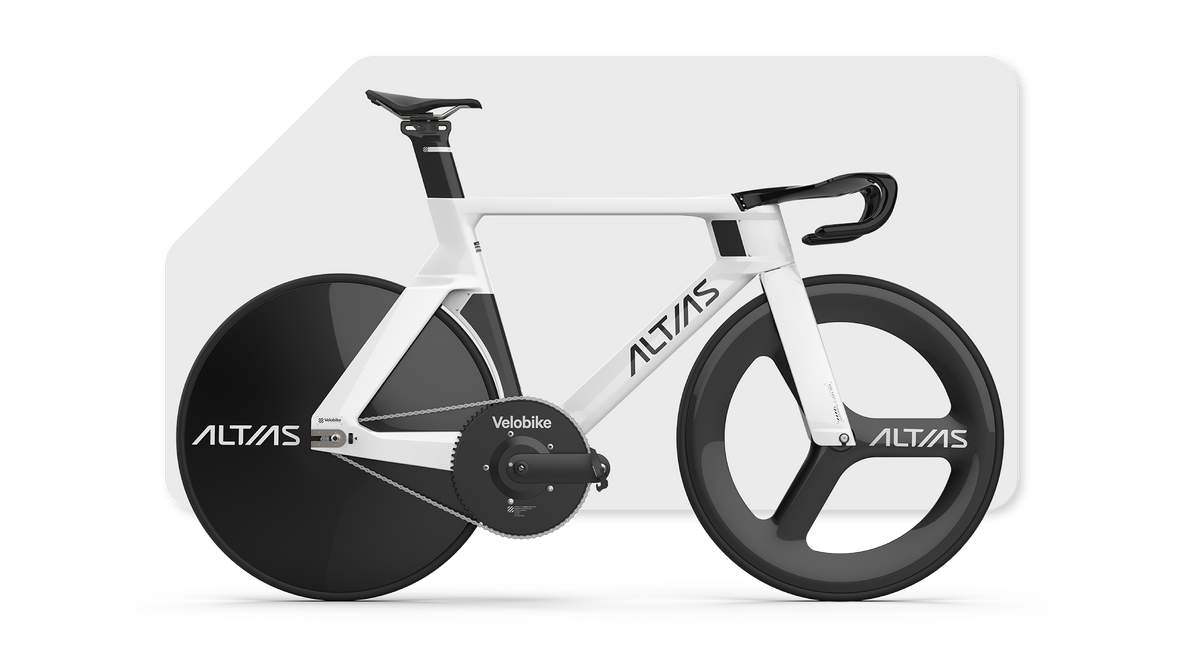

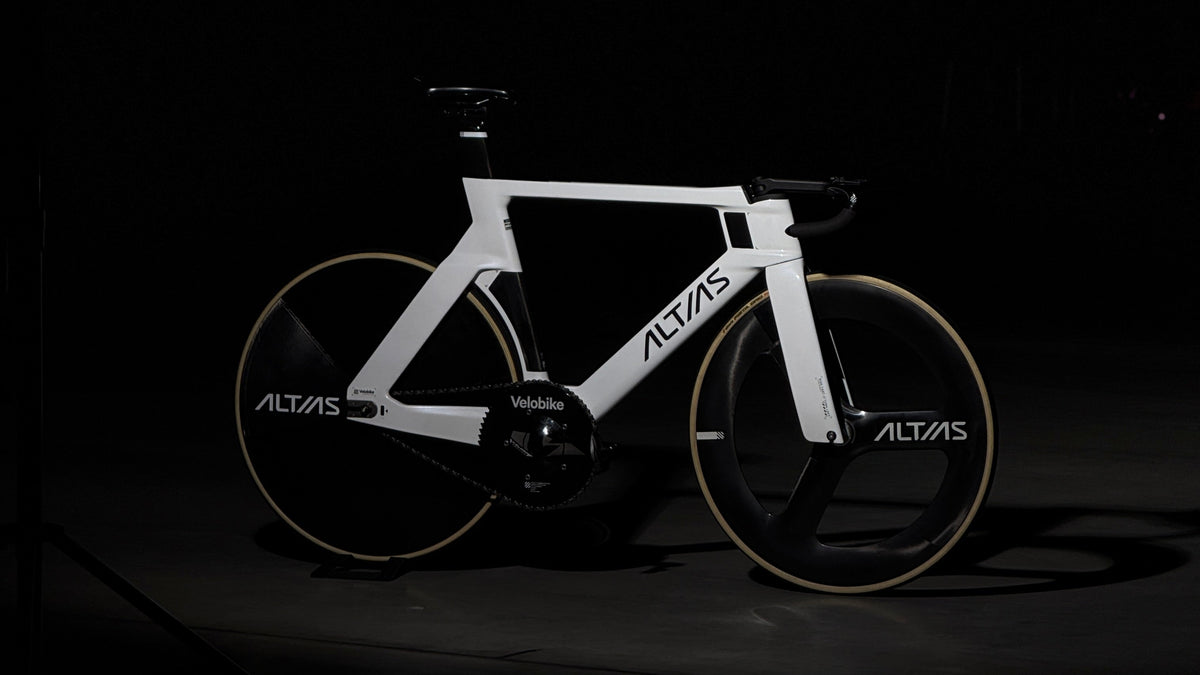

A white and black Altis time trial bicycle with disc wheels, shown in a clean studio-style presentation on a white background with a light gray shadow.

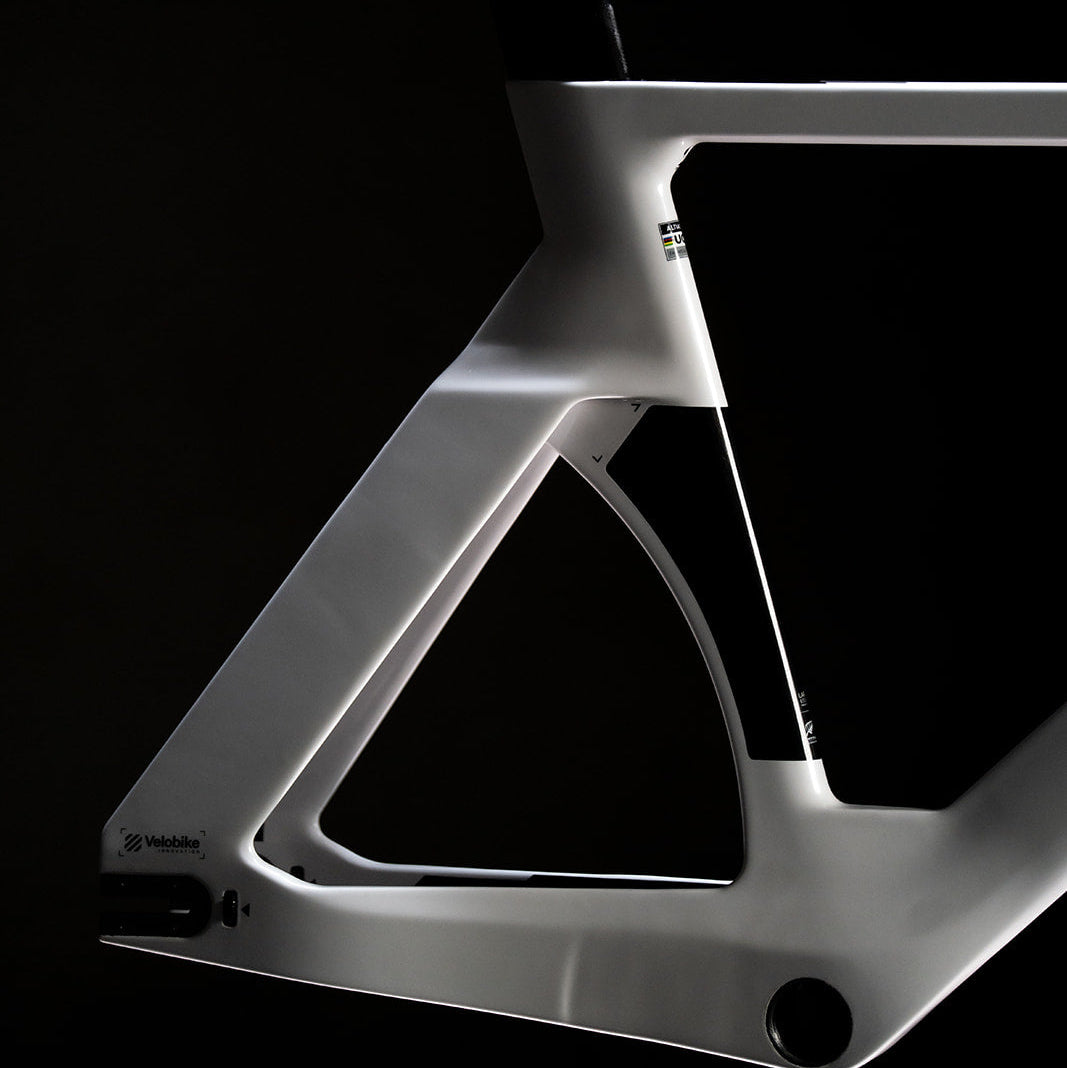

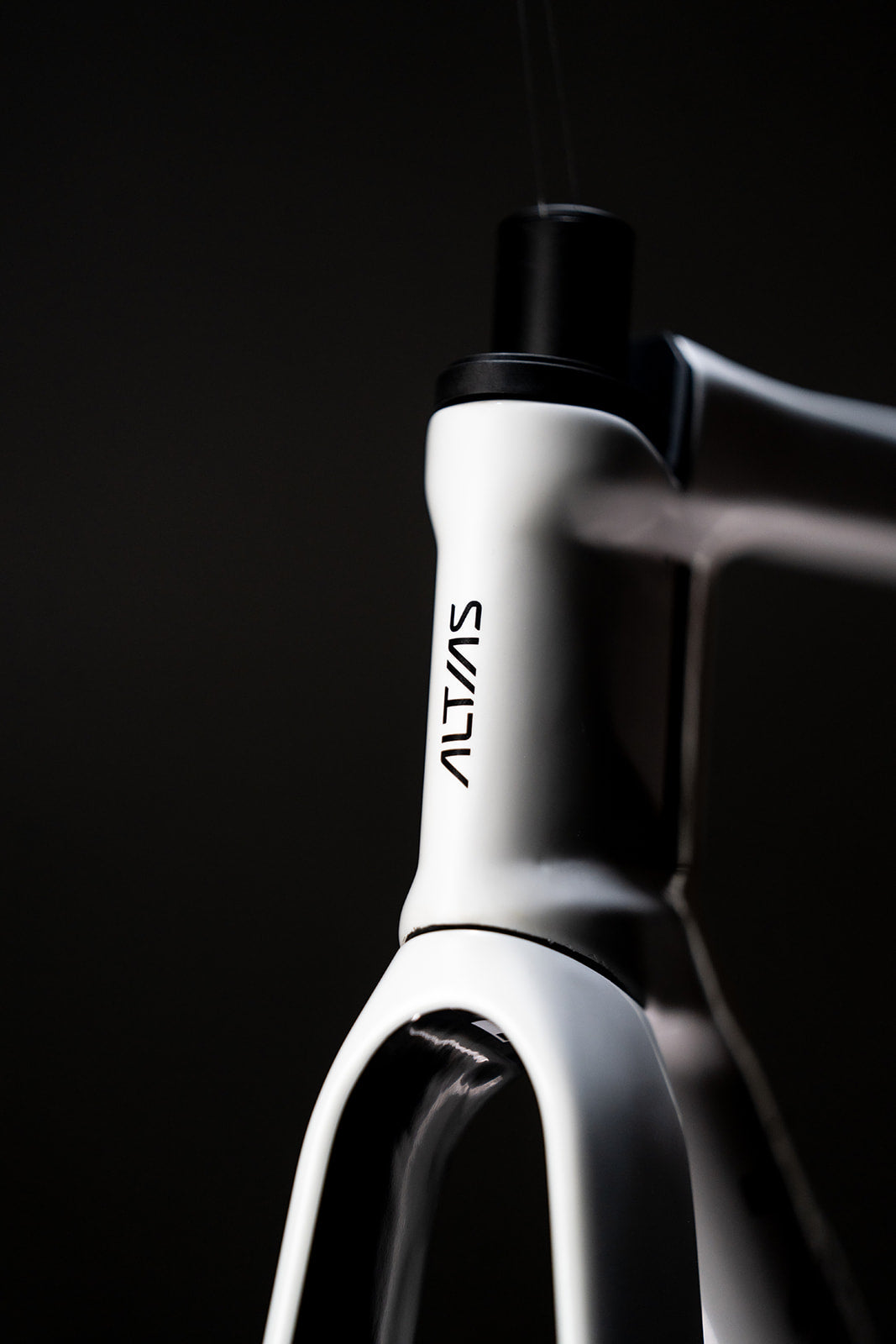

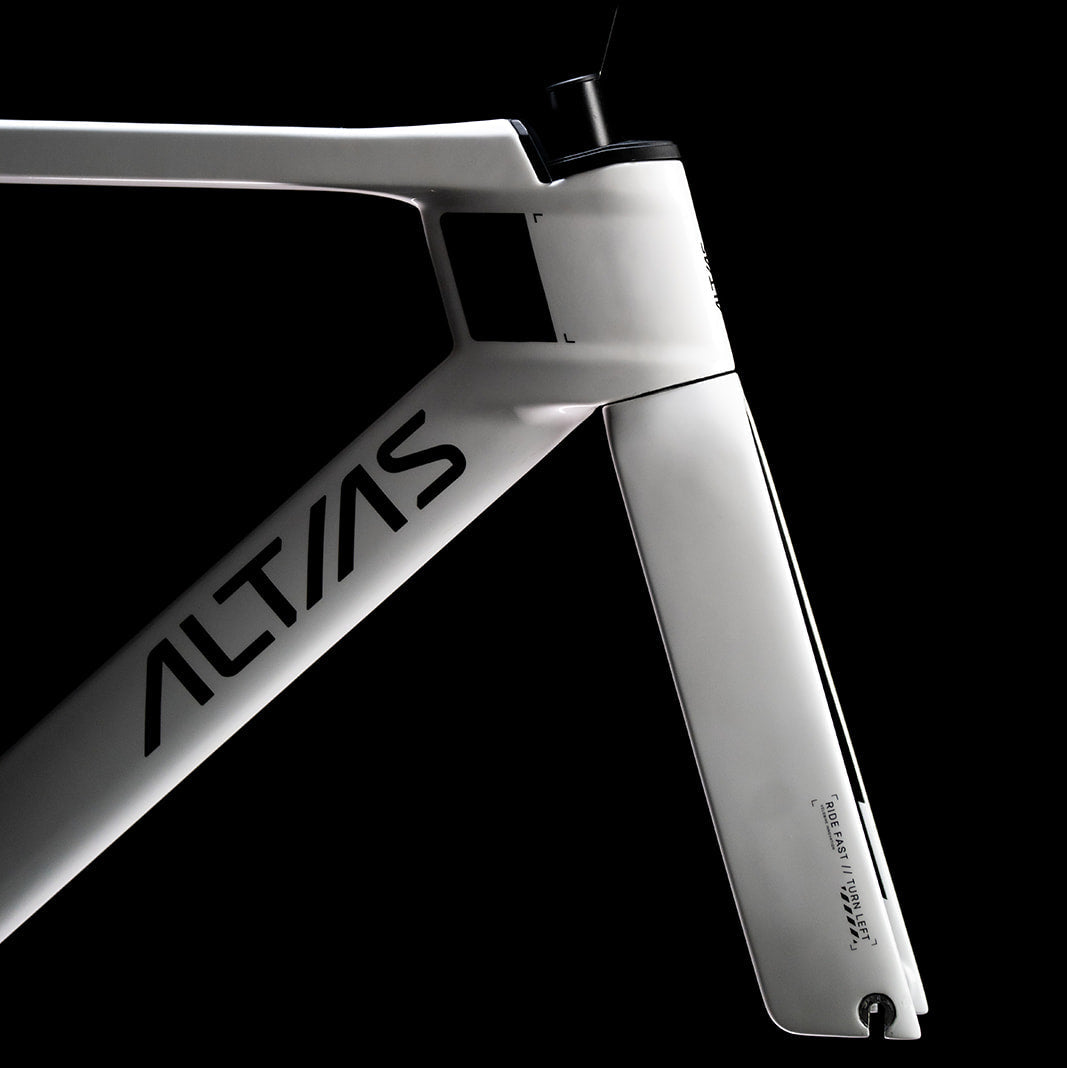

A close-up studio shot of a white carbon fiber bicycle frame against a solid black background, highlighting its sleek aerodynamic design and matte finish.

Engineered for Speed

Altias Fusion is engineered for Olympic-level speed. Wind-tunnel validation shows up to 24W less power required than comparable Olympic-tier framesets for a 9.5s flying 200m time trial. The frame is built around peak forces measured from Olympic-level sprint data. The stiffness is tuned to resist the deflection during gate starts, accelerations, and high-speed efforts, holding a line at 70+ km/h. An optimised carbon layup removes non-working material and aligns key fibres to load paths, delivering a responsive feel without the dead, over-built sensation.

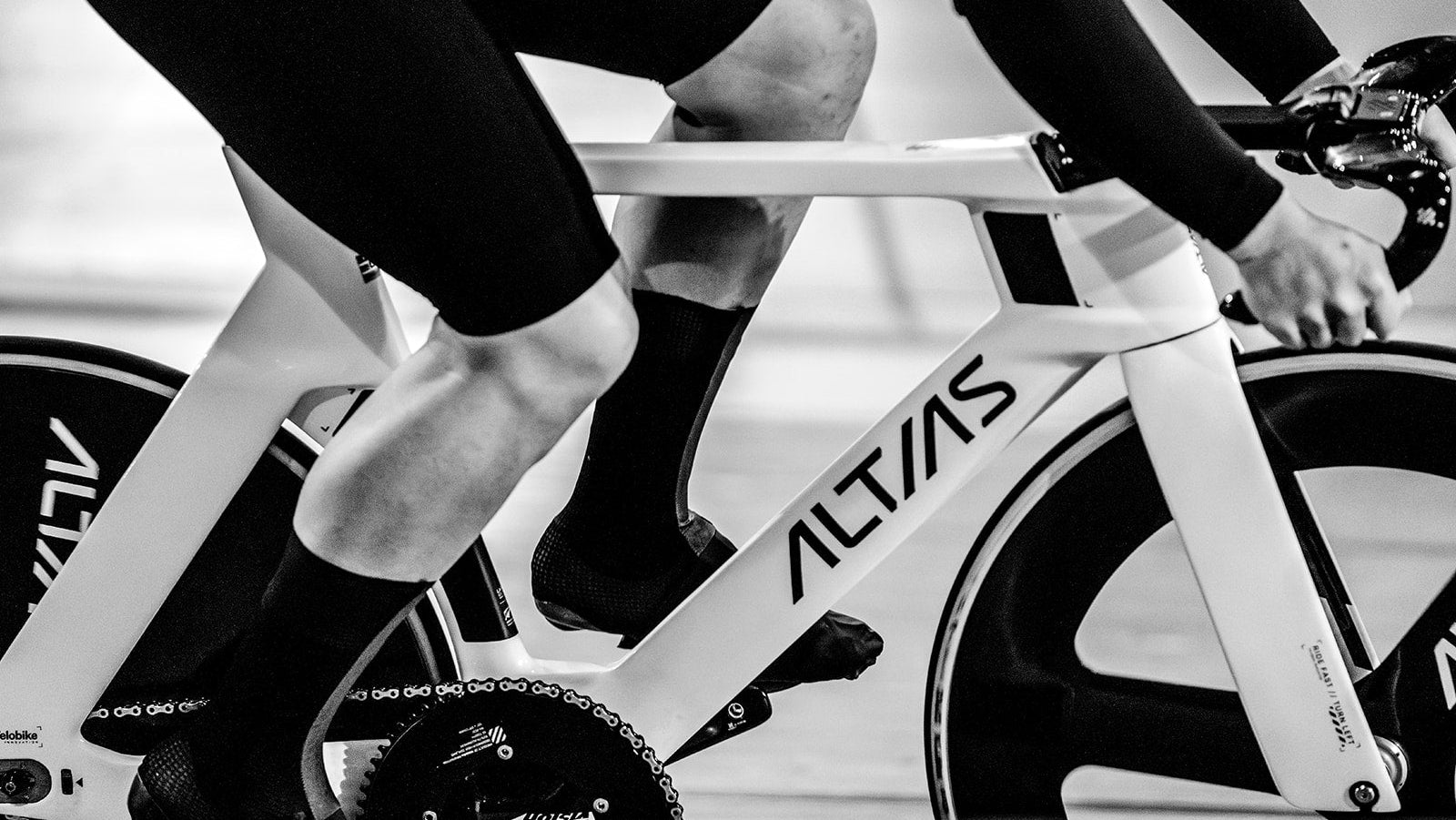

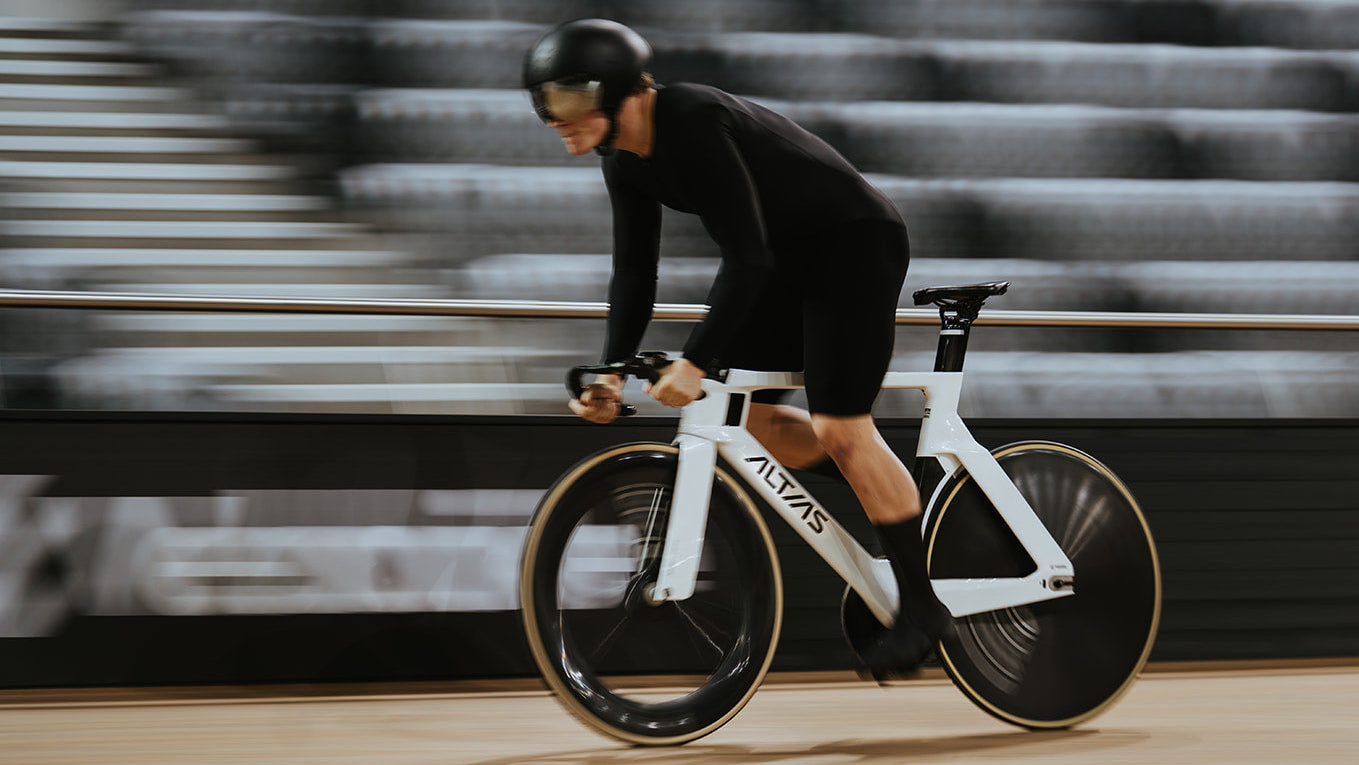

A cyclist in a black outfit rides a white and black Alzans track bicycle on an indoor velodrome track with blurred stadium seating in the background.

Innovative Geometry

The Altias Fusion treats the rider as part of the bike, not just sitting on top. Its long, low sprint stance delivers 'railed' high-speed characteristics and precise control for line changes in the bunch.

Sizes L and XL push out towards UCI reach limits for a long position, while S and M keep the same sprint posture through proportionate stack and reach. A lower bottom bracket, built around modern shorter cranks, drops the centre of mass and reduces frontal area.

Universal and Future-Proofed

The Altias Fusion is built to slot into your programme today to continue improving tomorrow. A 1⅛″ steerer accepts any standard stem, the T47 bottom bracket fits widely available cranksets. Front and rear dropouts allow any standard wheels to bolt straight on.

The full Altias system unlocks the greatest gains. A frame-fork interface with deliberate design features future upgradeable setups. The frame stays constant, you tune the front end and components for athlete or event specific optimisation. Backed by Velobike Innovation's ongoing collaboration with national teams and Olympic athletes, the platform stays current through the Olympic cycle and beyond.

The Fusion Frameset shows a consistent advantage over comparable Olympic-tier sprint framesets from the previous Olympic cycle.

We ran a series of tests across a spectrium of race speeds. Swapping framesets while maintaining the same components and rider geometry and fit as closely as possible

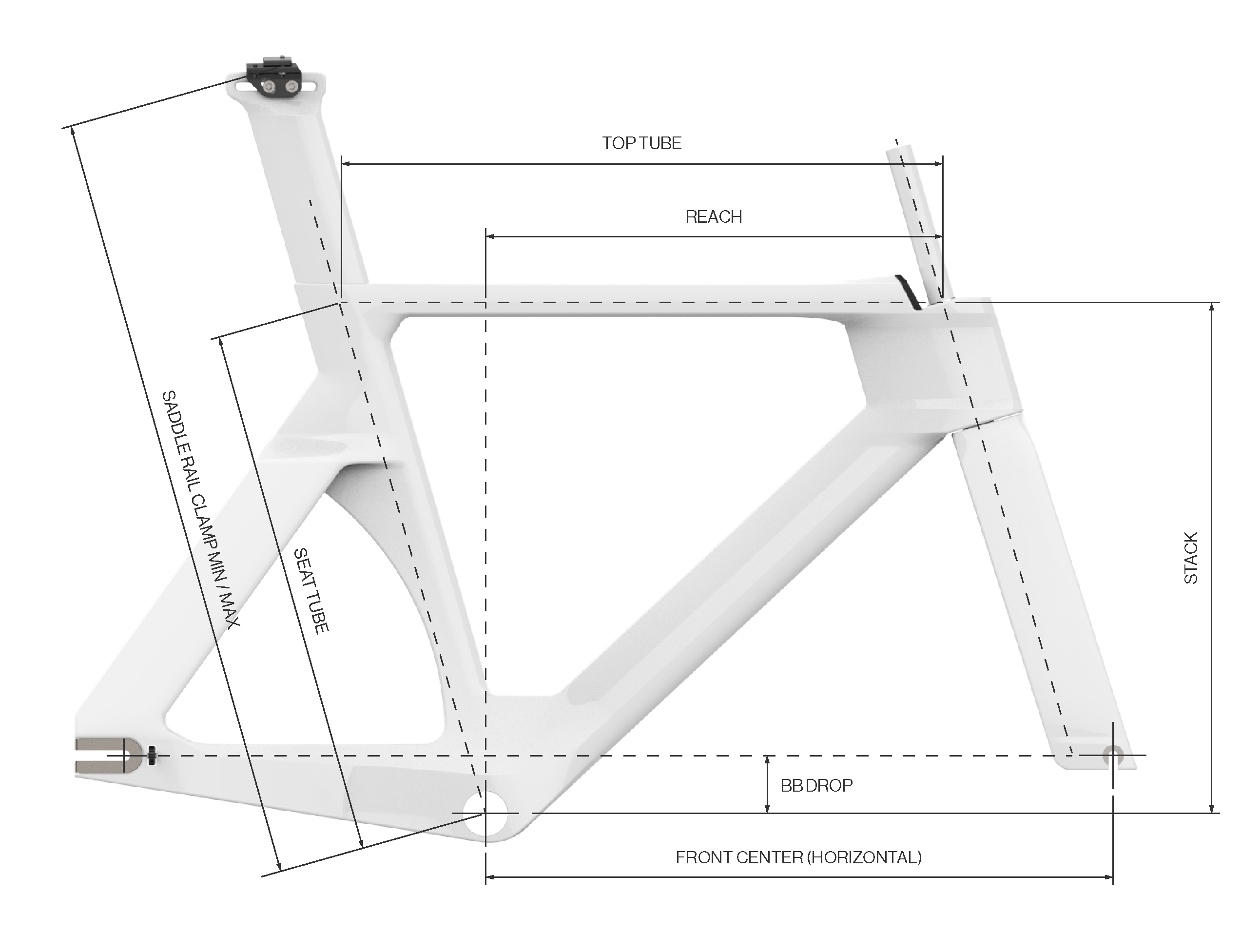

A white bicycle frame schematic diagram with measurement labels including top tube length, reach, stack, seat tube angle, and front center horizontal, shown on a light gray background.

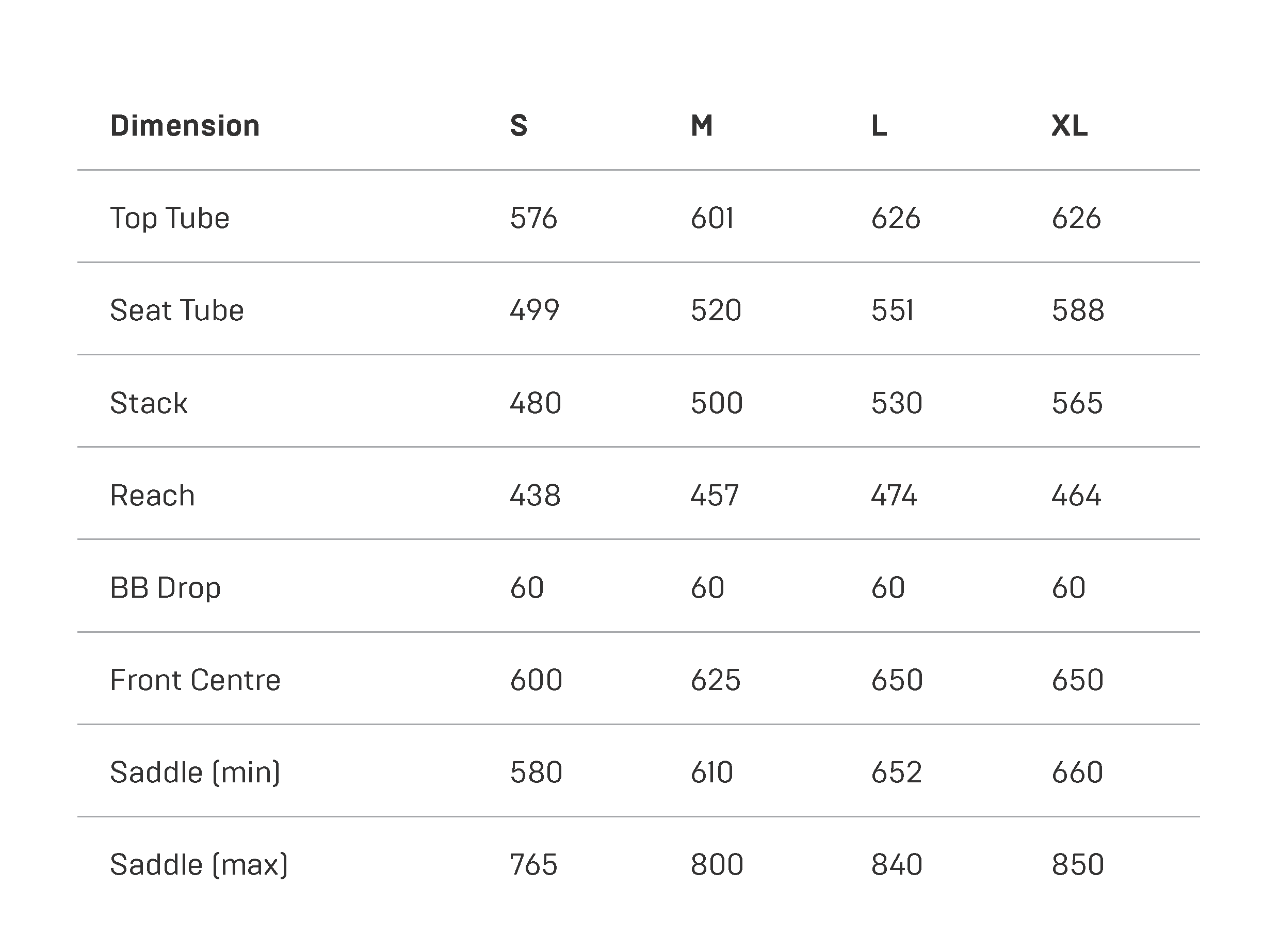

Frame Specifications

Material: Toray M40J / T1100 Composites
Weight: 2200g (Uncut fork & seatpost)
Dicipline: Sprint, Mass Start, Pursuit
UCI Homologation: Yes

Component Compatibility

Steerer Tube Diameter: 1 1/8" (1.125")
Bottom Bracket: T47x68mm
Max Chainring: 70t (42mm Chainline)
Saddle Rails: 7x7mm / 7x9mm

Wheel Compatibility

Front Axle: M9x100mm (Bolt-on)
Rear Axle: M10x120mm (Bolt-on)
Max Tyre Size: 700x25c
Wheel Style: Lenticular / Flat / Spoked

Longboi Stem Calculator

Frame size:

Maximum UCI legal handlebar reach: 700 mm

Handlebar:

Handlebar reach:

mm

Please enter a valid handlebar reach.

Handlebar drop:

mm

Please enter a valid handlebar drop.

Select a handlebar from the Velobike range, or choose Custom and enter the geometry yourself. Handlebar reach is measured to the leading edge, not the centre of the drop.

Bike fit

Total reach:

mm

Please enter a valid total reach.

Total reach is the horizontal distance from the bottom bracket to the leading edge of the handlebar.

Total grip height:

mm

Please enter a valid total grip height.

Total grip height is the vertical distance from the bottom bracket to the centre of the handlebar grip.

Recommended setup

Stem

Spacers

Reach

Height

UCI legal

No stem/spacer combinations fall within 10 mm of your target in both reach and height.

Results within ±10 mm are ranked by fit accuracy. Where fit is similar, fewer spacers are preferred. Fewer spacers generally improves stiffness.

Altias Fusion Handlebar Fit Calculator

Frame size:

Maximum UCI legal handlebar reach: 700 mm

Altias Fusion handlebar reach and stack measurement diagram

Target position

Handlebar Reach (X):

mm

Please enter a valid Handlebar Reach (X).

Handlebar Stack (Y):

mm

Please enter a valid Handlebar Stack (Y).

Recommended manufactured handlebar

Handlebar size	ΔReach	ΔHeight	UCI legal

UCI legal · manufactured

UCI legal · not initially manufactured

Exceeds UCI reach · manufactured

Exceeds UCI reach · not initially manufactured

Reach and height differences are relative to your target position. Results are shown only when both reach and height are within 20 mm of your target. Recommendations prioritise currently manufactured sizes.

A 3D printable jig designed to assist in trimming the seatpost on the Altias Fusion frameset. This print locates on the aero profiled seatpost and is clampable into a vice to guide a straight, repeatable cut at the correct height. Print in PETG or similar for best durability.
