“Once you’ve used these, every other armrest feels like a concrete bench”

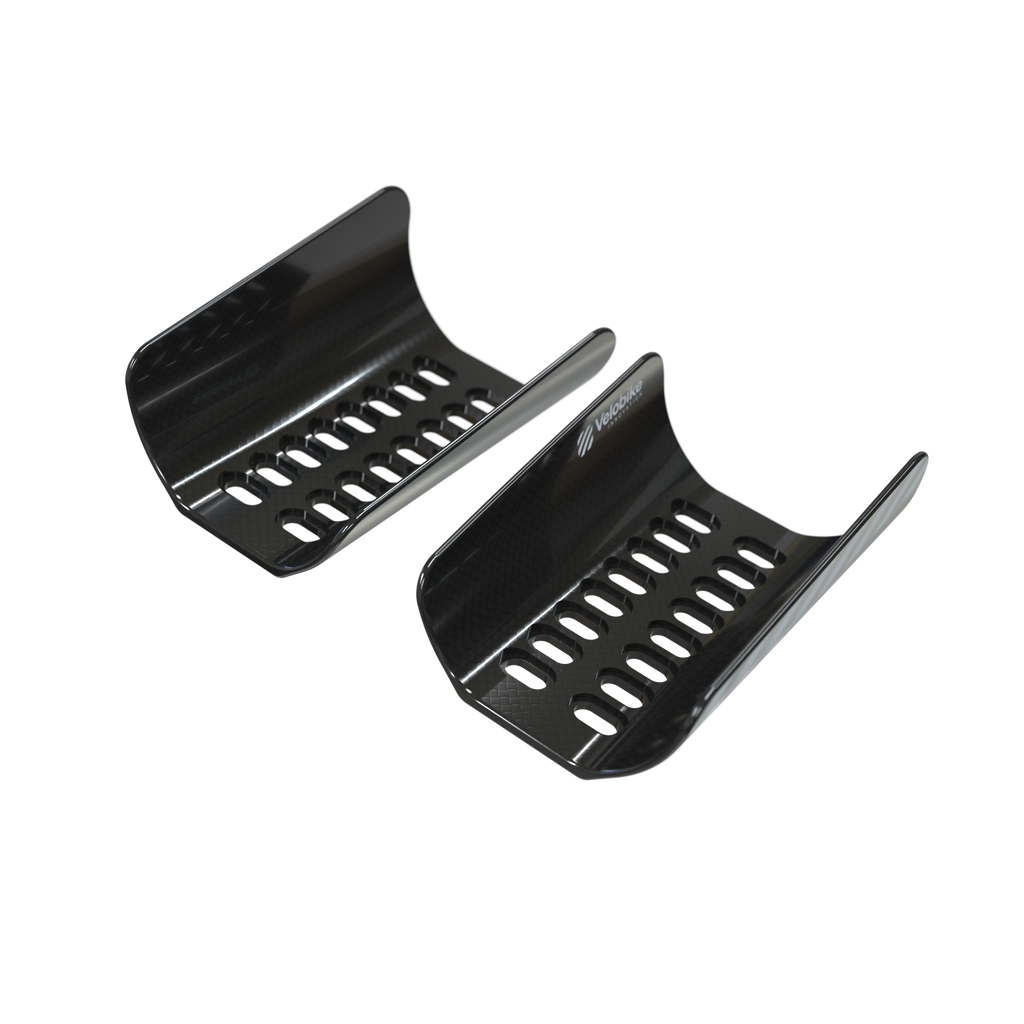

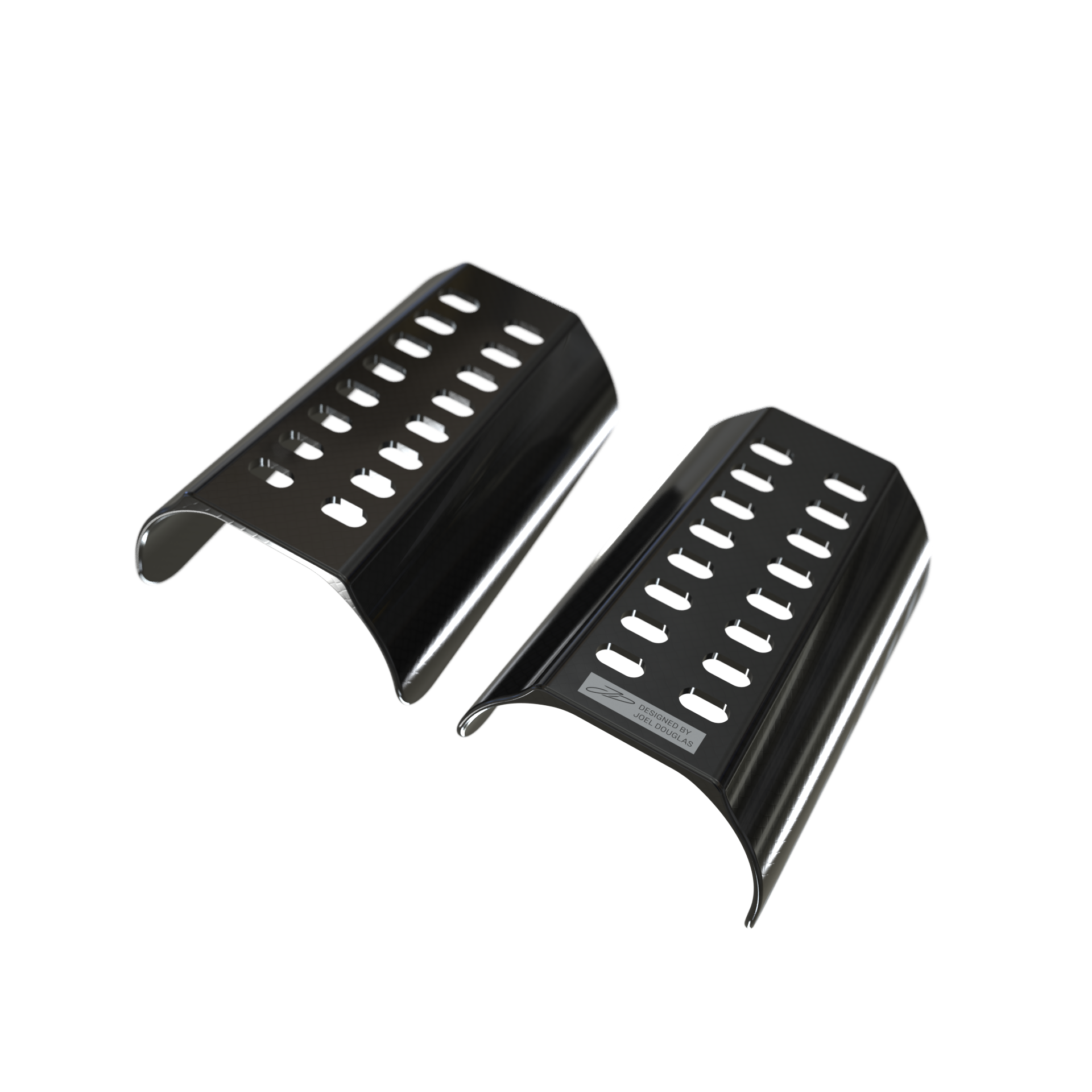

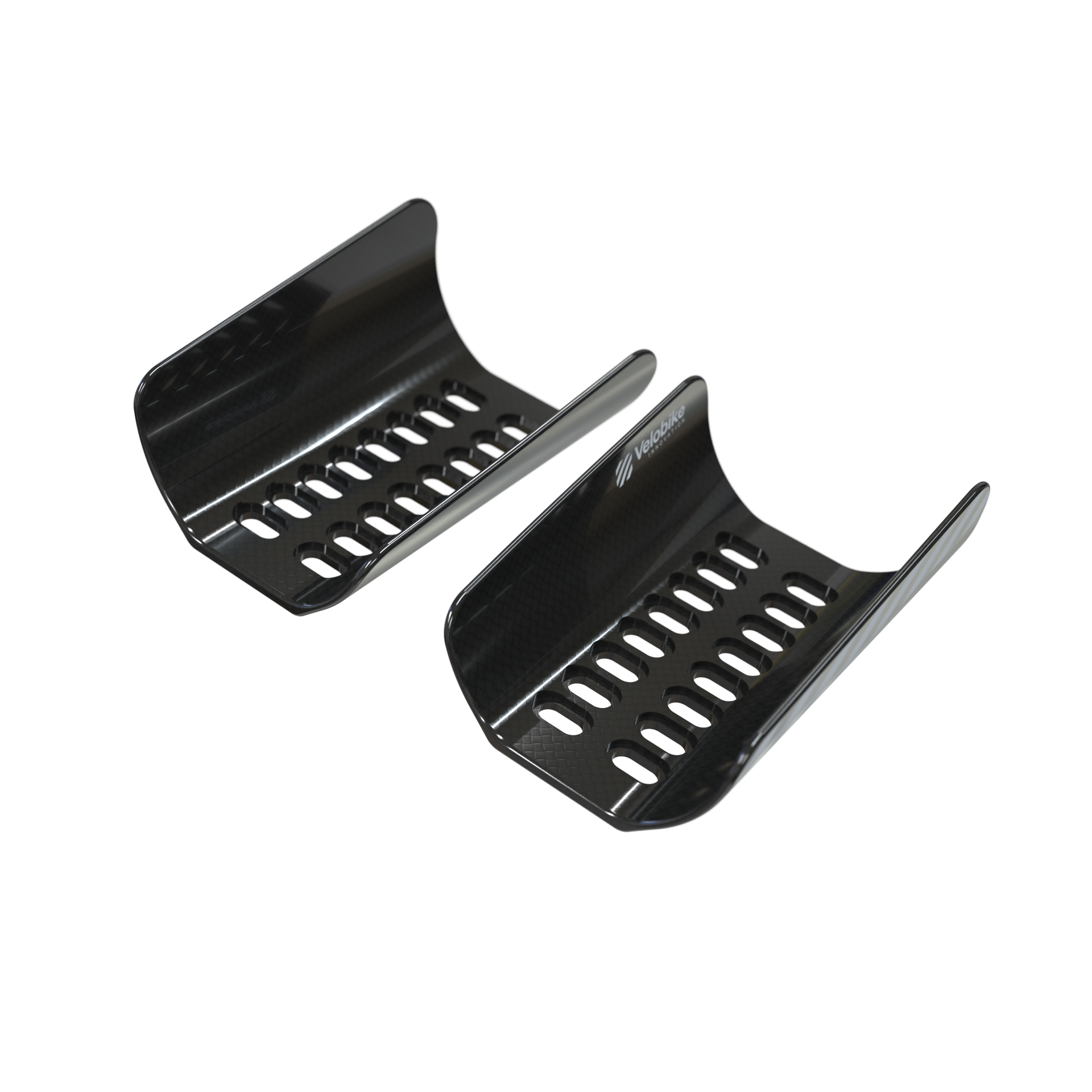

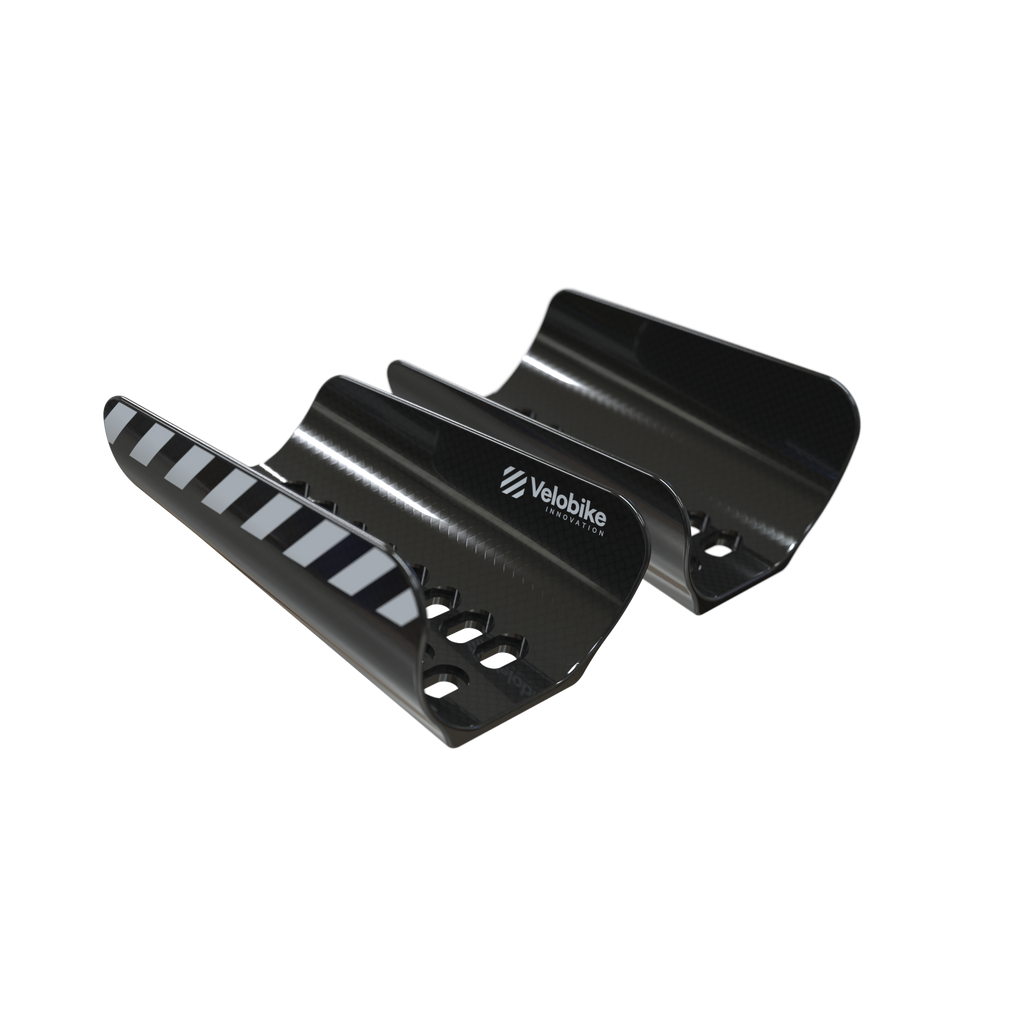

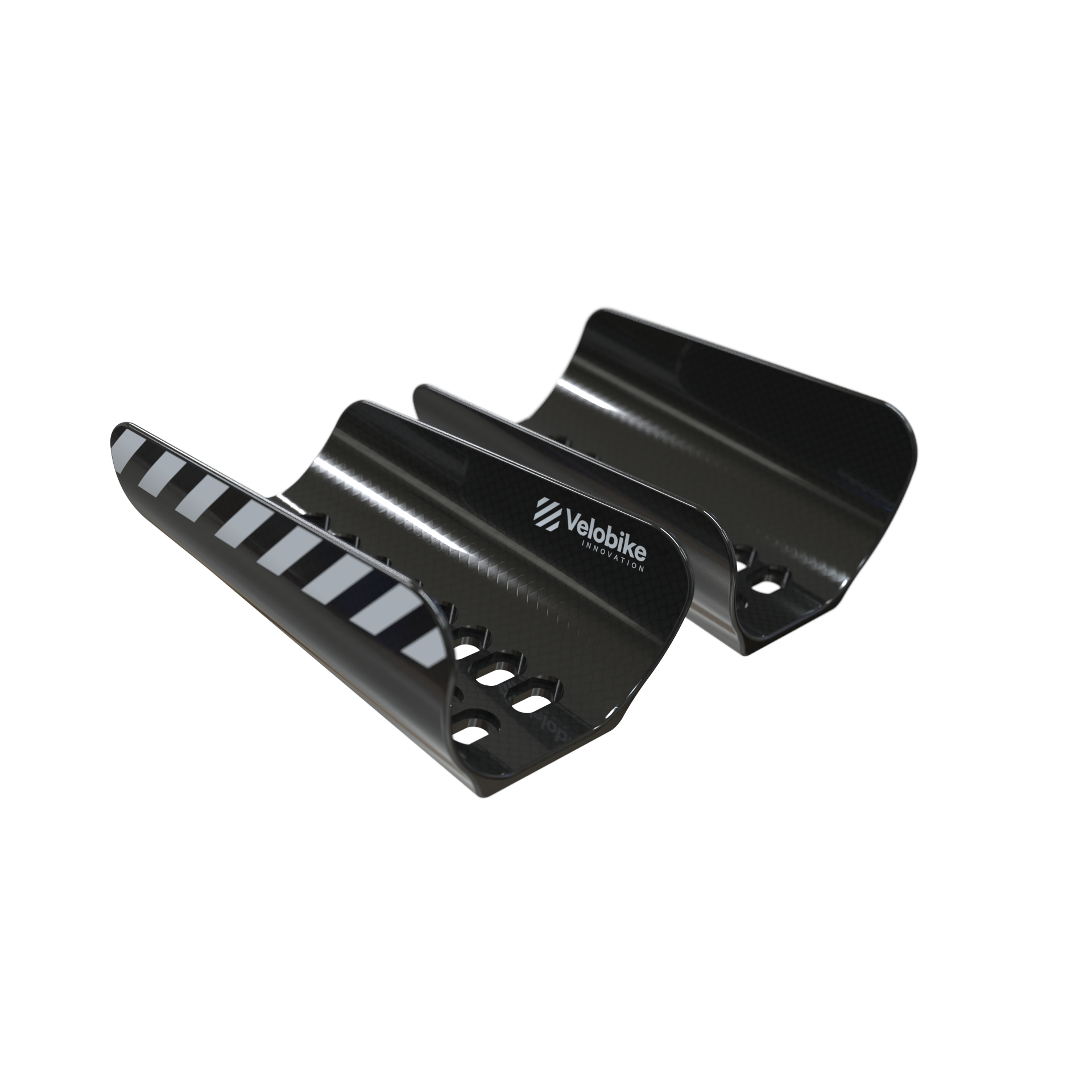

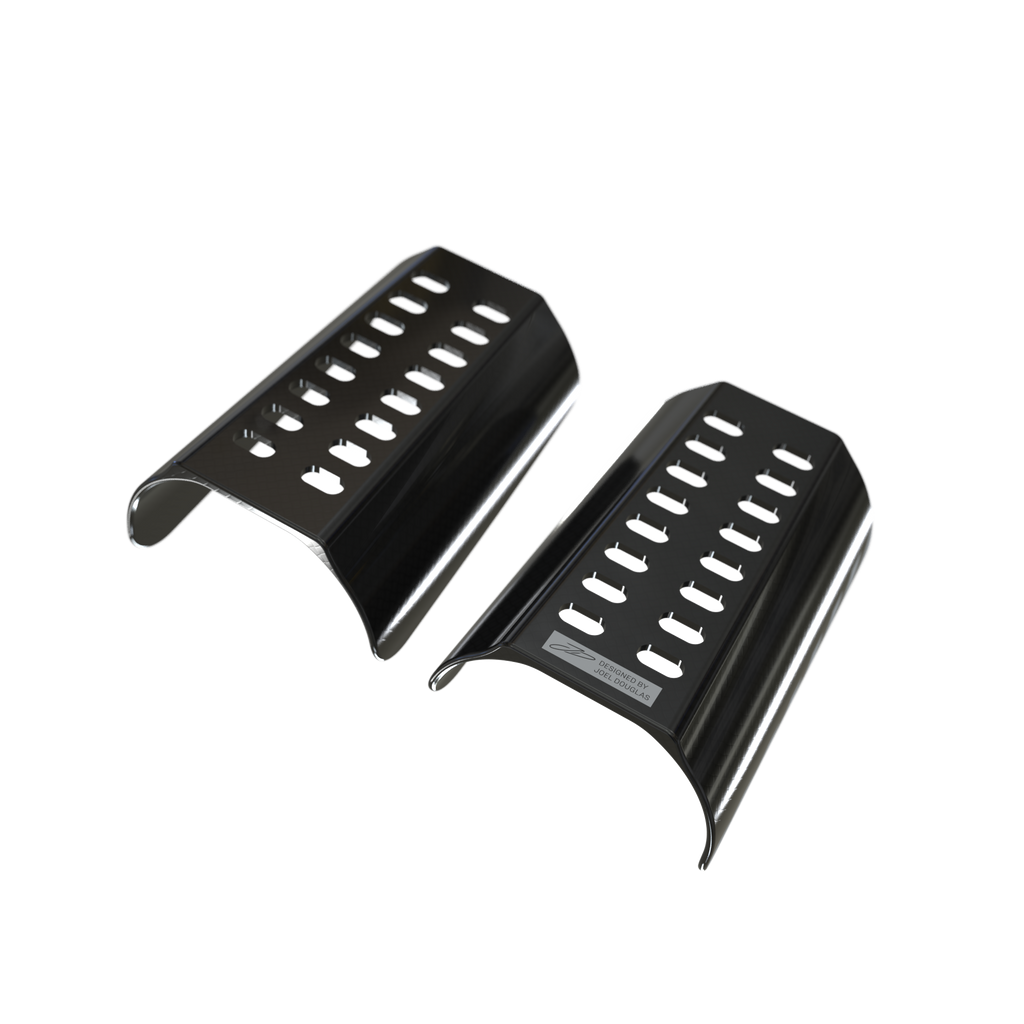

Engineered for the demands of elite time-trial, pursuit and track kilo athletes, the Velobike Innovation Aerobar Arm Rests provide exceptional adjustability, comfort, and compatibility - without compromising performance.

Designed to integrate seamlessly with the Velobike Adjustable Riser System, these arm rests also feature a universal mounting platform to suit a wide range of aerobar and time trial setups. These arm rests help fine-tune your position through:

  • Fore/aft and lateral adjustment via 16x slotted mounting holes
  • Angled in/out positioning to suit rider-specific bike fits
  • Ergonomic shaping for reduced system frontal area
  • Foam padding supplied (but not fitted) for optional support and comfort

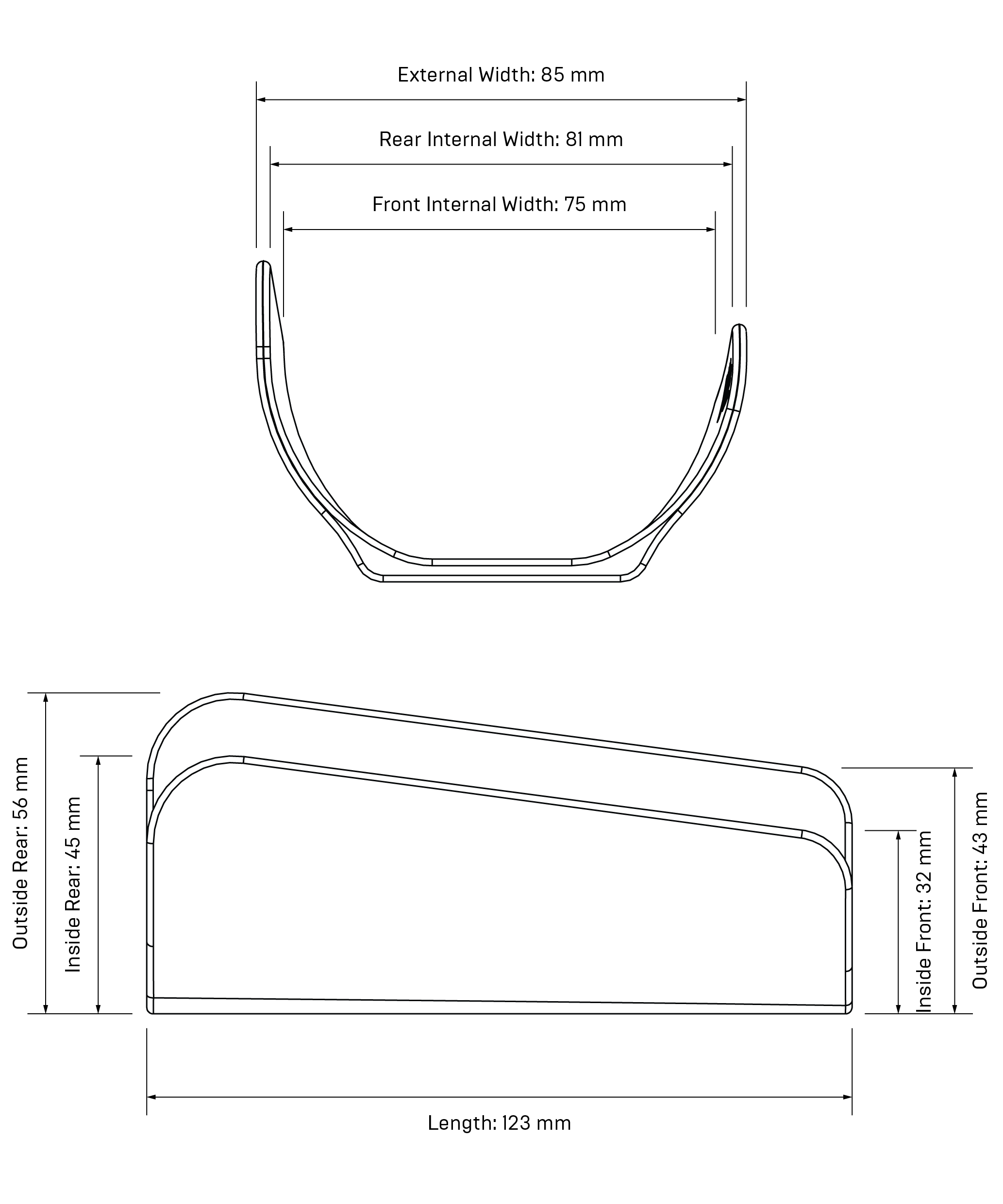

Product Geometry

Technical Specifications
Hole Spacing

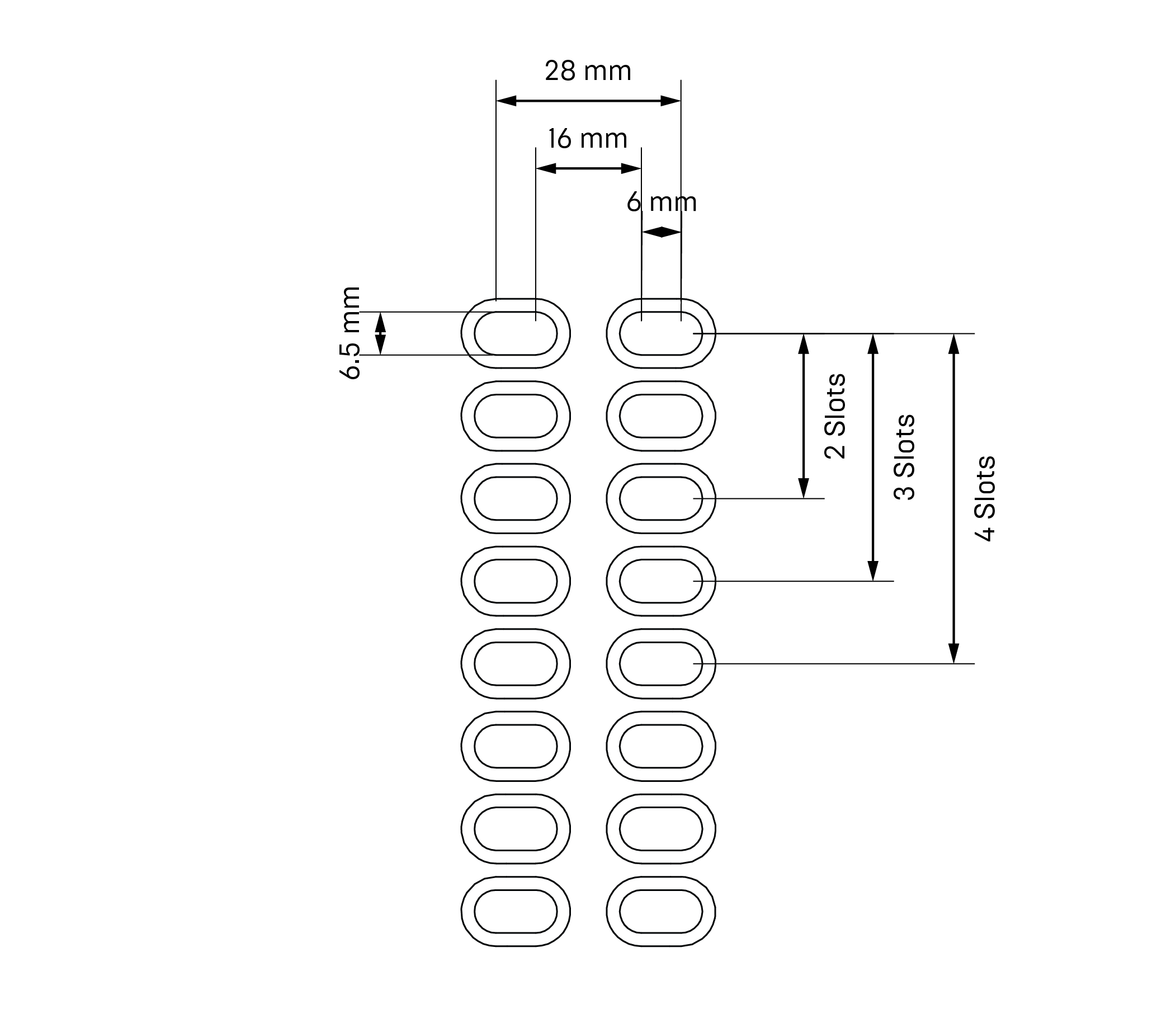

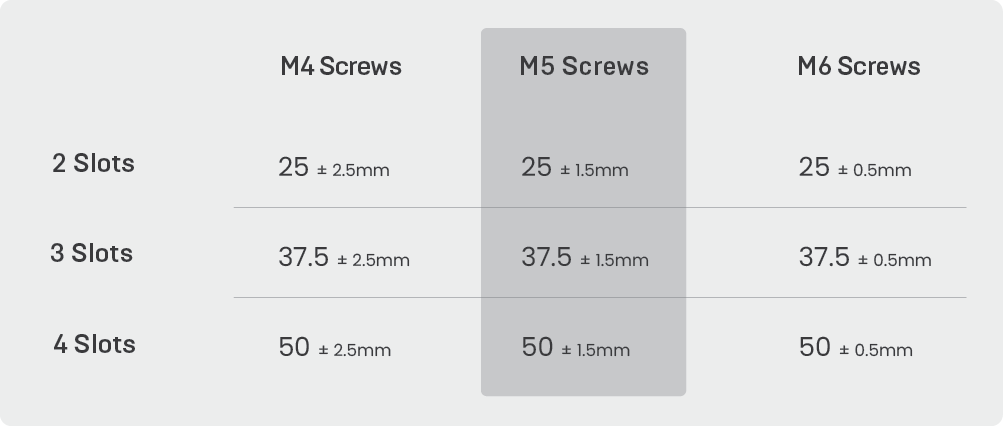

Each mounting slot is designed to accommodate a range of screw spacings. Here is a diagram explaining this. Then this table will help you work out compatibility.

For example, if your setup uses M5 screws spaced at 36 mm, our 3-slot pattern (centred at 37.5 mm ±1.5 mm) will provide suitable clearance. This allows for screw spacings between 36 mm and 39 mm to be compatible.

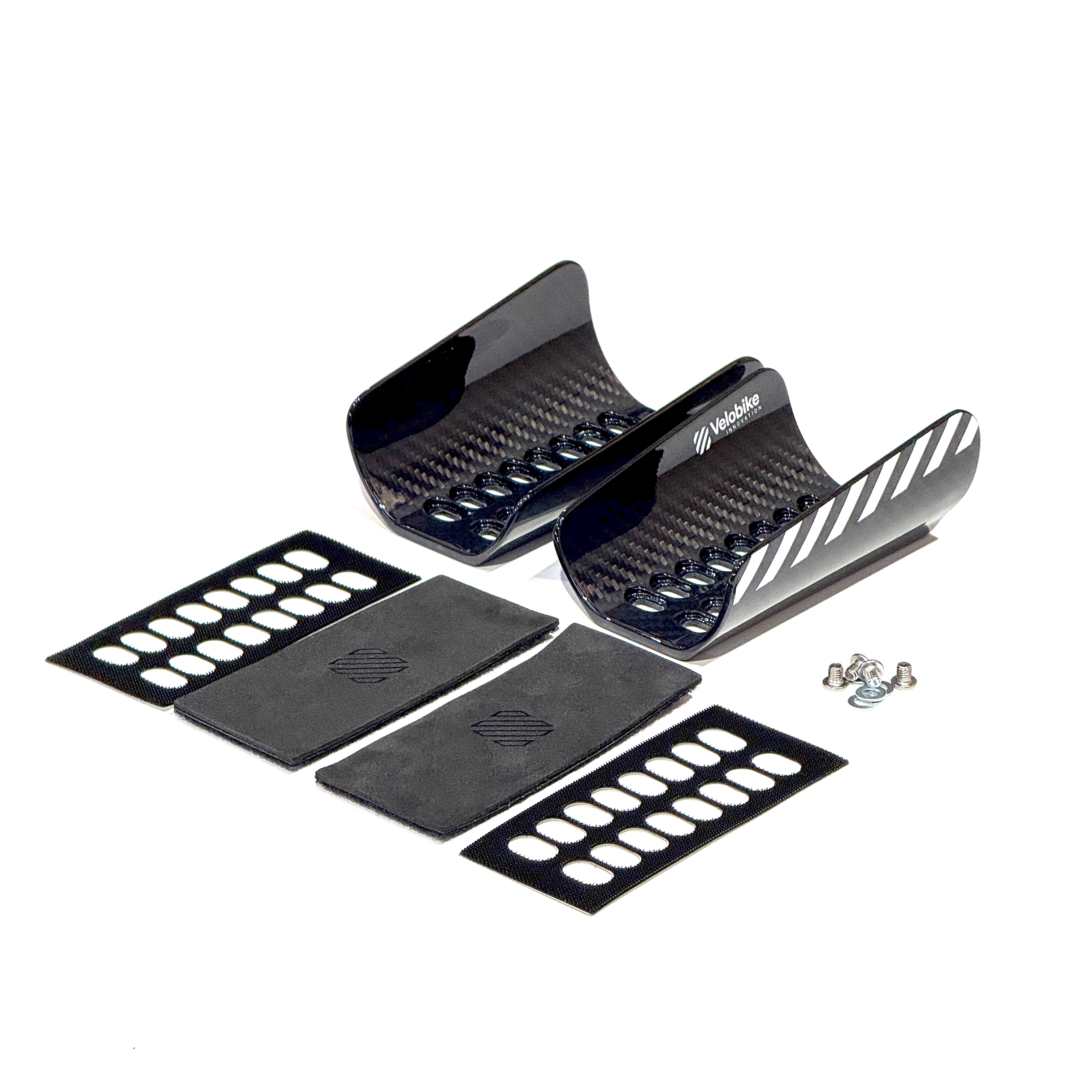

What's In The Box
  • 1x Pair of Arm Rests (Left & Right)

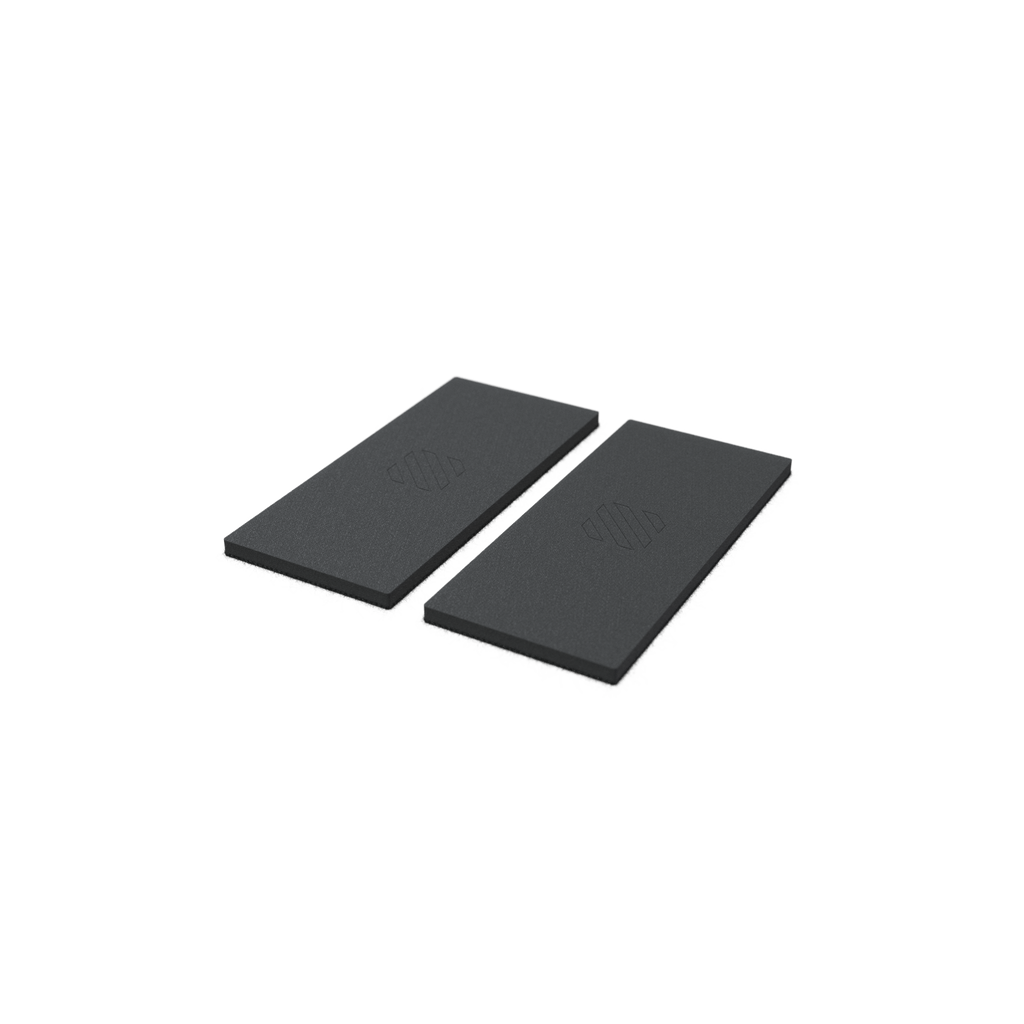

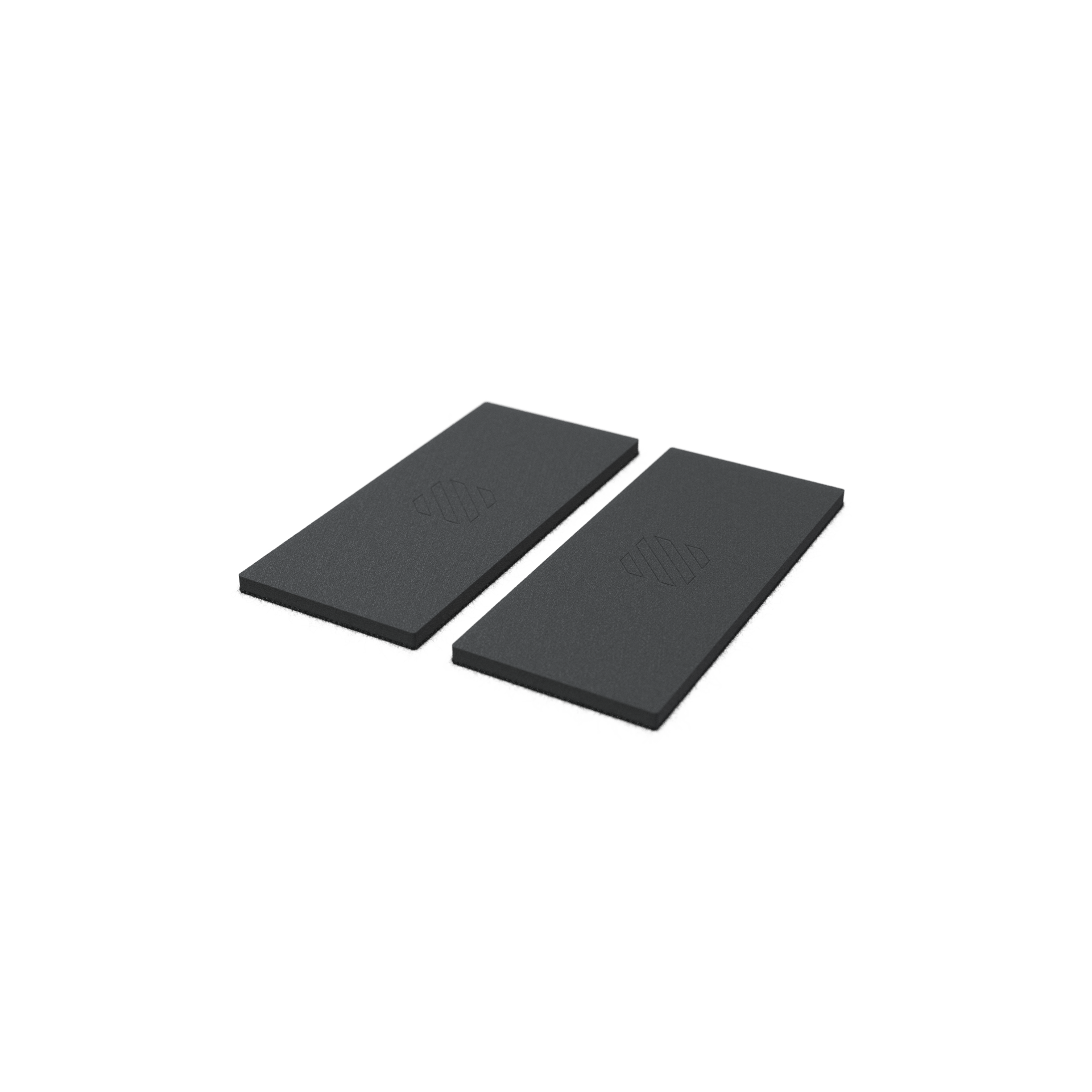

  • 2x Velcro Pads
  • 4x M5 Stainless Steel Mounting Screws
Installation Tips

For optimal security, we recommend using Loctite 243 on all fastenings.
