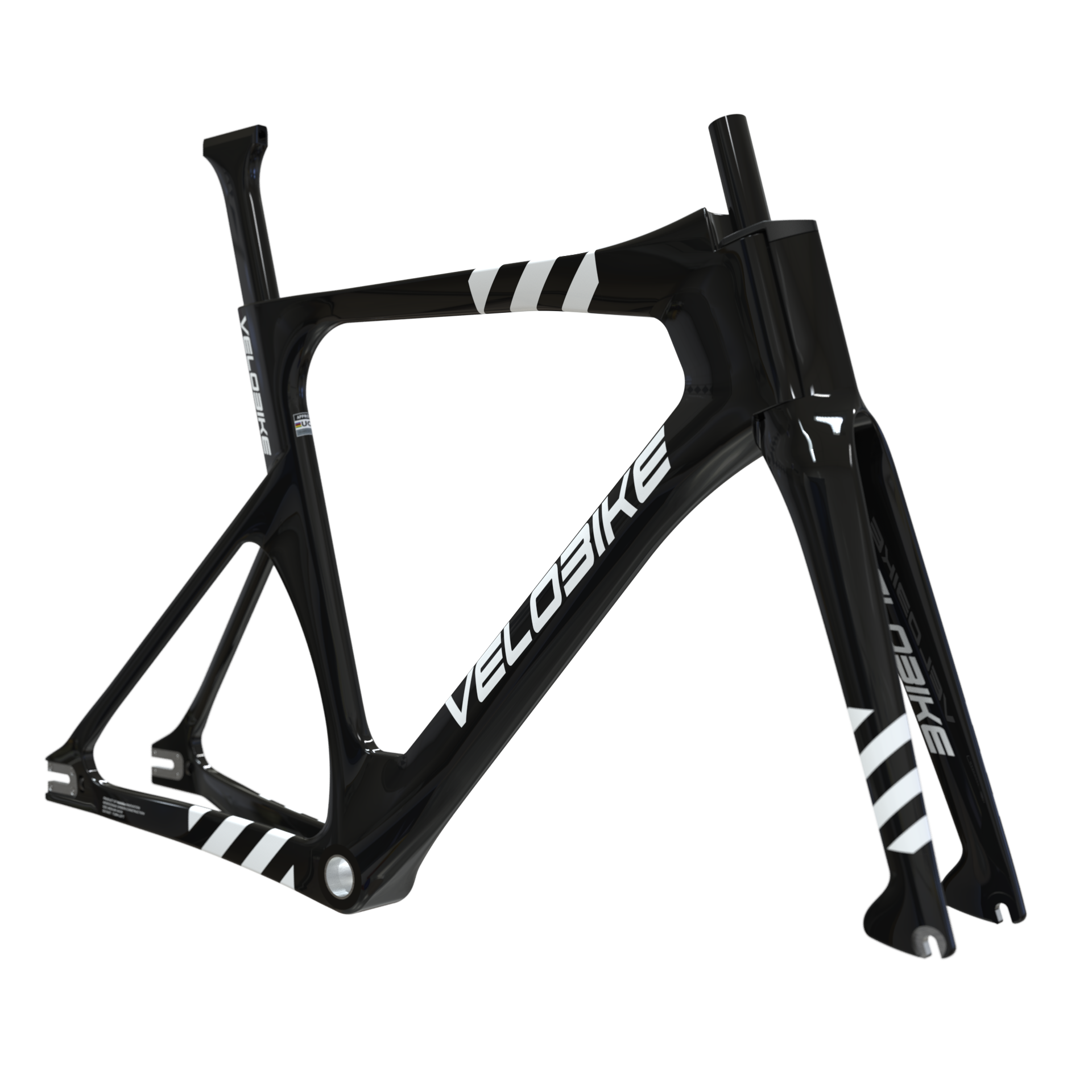

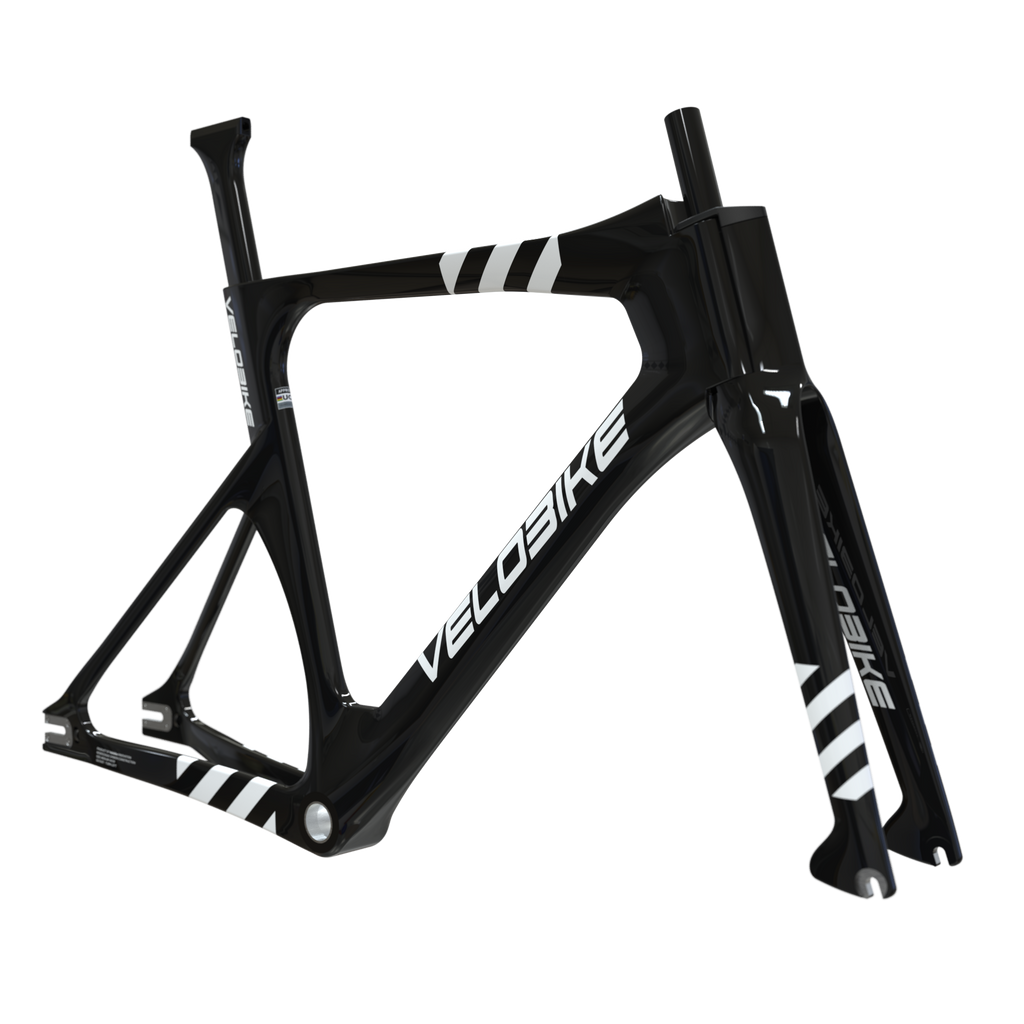

M2 Frameset

$2,970.00
Size

Allow up to 10 extra working days for your M2 Frameset to be dispatched.

Engineered for Speed

The Velobike M2 Frameset defines performance with its commitment to strength, stiffness, and aerodynamic efficiency. Crafted to slice through air with minimal resistance, its advanced monocoque composite structure guarantees an efficient power transfer directly from your pedals to the track, ensuring every unit of effort translates into speed.

Innovative Foundations

Drawing from the plans of a renowned open-mould frameset factory, Velobike's exclusive manufacturing rights for this frameset design allow us to fine tune the frames construction to suit our performance requirements of our audience. Our exclusive carbon layup of the open-mould design employs additional T1000 carbon strategically placed for maximum benefit, fortifying strength and stiffness where it matters most while trimming excess weight elsewhere from the baseline construction. This meticulous balance is the result of lab and real world testing against out specified test requirements.

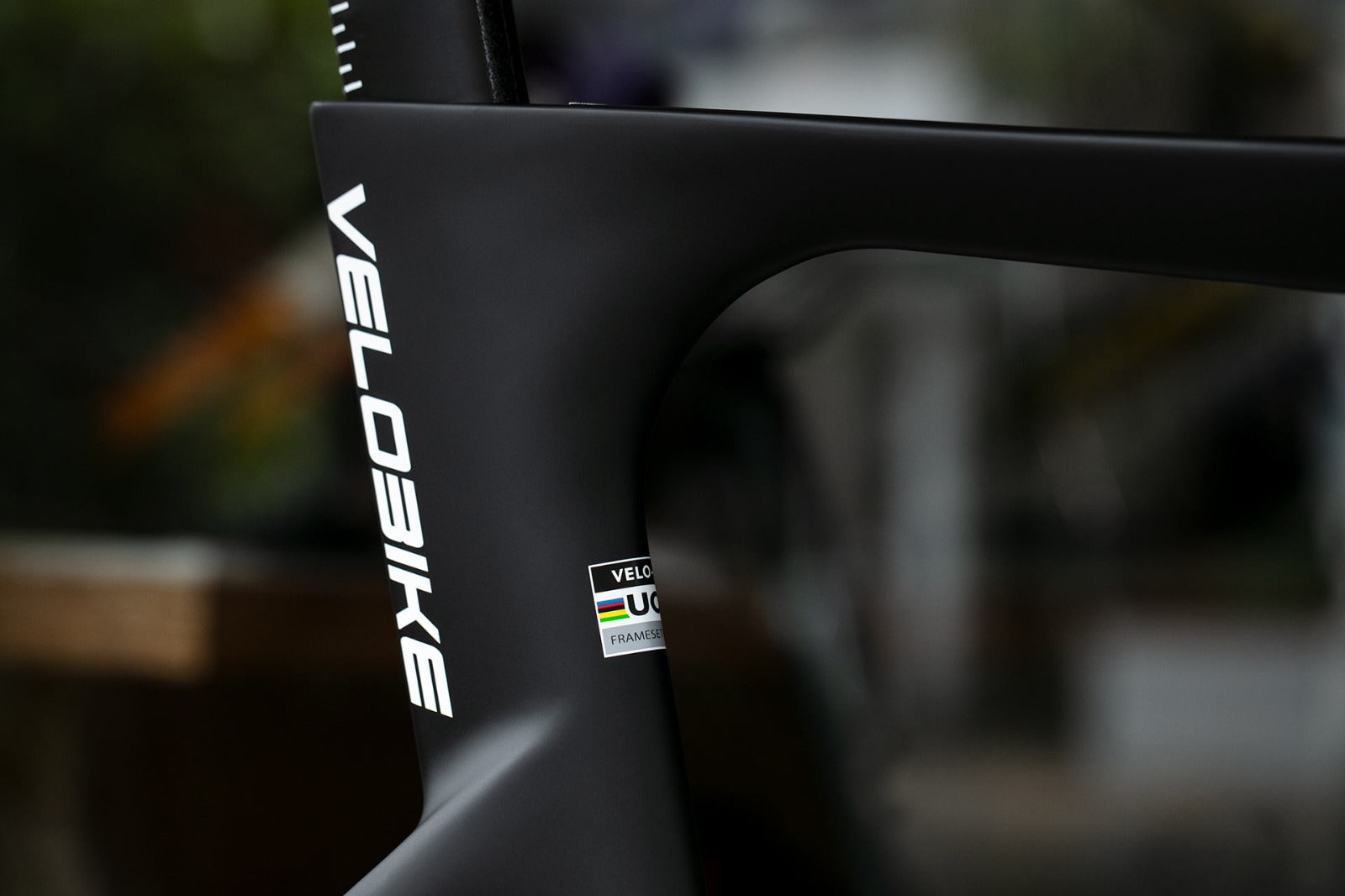

UCI Approved

We have taken the frameset (frame and fork) through the full ISO and UCI certification process to ensure safety and legality for competition use. Updates to the fork design were required from the original open-mould design to qualify for this approval.

Enhanced Compatibility & Safety

The 2022 overhaul of the front fork assembly broadens stem compatibility, significantly enhancing bike fit customisation and safety, a testament to our commitment to the athlete's performance.

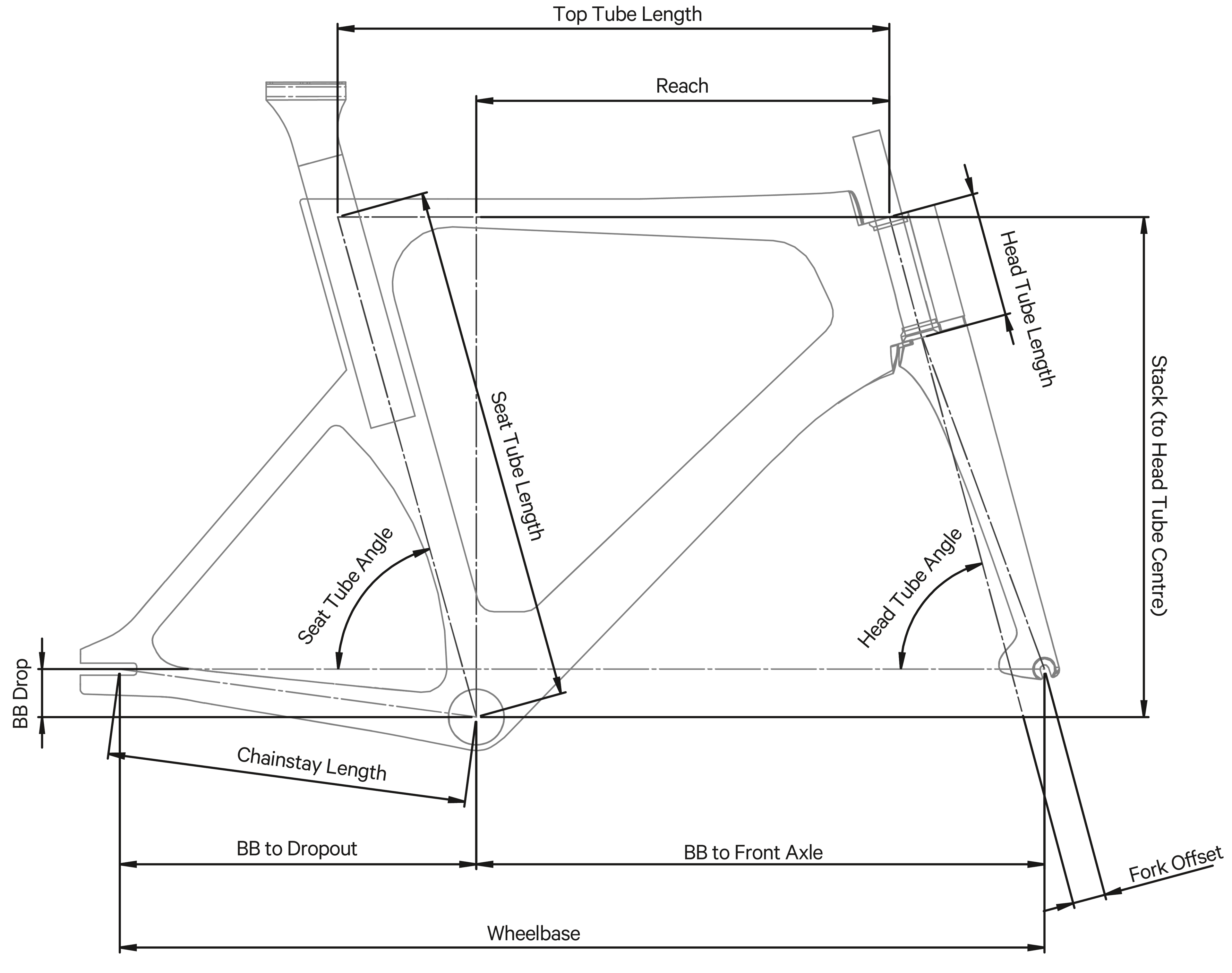

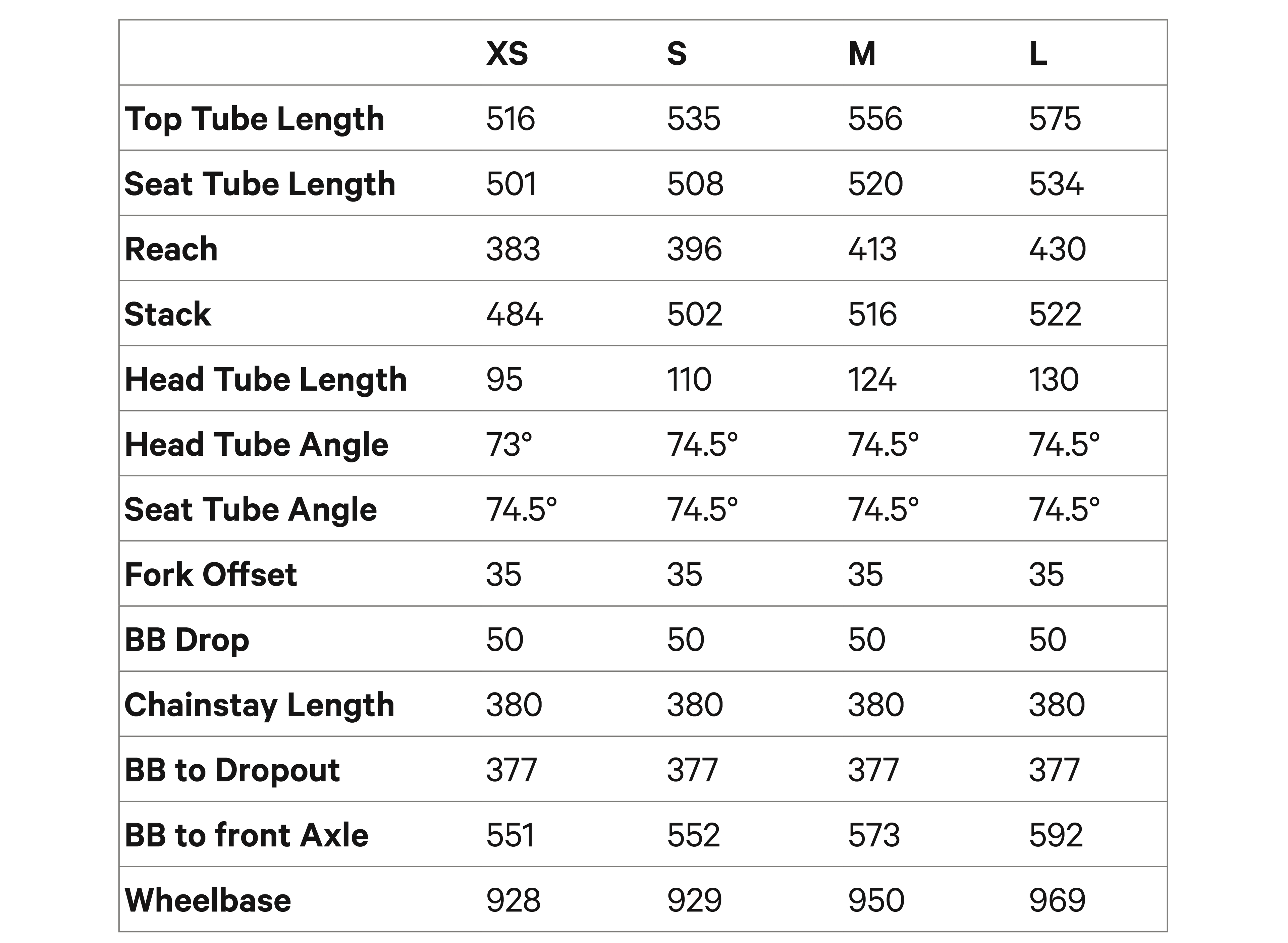

Frameset Geometry



Technical Specifications
  • UCI approved: Frame and Fork certified for competition
  • Size Range: XS to L, accommodating a broad spectrum of cyclists
  • Material Excellence: Utilizes T1000 carbon in critical areas complemented by T700 carbon fibre.

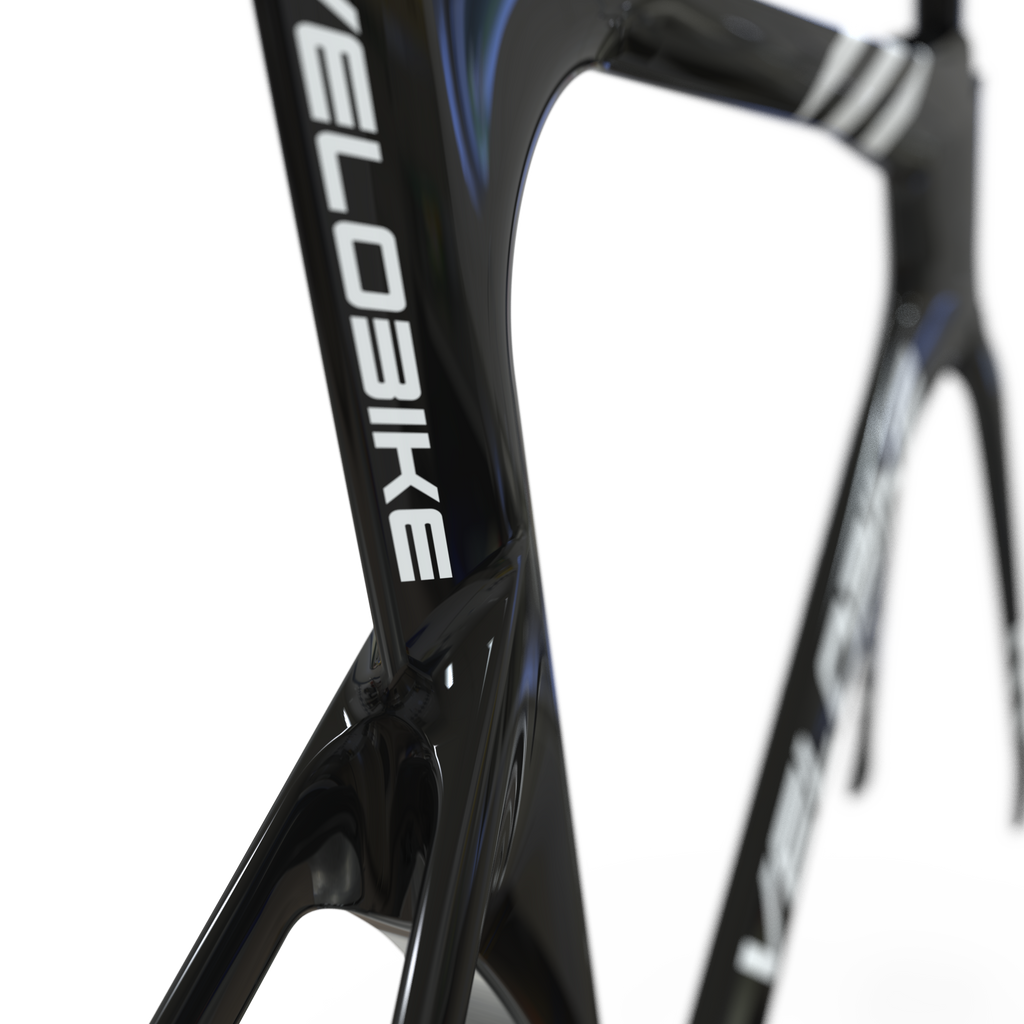

  • Finish: Features a ceramic gloss finish over exposed UD carbon (2024 livery), combining durability with a sleek, modern look
  • Weight: Frame and fork weigh approximately 1850g ± 50g (size L), achieving an optimal balance of strength and lightness
  • Safety Compliance: Exceeds ISO 4210 standards, underscoring our commitment to safety and quality
Integration and Versatility
  • BSA Threaded Bottom Bracket: For reliable performance and component integration.

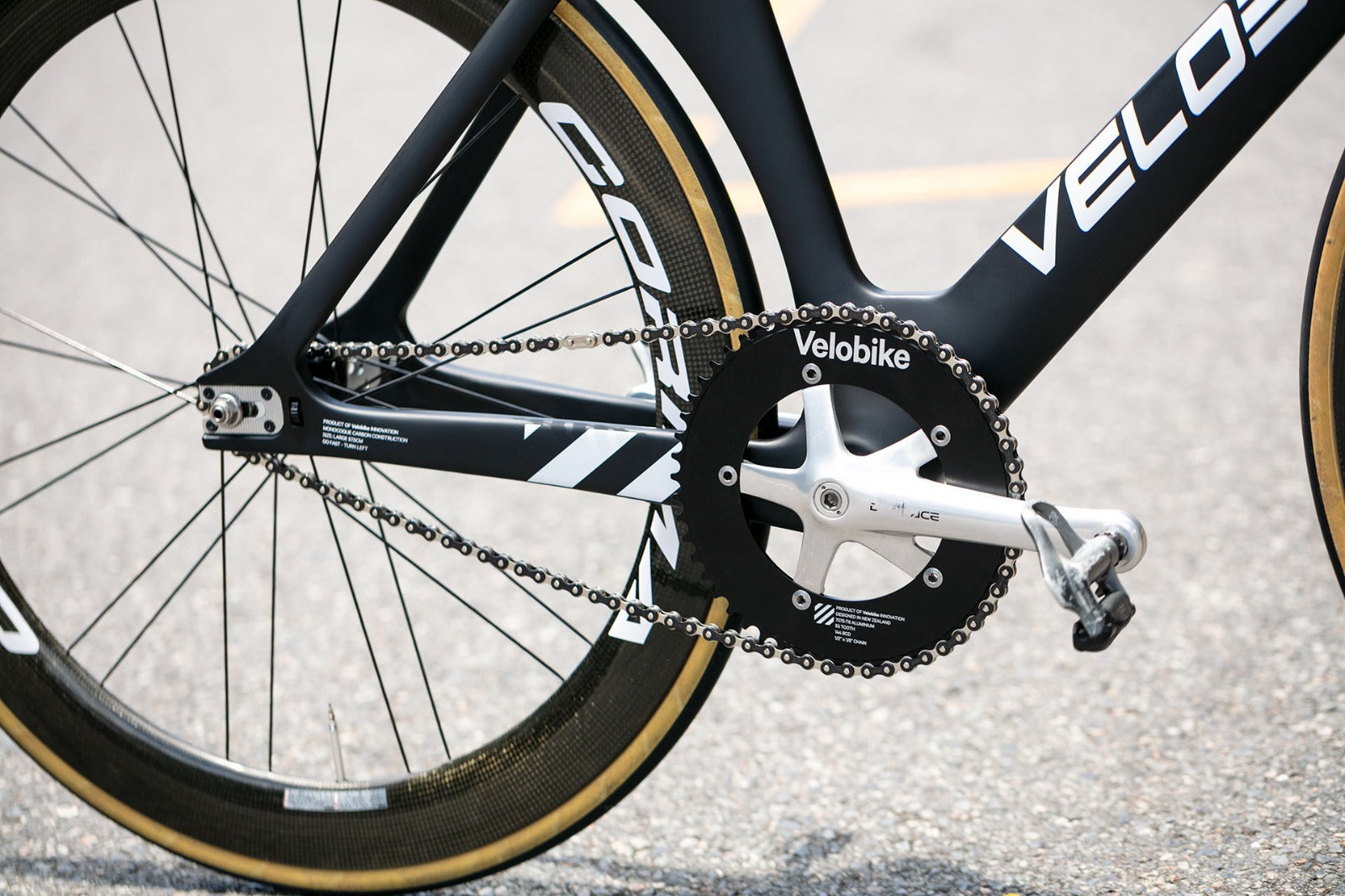

  • Chainring Clearance: Accommodates up to 70 tooth chainrings, supporting a 42mm chainline.
  • Steerer Tube: Standard 1 1/8" to fit many common stems

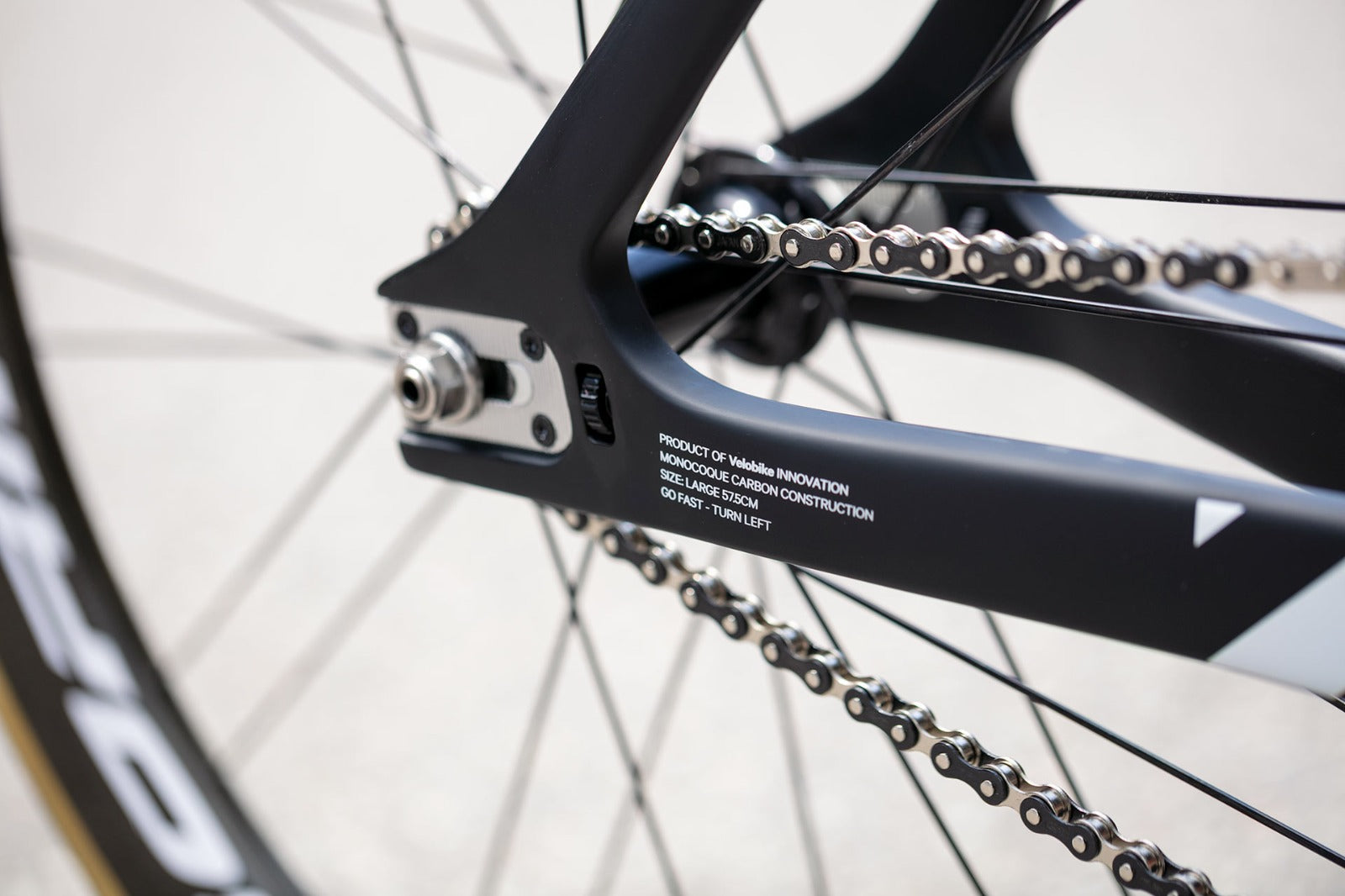

  • Dropout Specs: M9x100mm bolt on front wheels and M10x120mm bolt on rear wheels .
  • Tire Flexibility: Supports up to 700x25c, allowing for optimal tire selection.

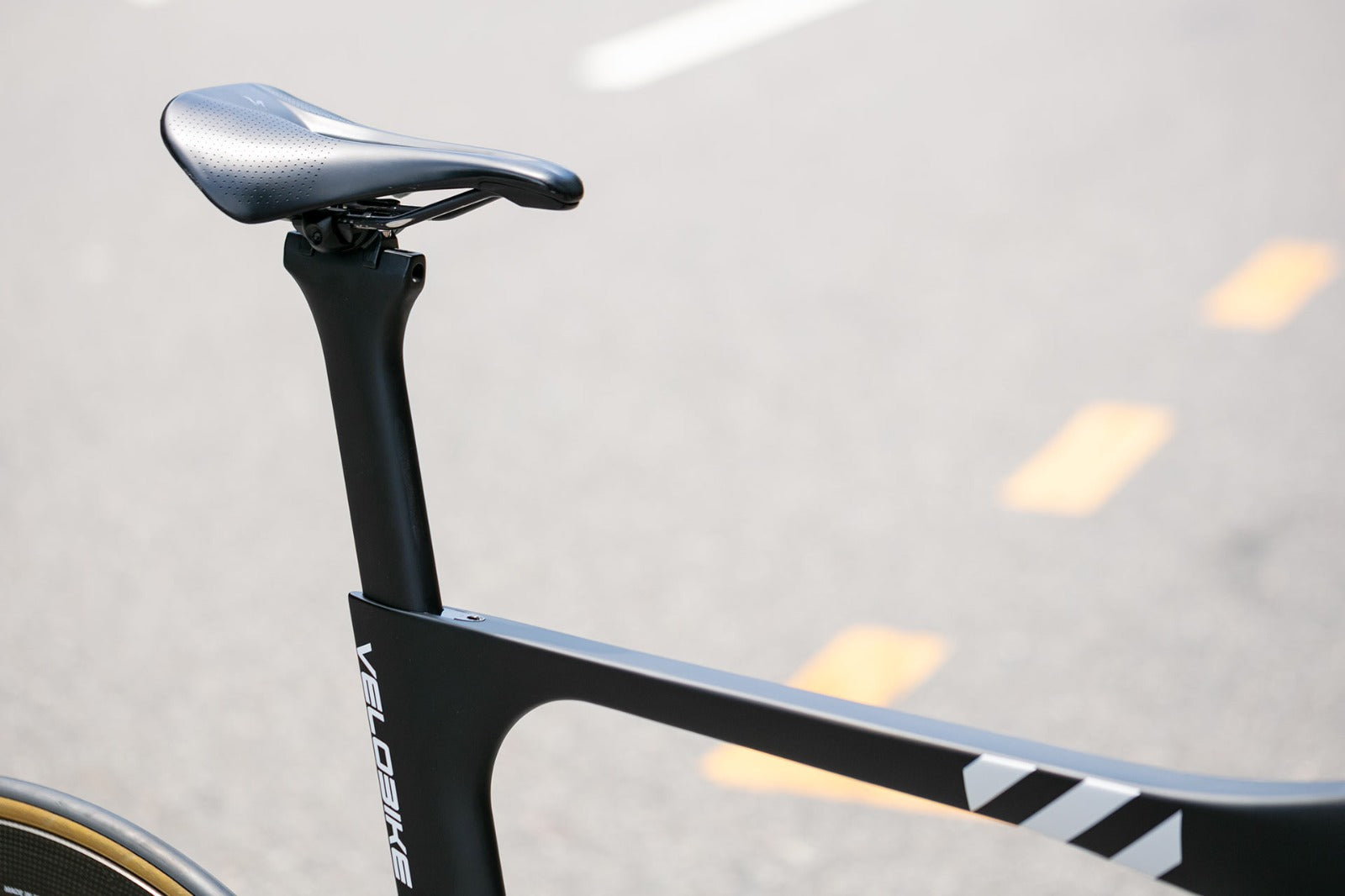

  • Saddle Mounting Options: Includes steel saddle rail mount, with a carbon option available for enhanced athletes.
What's In The Box
  • Frame (of chosen size)
  • Fork (of corresponding size to the frame)
  • Seatpost
  • Saddle clamp (steel saddle rails)
  • Seatpost clamp
  • Rear dropout plates x1 pair (one pair)
  • Headset bearings and bearing spacers (one set)

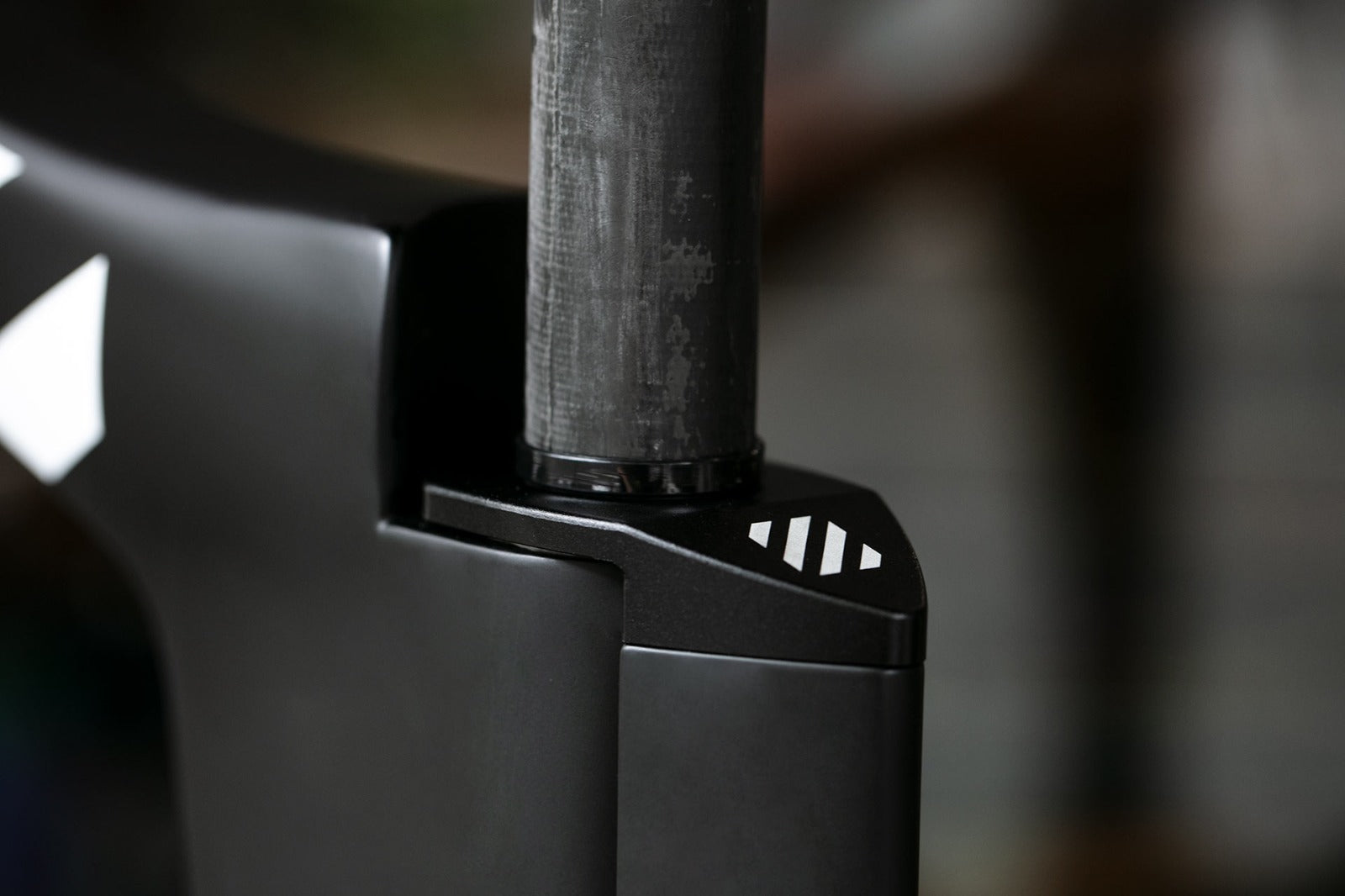

  • Headset compression plug
Size Guide

Frameset size depends on your bike fit requirements, the events you participate in and the components you wish to integrate with your frameset. We highly recommend to visit a track specific bike fitting studio to ensure the geometry is best suited for your requirements. These are our general recommendations:

Extra Small: 140-155cm
Small: 150-165cm
Medium: 160-175cm
Large: 170-185cm

Spare Parts & Extra Accessories
Global Delivery Information

Manufactured with precision in China and shipped directly to you, ensuring prompt delivery without additional costs. Allow up to 10 extra working days for M2 Framesets to be dispatched. Framesets are sent through a range of trusted couriers (UPS, FedEx, etc).
