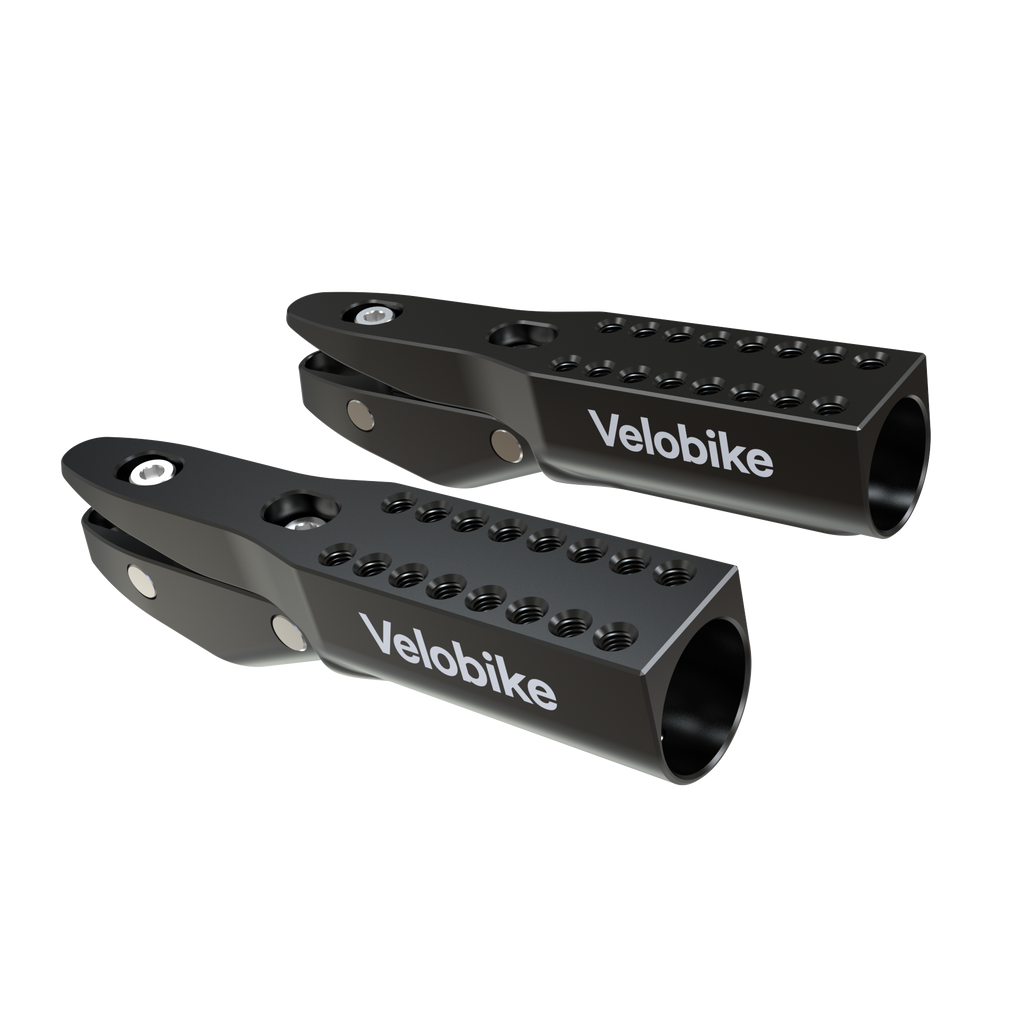

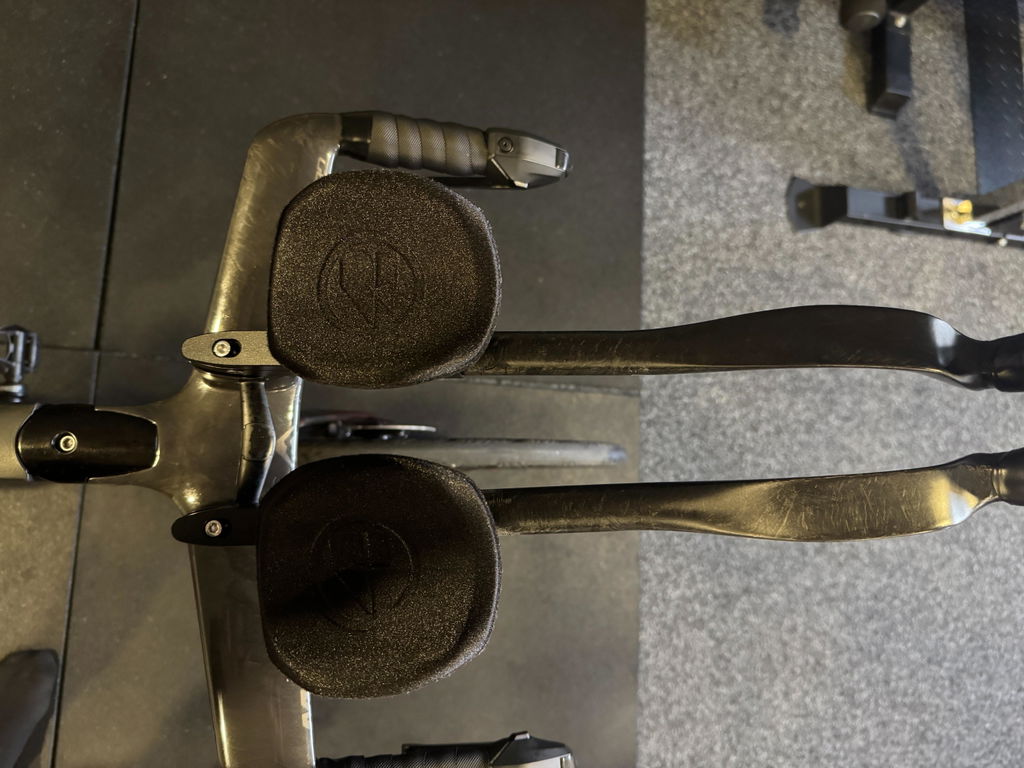

Universal aerobar angled risers developed in collaboration with Cycling New Zealand in the build-up to the Paris Olympics. The adjustability helps the team dial in their position with micro adjustments to optimise the bike fit in relation to the UCI geometry rules.

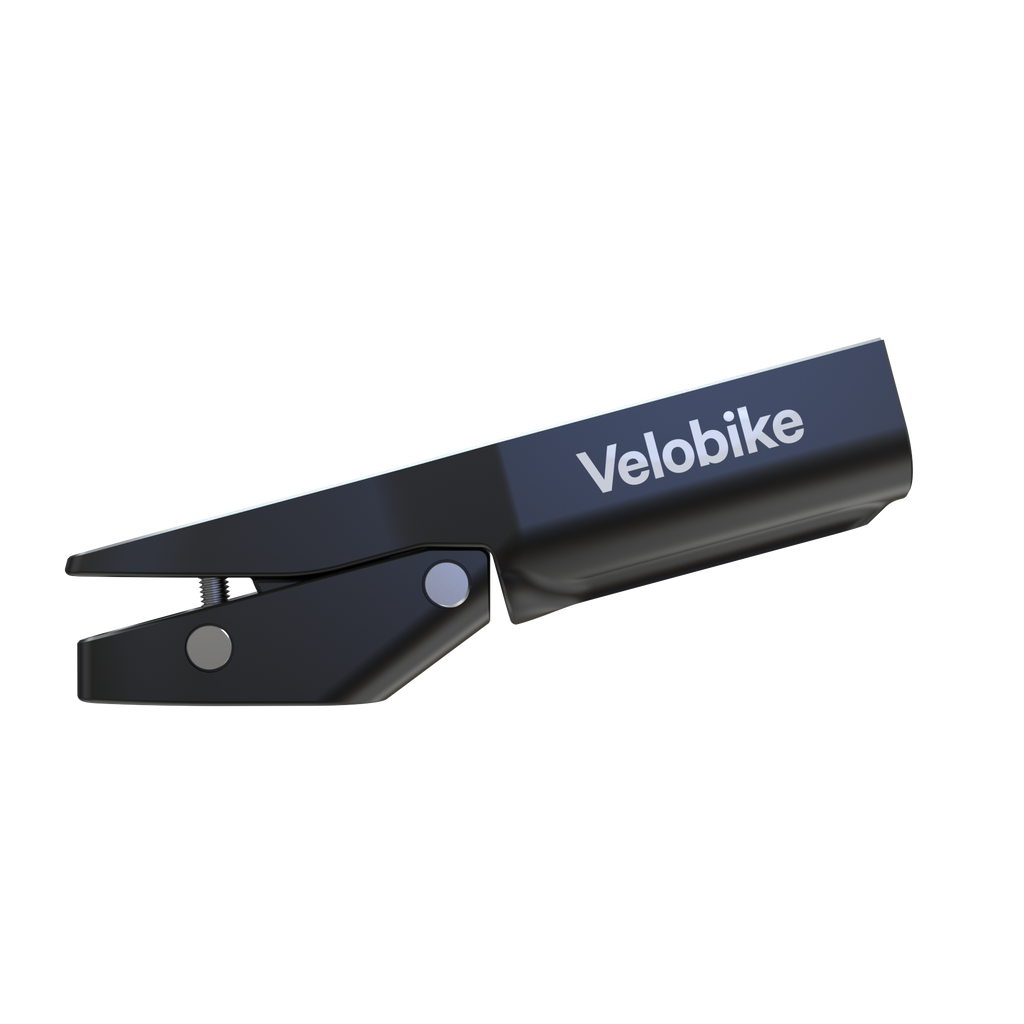

The Universal design enables the rider to micro adjust their standard 22.2mm diameter tube-style extensions from 15° up to 30°. Internal cable routing is considered for road time trial configurations.

The extensions are compatible with almost any base bar. The risers can fit onto base bars with bolt spacing from 20mm through to 40mm, In M5 or M6 bolt sizes, and with a bottom up - or top down bolting configuration.

Note: When mounting in a bottom-up bolt configuration, a nut is held captive within the riser (fastenings not included).

Specifications:

• 7075-T6 Aluminium
• Adjustable angle between 15° and 30°
• Compatible with 22.2mm external diameter extensions

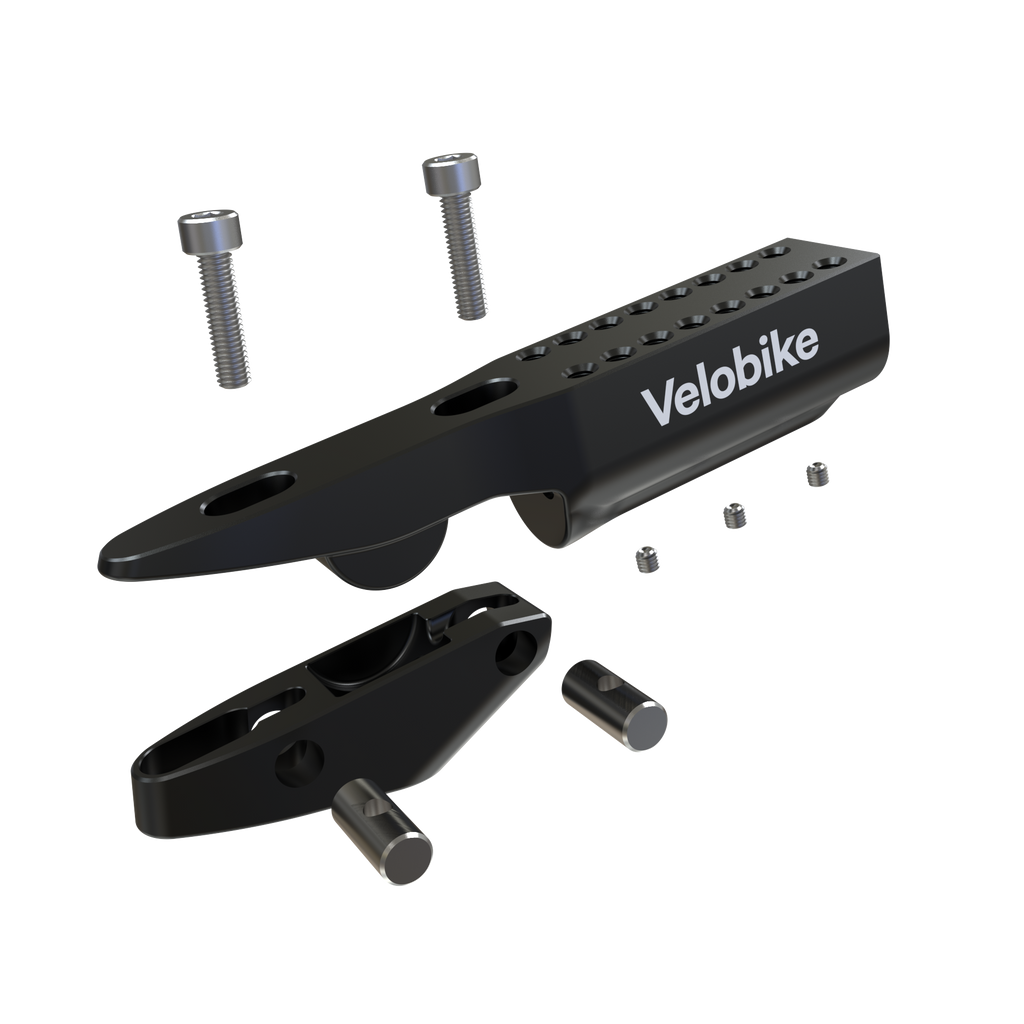

• Grub screw extension mounting system
• Access for internal cable routing


Includes:

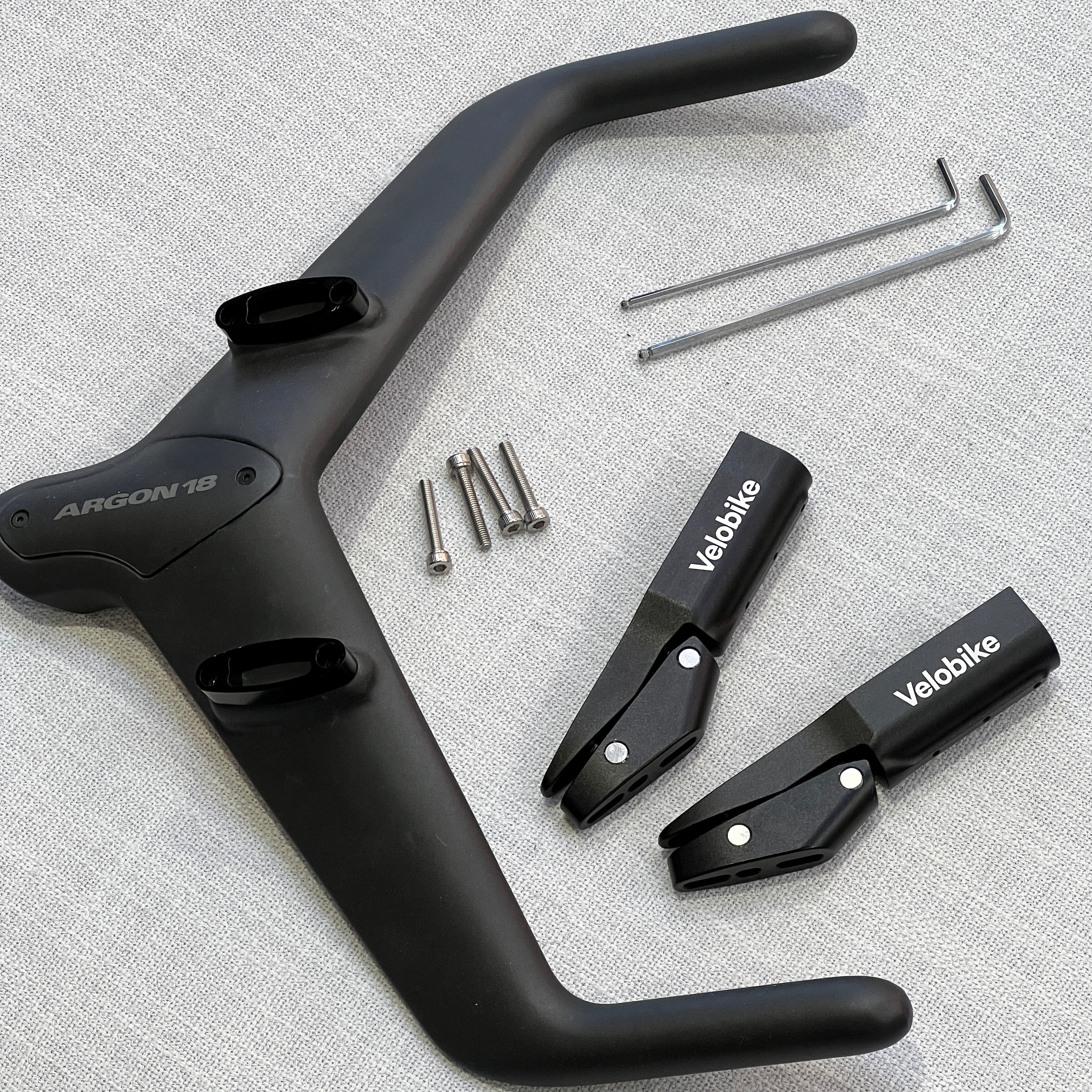

• 1x Pair of adjustable angle risers
• *Mounting hardware for base bar fastening not included
• *Mounting hardware for armrest fastenings not included

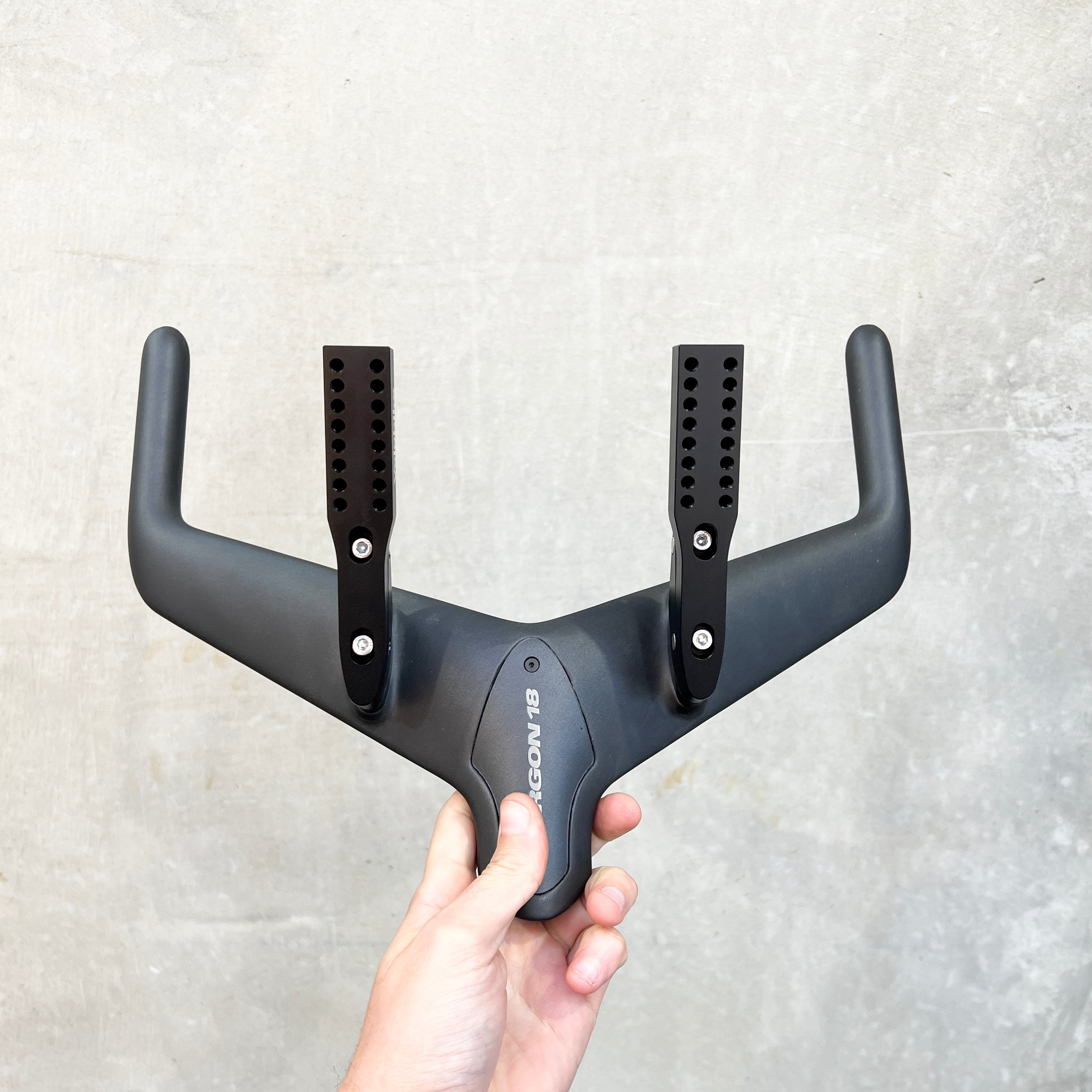

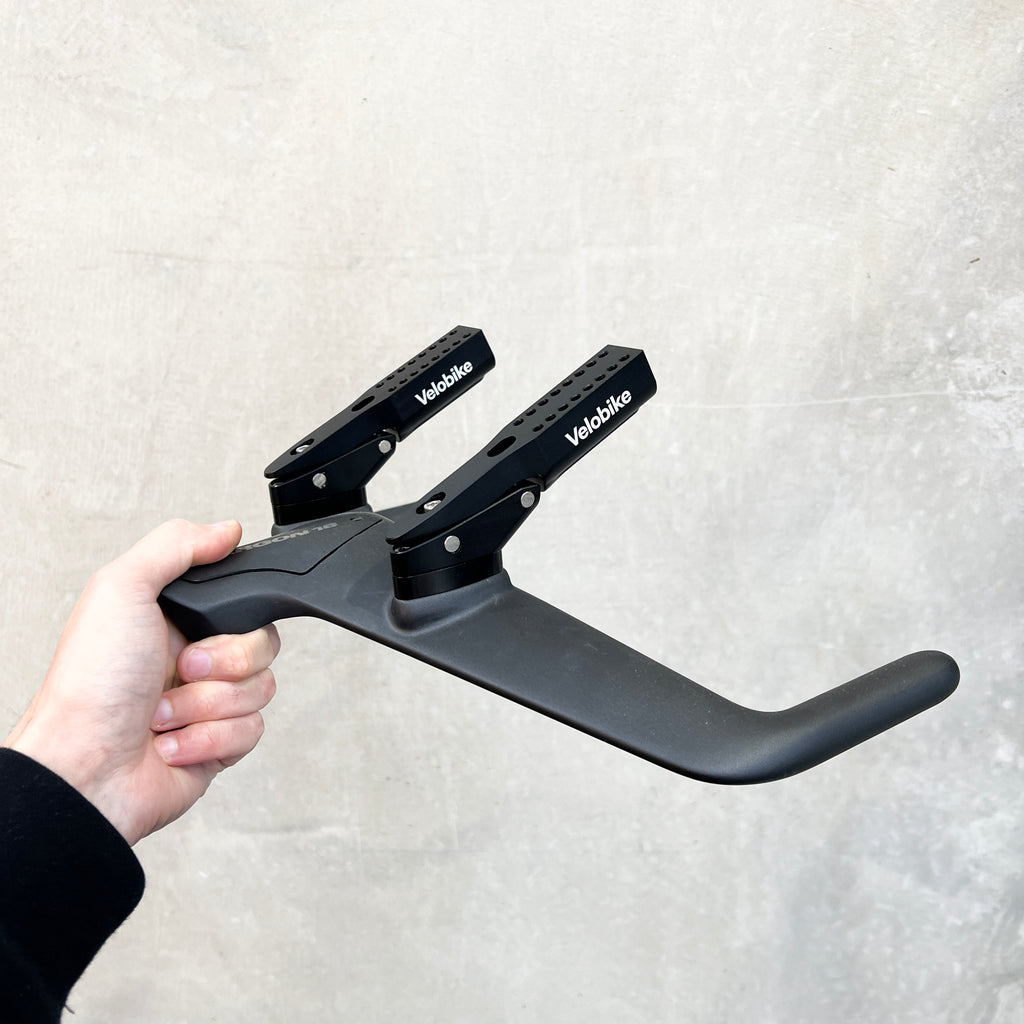

Base Bar Compatibility:

• Click here to see current known frame compatibility
• Top-down or bottom-up base bar mounting systems.

• Compatible with M5 or M6 base bars
• 20mm to 40mm base bar mounting spacing
• *Mounting hardware not supplied

Armrest Compatibility:

• 16x armrest fastening locations at 7.5mm increments
• M5 armrest fastening threads


Recommended to use Loctite 243 on all fastenings for safety and security
