A Limited edition 100t chainring based on the World Championship and Olympic level Velobike Elite Track Chainrings.

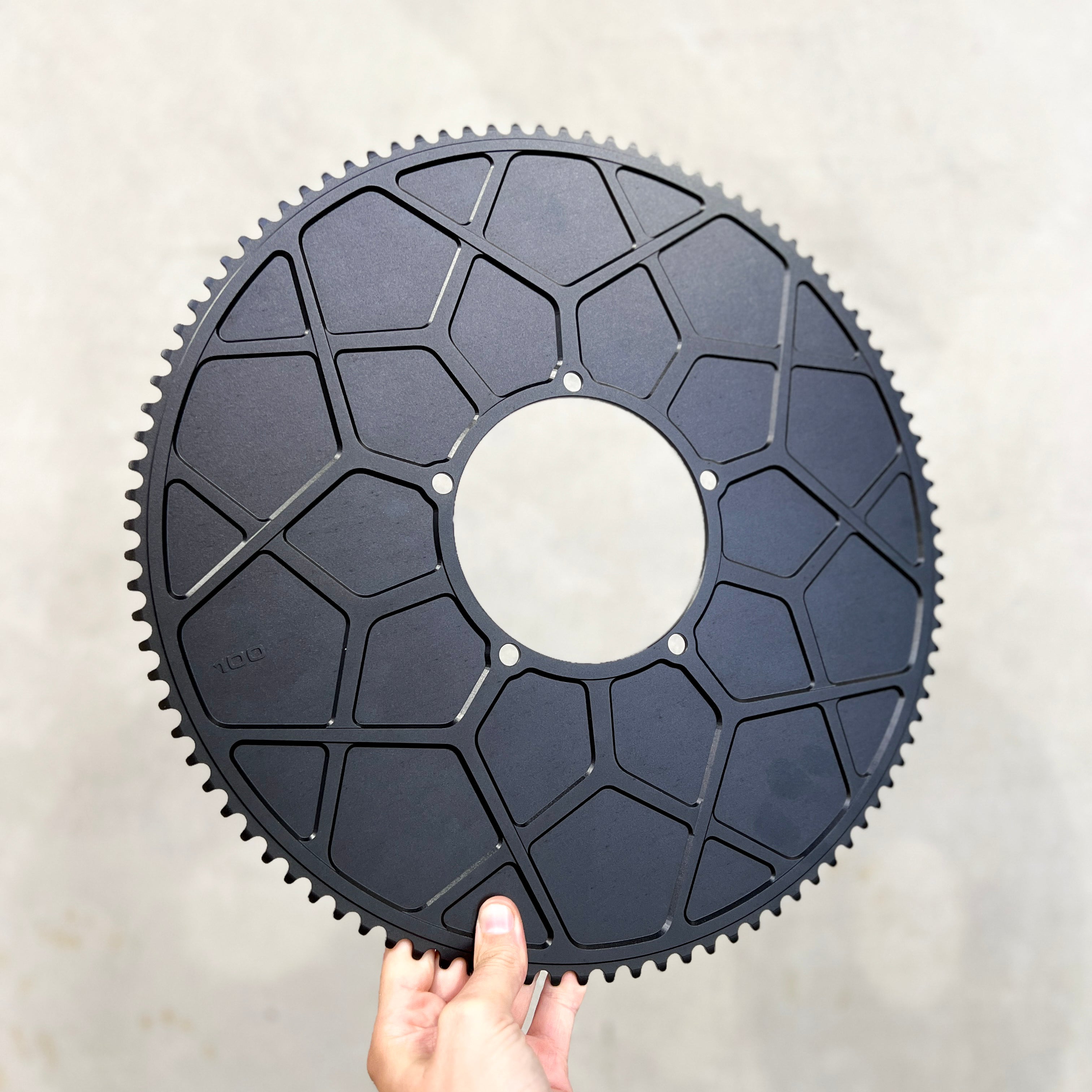

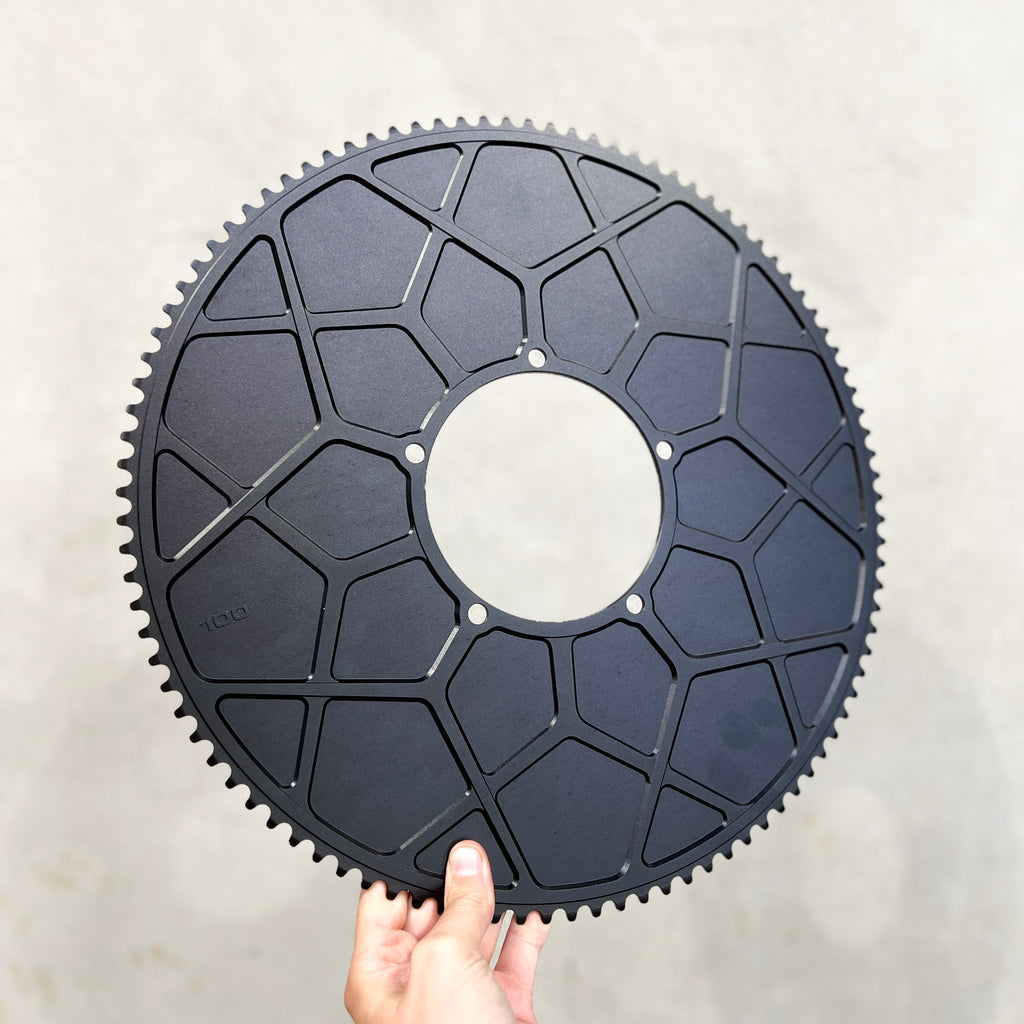

A further optimised material relief pattern on the rear side to further increase the stiffness to weight ratio.

Precision CNC machined aluminium with a post anodising and low friction infusion process impregnated into the highly tolerance tooth profile. The 7075-T6 aluminium grade offers the greatest strength to weight ratio - making the elite range a stiff yet relatively lightweight performance chainring.

The Elite Track Chainrings tooth profile is a result of multiple years of iterative development - optimising the profile for reduced noise and friction as the chain links engage and disengage with the teeth during the chainrings rotation.

 Specifications:

• 100 teeth
• Gen3 tooth profile
• 144BCD
• Standard 1/8” chain width
• Aerospace grade 7075-T6 aluminium for maximum stiffness yet minimum weight
• Velobike developed low friction tooth profile for an efficient chain interface
• Precision CNC Machined

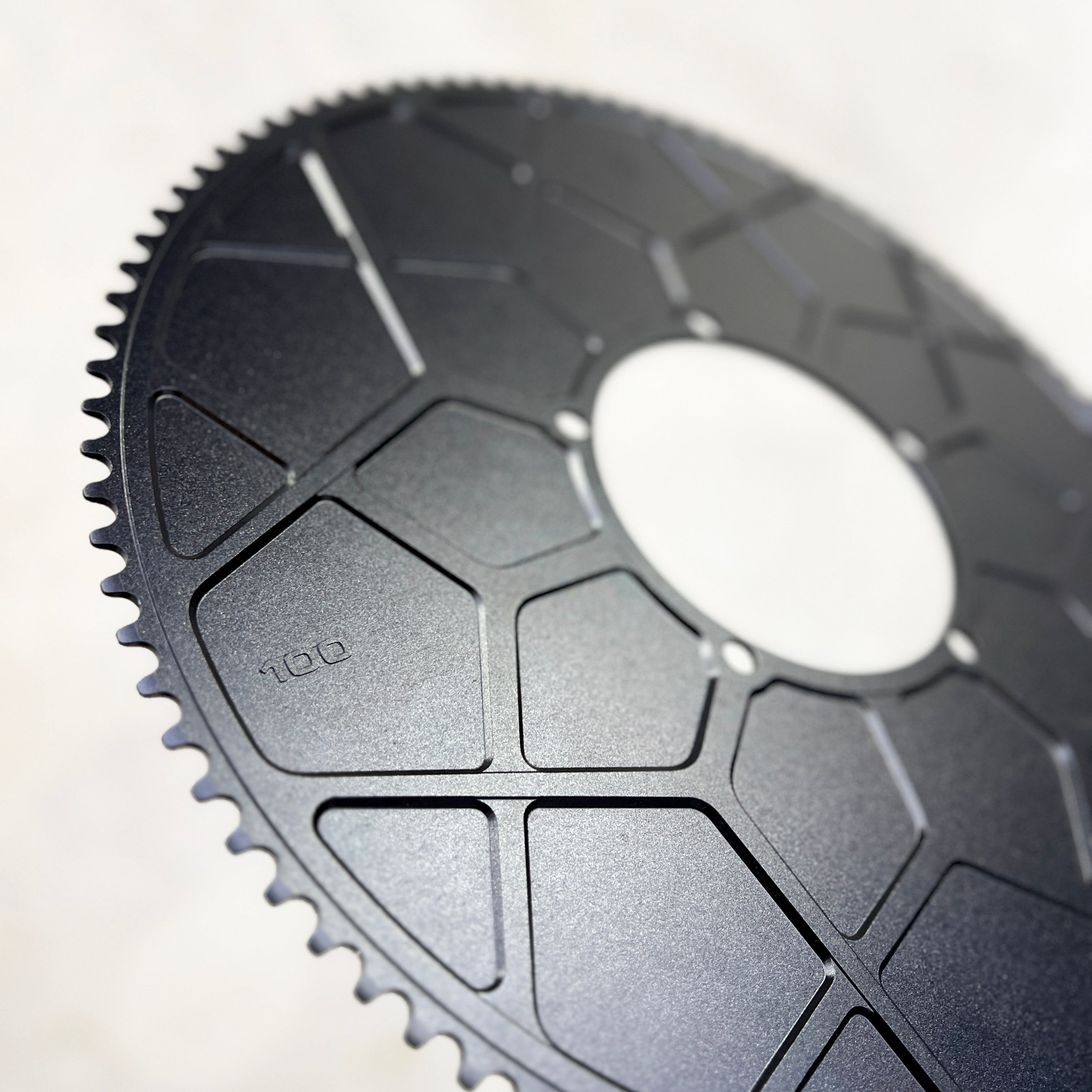

• Innovative Spoke design on the rear surface for optimised stiffness to weight ratio.
• Chamfered relief cutouts to help help air-flow over the ridges reducing flow separation
• Stepped surface design between teeth and the main body of the chainring plate keeps the chain outer plates flush with the chainring to reduce air flow separation.
• Tough anodised surface treatment, infused with a hi-tech low friction compound
