100t Elite Track Chainring
100t Elite Track Chainring
SKU:VB-CET-18144100
A Limited edition 100t chainring based on the World Championship and Olympic level Velobike Elite Track Chainrings.

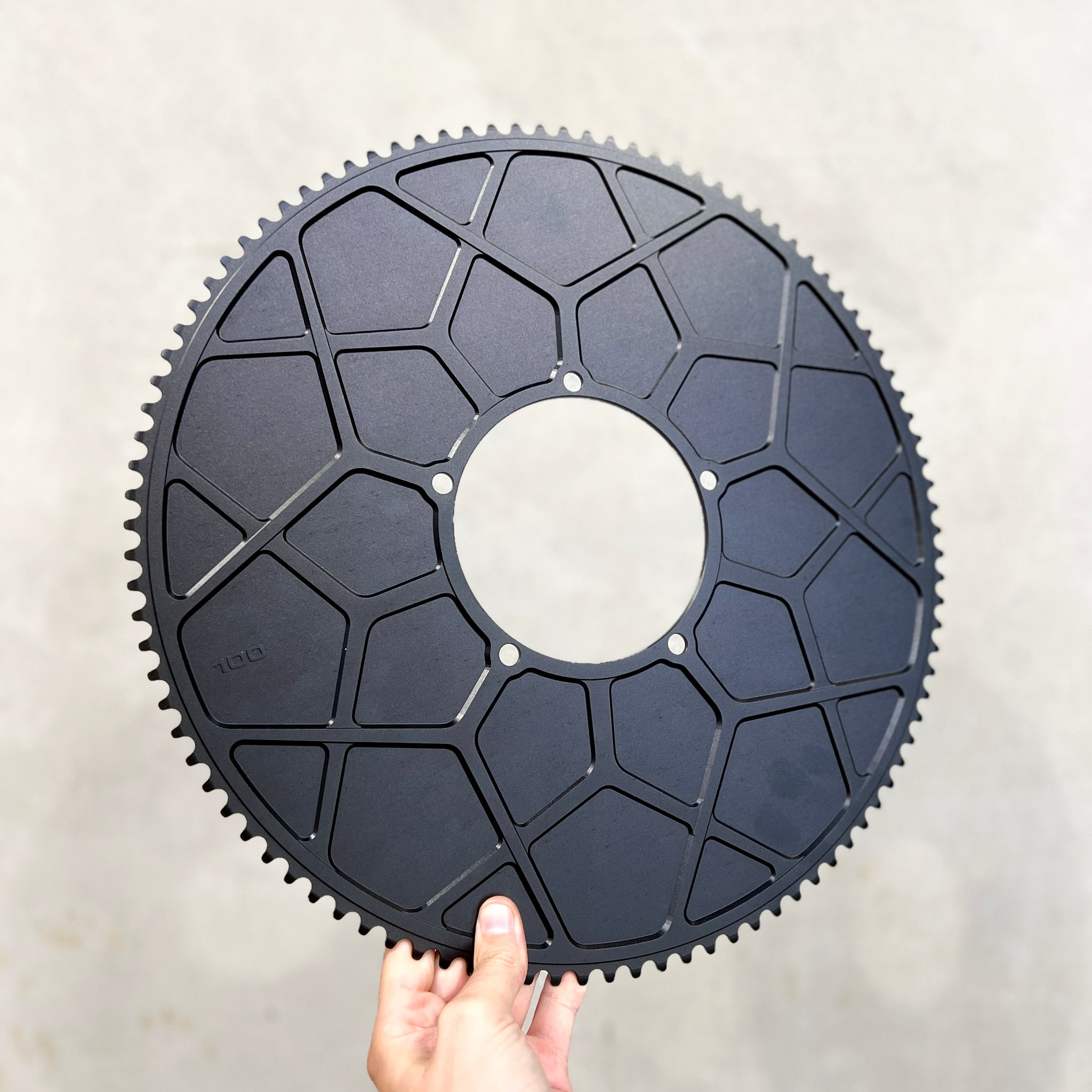

A further optimised material relief pattern on the rear side to further increase the stiffness to weight ratio.
Precision CNC machined aluminium with a post anodising and low friction infusion process impregnated into the highly tolerance tooth profile. The 7075-T6 aluminium grade offers the greatest strength to weight ratio - making the elite range a stiff yet relatively lightweight performance chainring.
The Elite Track Chainrings tooth profile is a result of multiple years of iterative development - optimising the profile for reduced noise and friction as the chain links engage and disengage with the teeth during the chainrings rotation.
Specifications:
- 100 teeth
- Gen3 tooth profile
- 144BCD
- Standard 1/8” chain width
- Aerospace grade 7075-T6 aluminium for maximum stiffness yet minimum weight
- Velobike developed low friction tooth profile for an efficient chain interface
- Precision CNC Machined

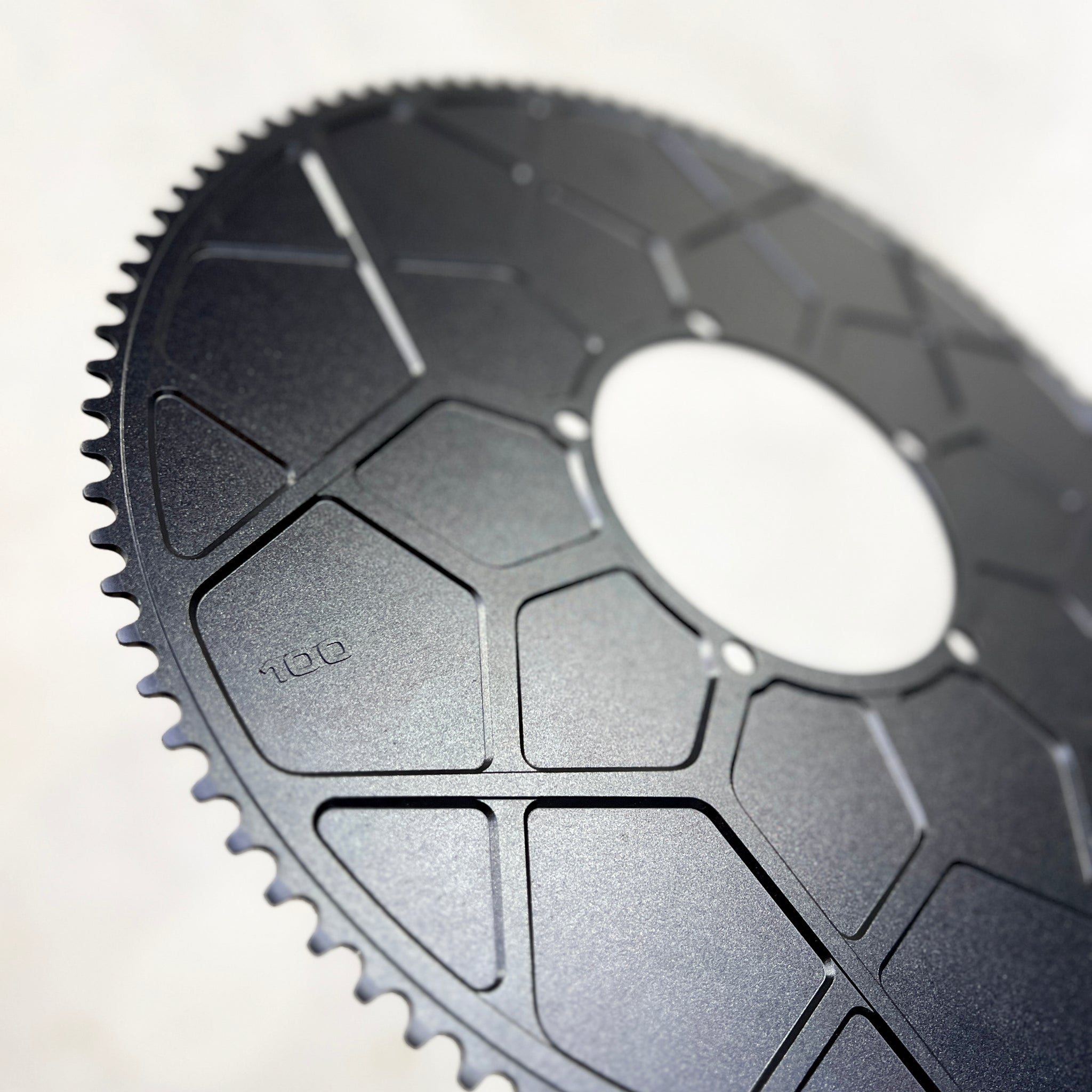

- Innovative Spoke design on the rear surface for optimised stiffness to weight ratio.
- Chamfered relief cutouts to help help air-flow over the ridges reducing flow separation
- Stepped surface design between teeth and the main body of the chainring plate keeps the chain outer plates flush with the chainring to reduce air flow separation.
- Tough anodised surface treatment, infused with a hi-tech low friction compound
