Track Strap Mounts
Track Strap Mounts
SKU:VB-A-TS-SM-R9100
A must-have for sprint track cyclists who use straps. Ensures your feet are securely fastened to your pedals to eliminate pedal pull and increases power transfer — especially on the upstroke.

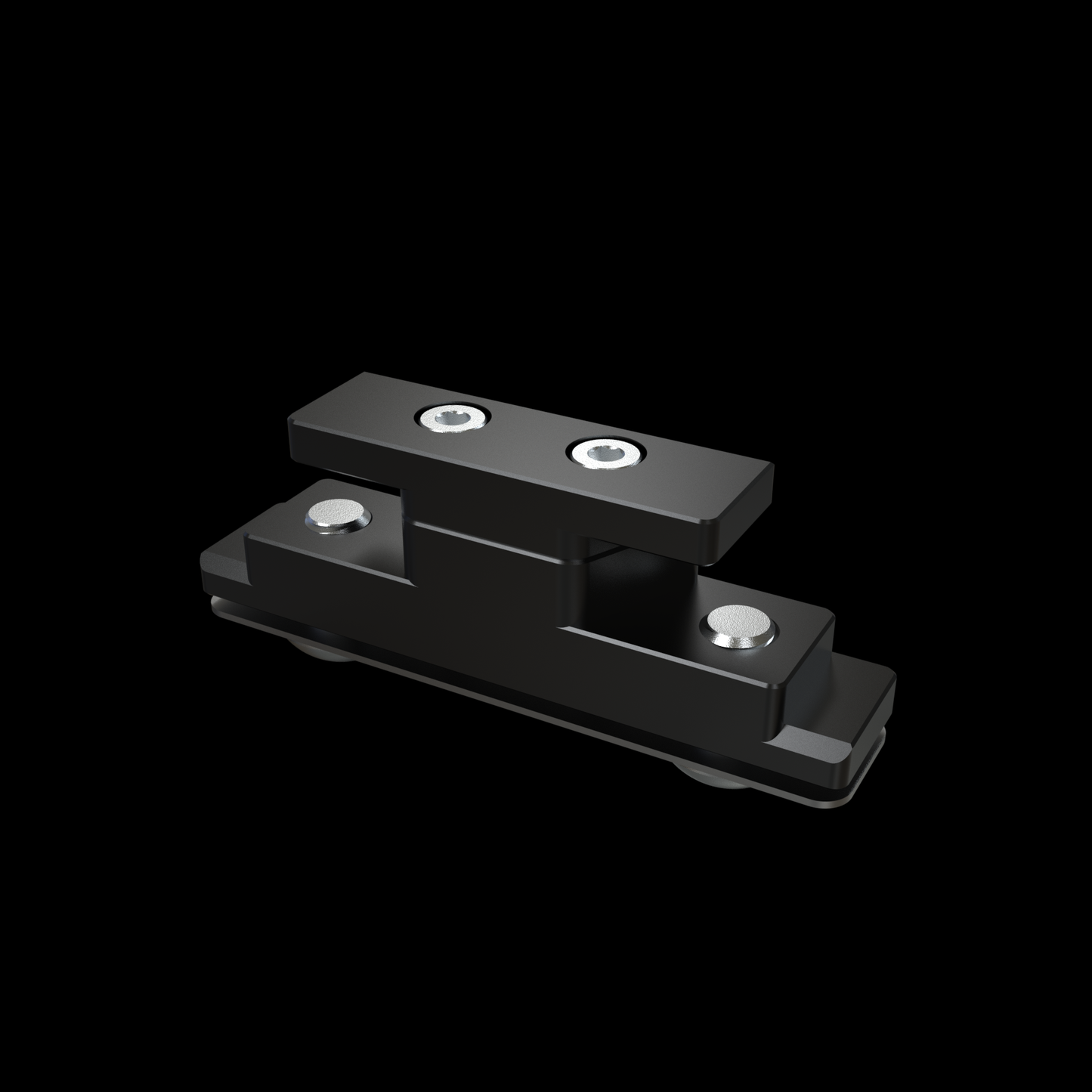

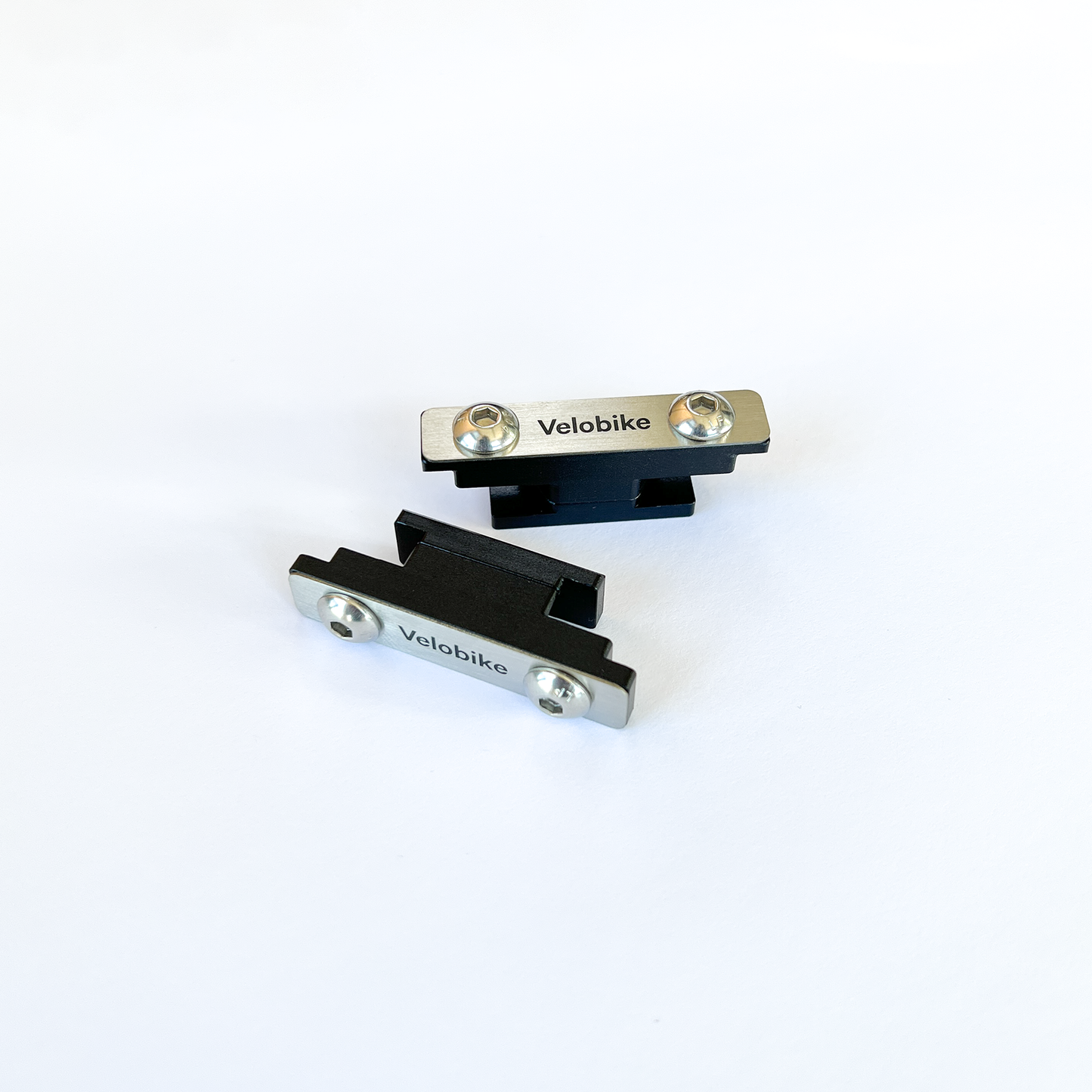

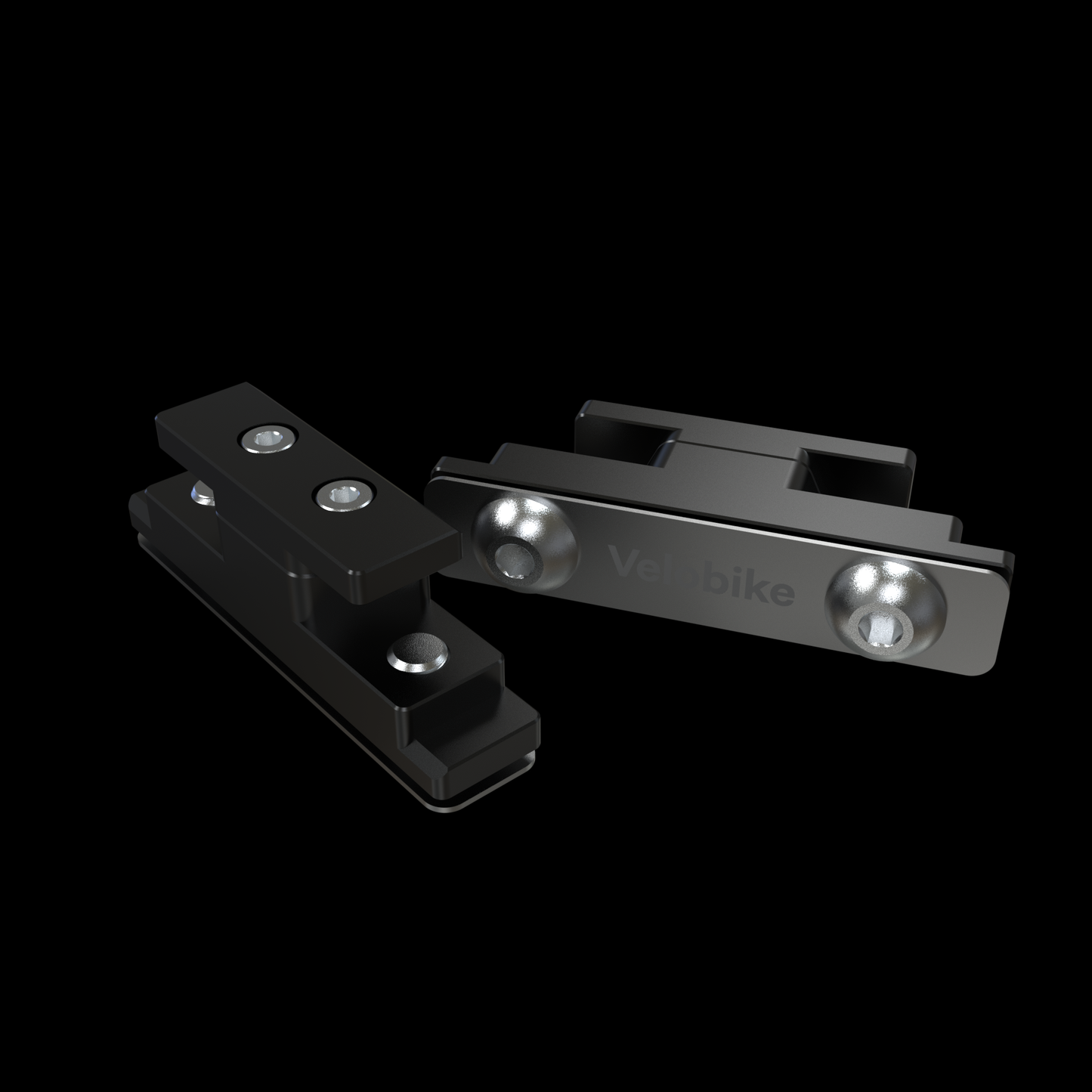

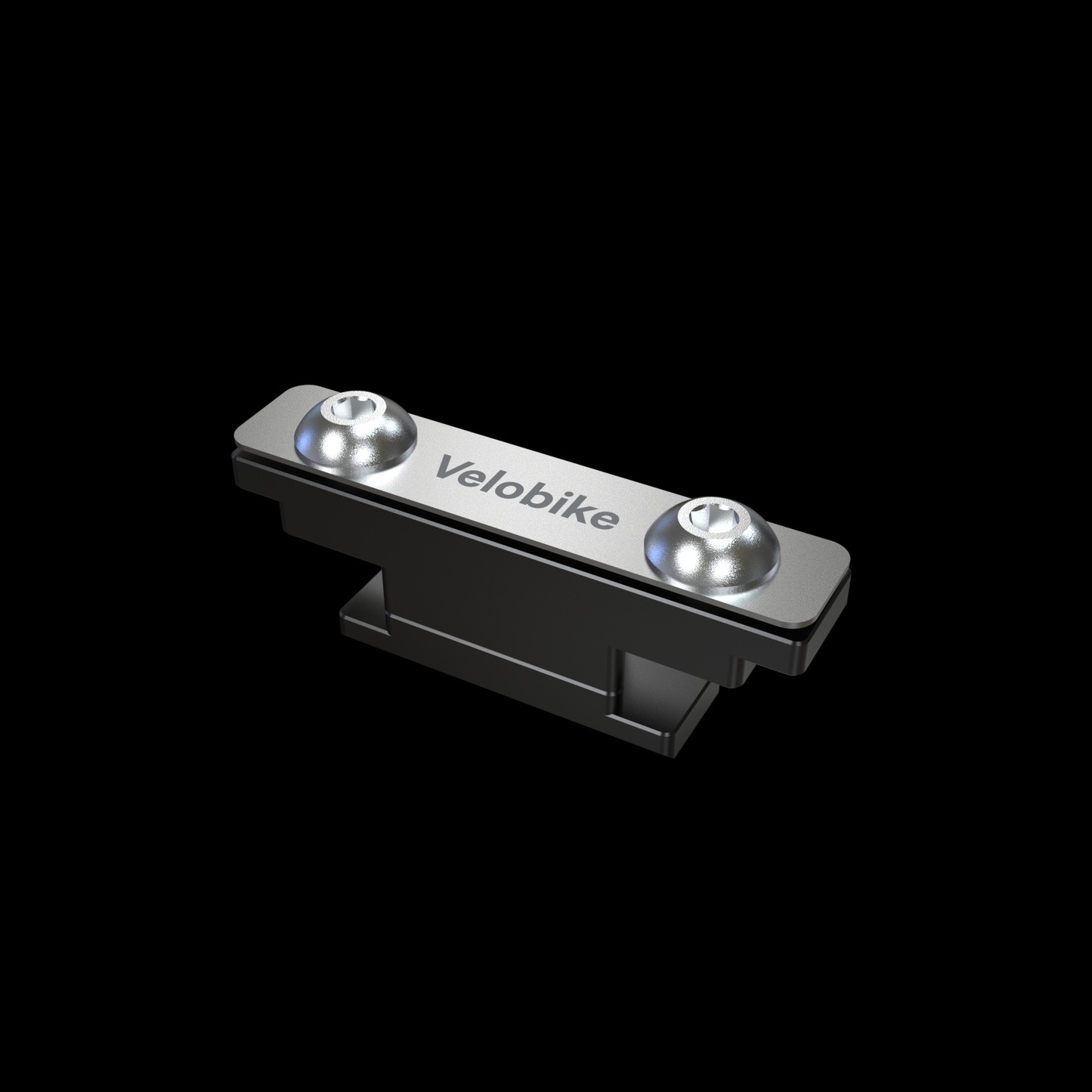

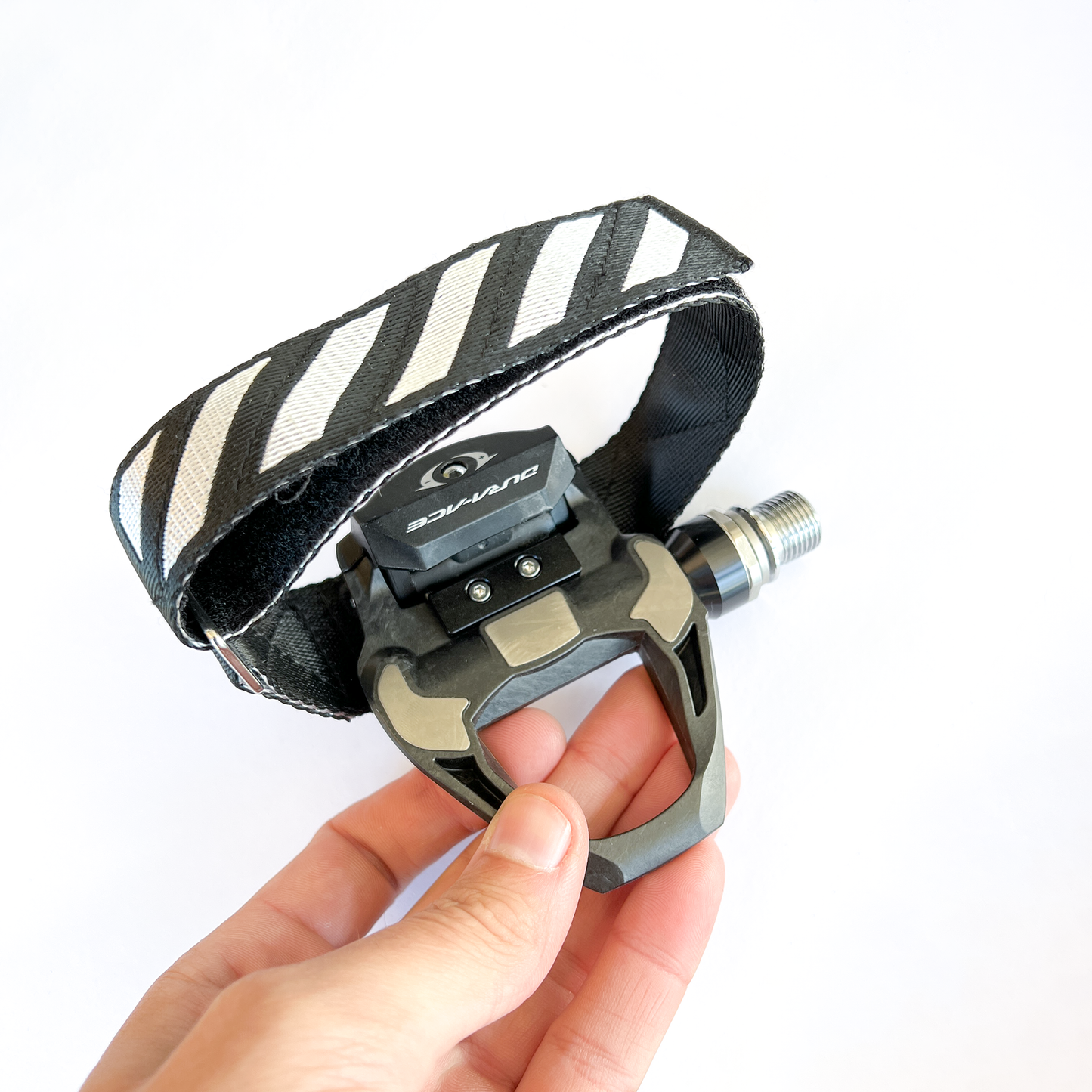

Designed to fit snug in the Dura-Ace or Ultegra pedal, The strap mounts eliminate the need for zip-ties as a mounting solution. 2x fastenings pass through the straps eyelets, clamping the strap to the pedal.
The removable fastenings mean straps can quickly be removed or reattached depending on race event.
Strap Compatibility
- Optimised to work with the Velobike Track Straps
- 30mm eyelet to eyelet spacing
- Straps require a 5mm minimum eyelet inner diameter
Pedal Compatibility
- Shimano Dura-Ace Pedals (PD-R9100)
- Shimano Ultegra Pedals (PD-R8000)
- Note: The R8000 Strap mount will also fit the Shimano 105 PD-R7000 Pedals
Specifications:
- CNC Machined 7075-T6 components
- 304 Stainless Steel hardware
- Recommended to use Loctite 243 on fastenings

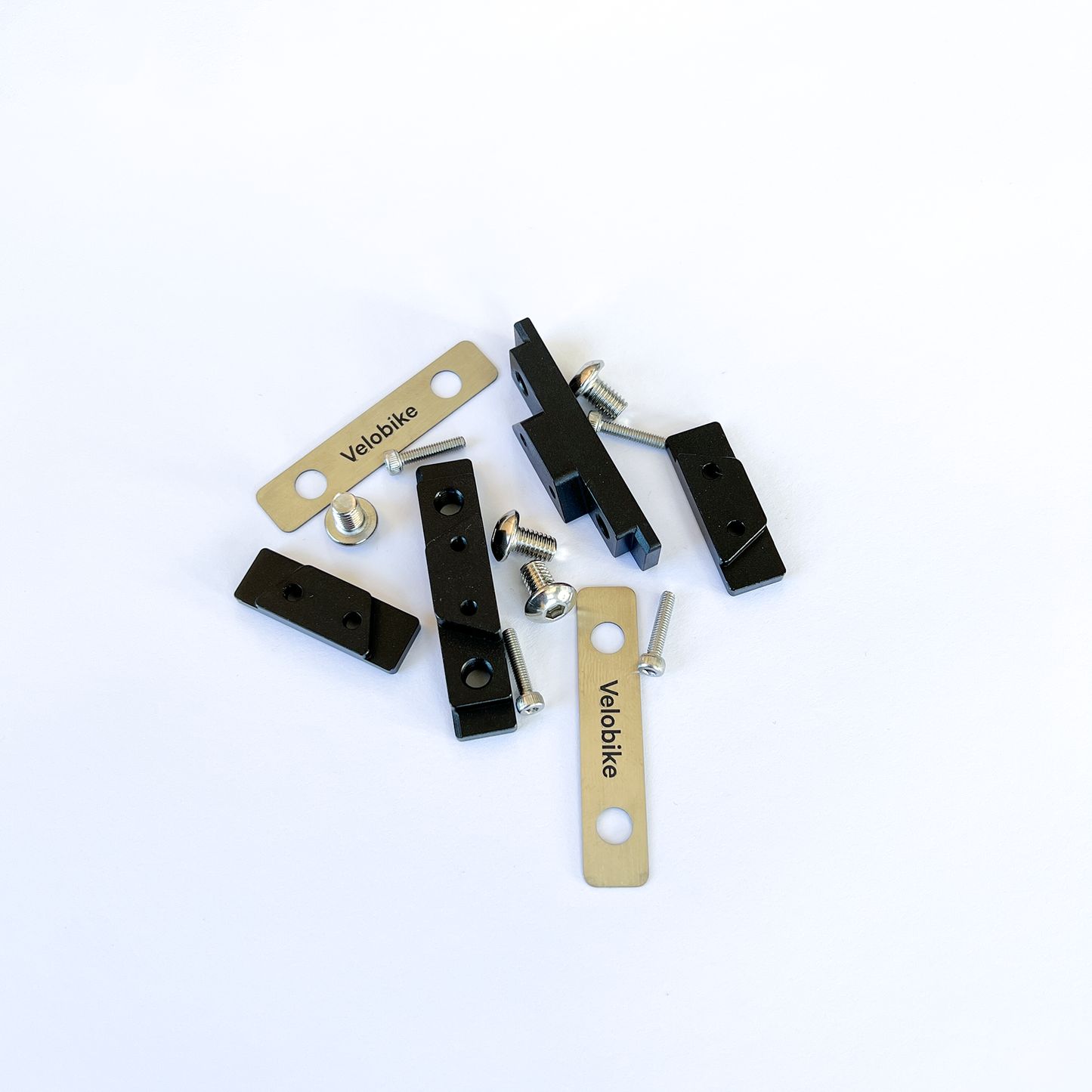

Includes:
- 1x pair of Track strap mounts (2x strap mounts in total)
- Straps not included

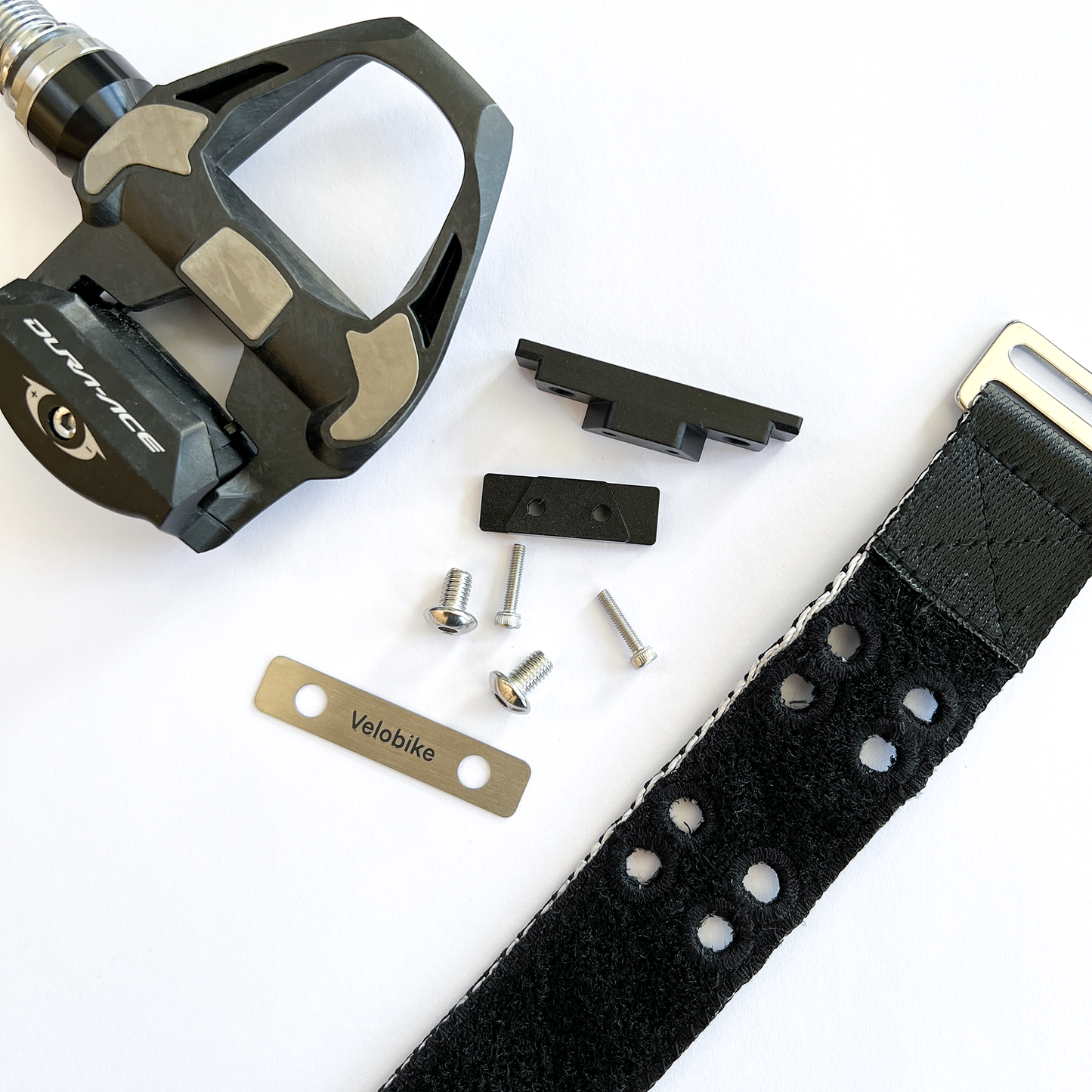

Installation instructions:

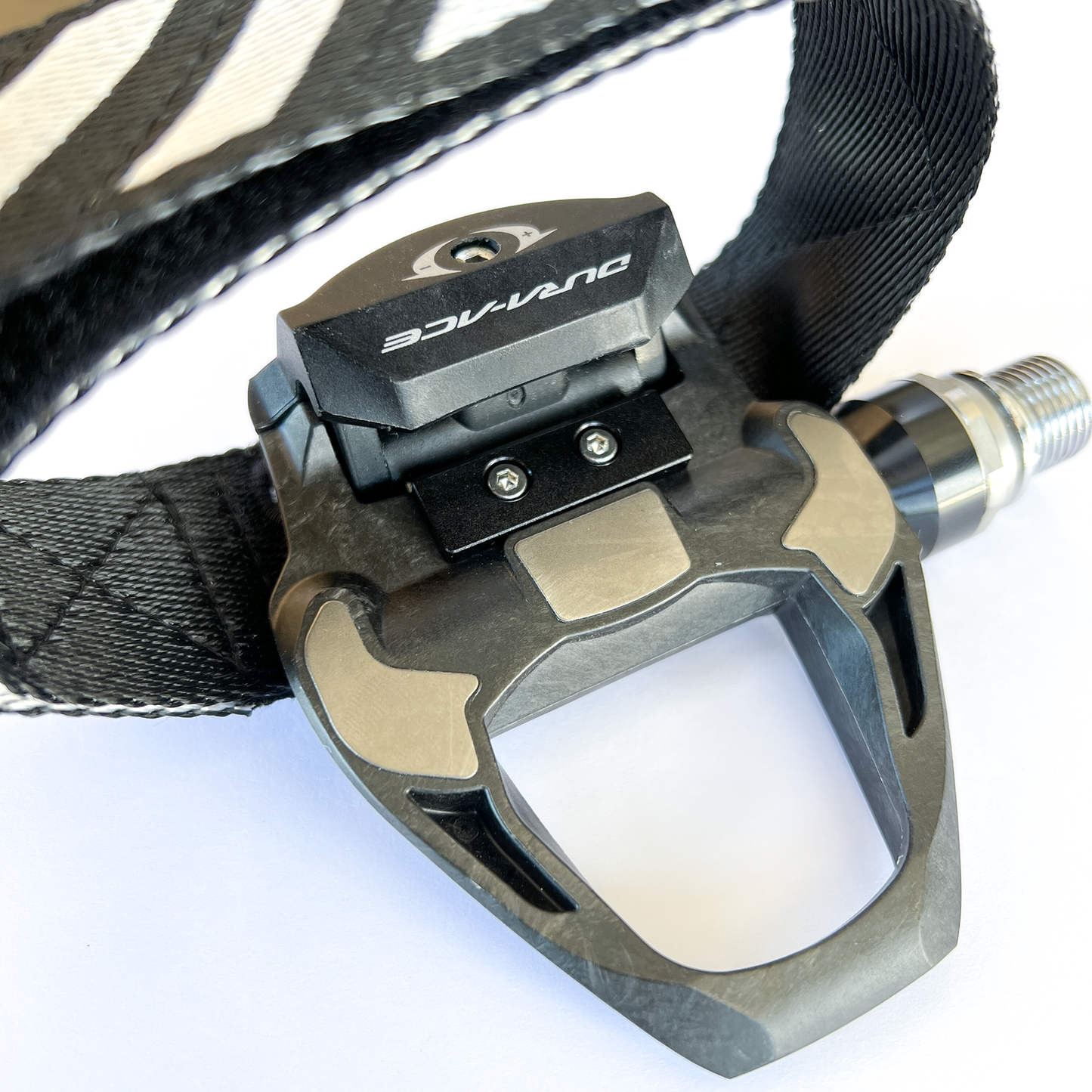

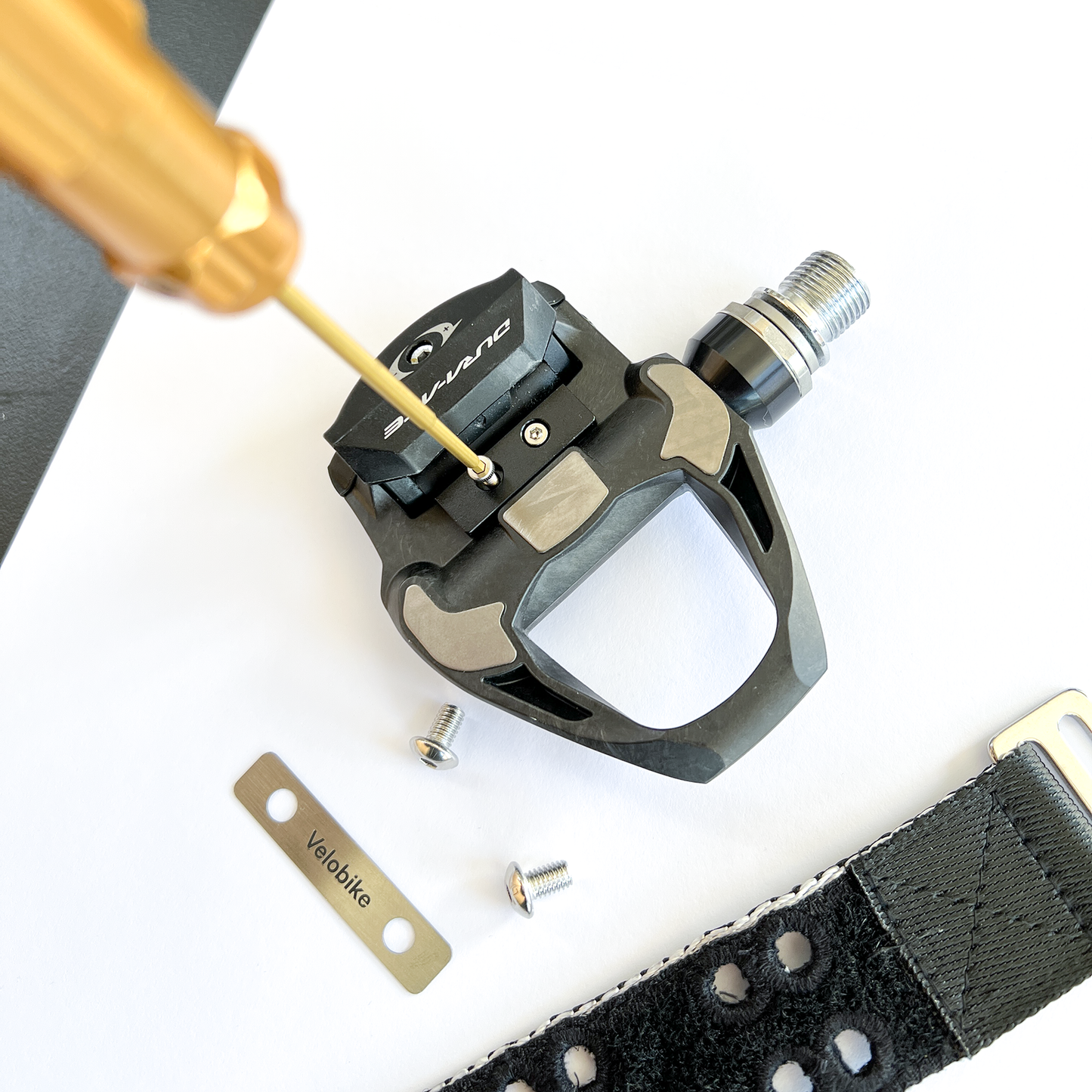

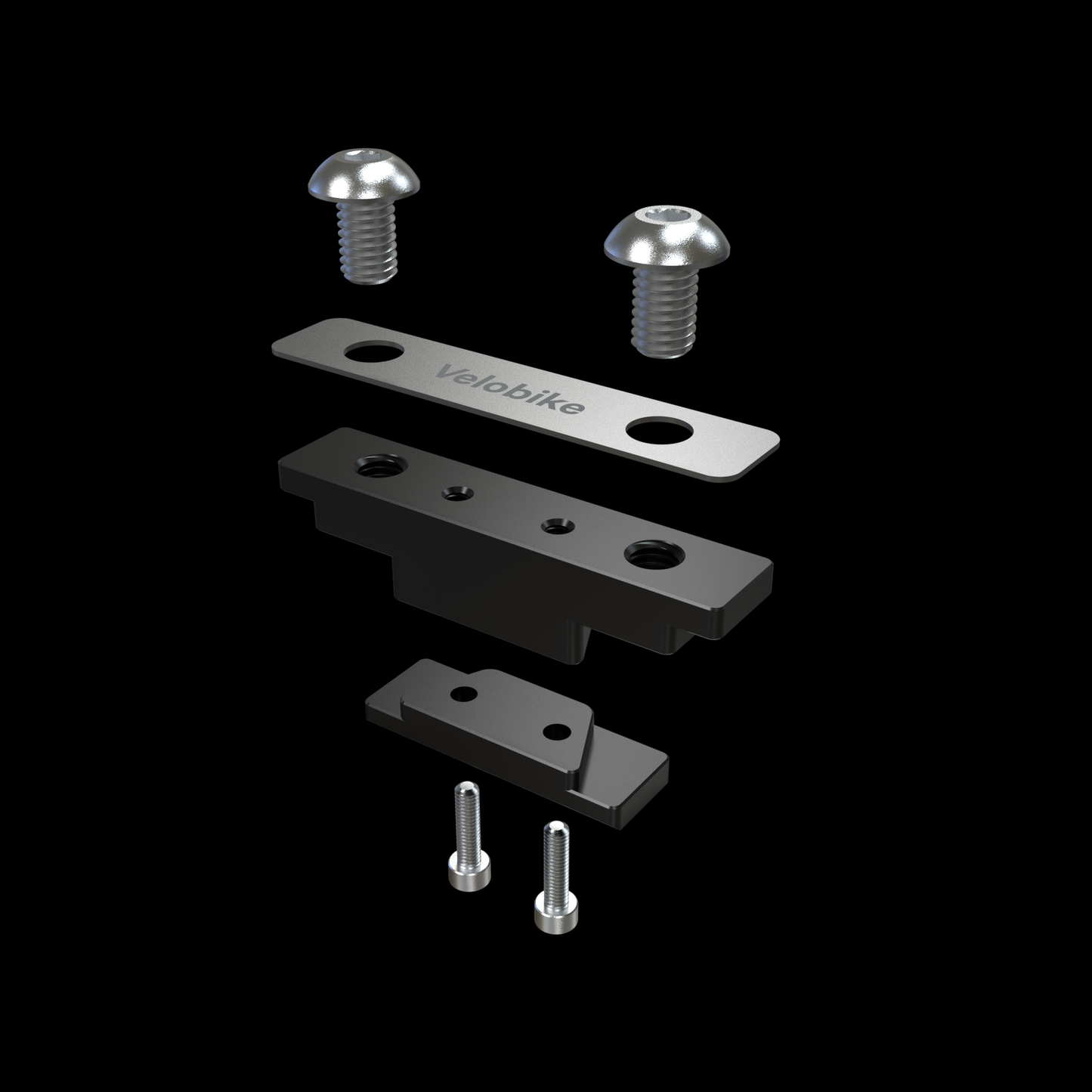

- Clamp the outer and inner block onto the pedal using the supplied M2.5 screws. Loctite 243 is recommended for these fastenings to increase security.

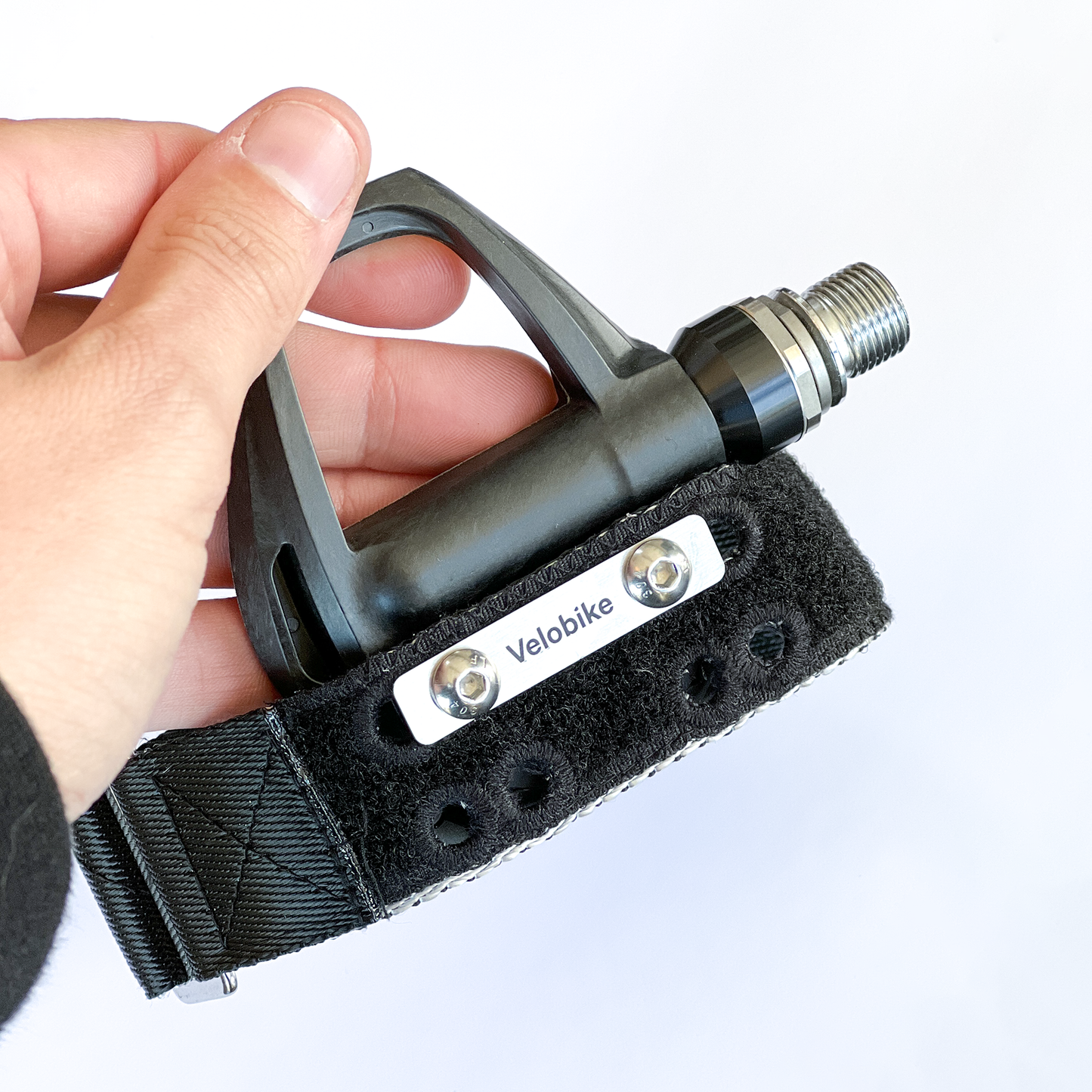

- Align the strap in preferred orientation over the strap mount, overlay the stainless steel plate to the outside of the strap.

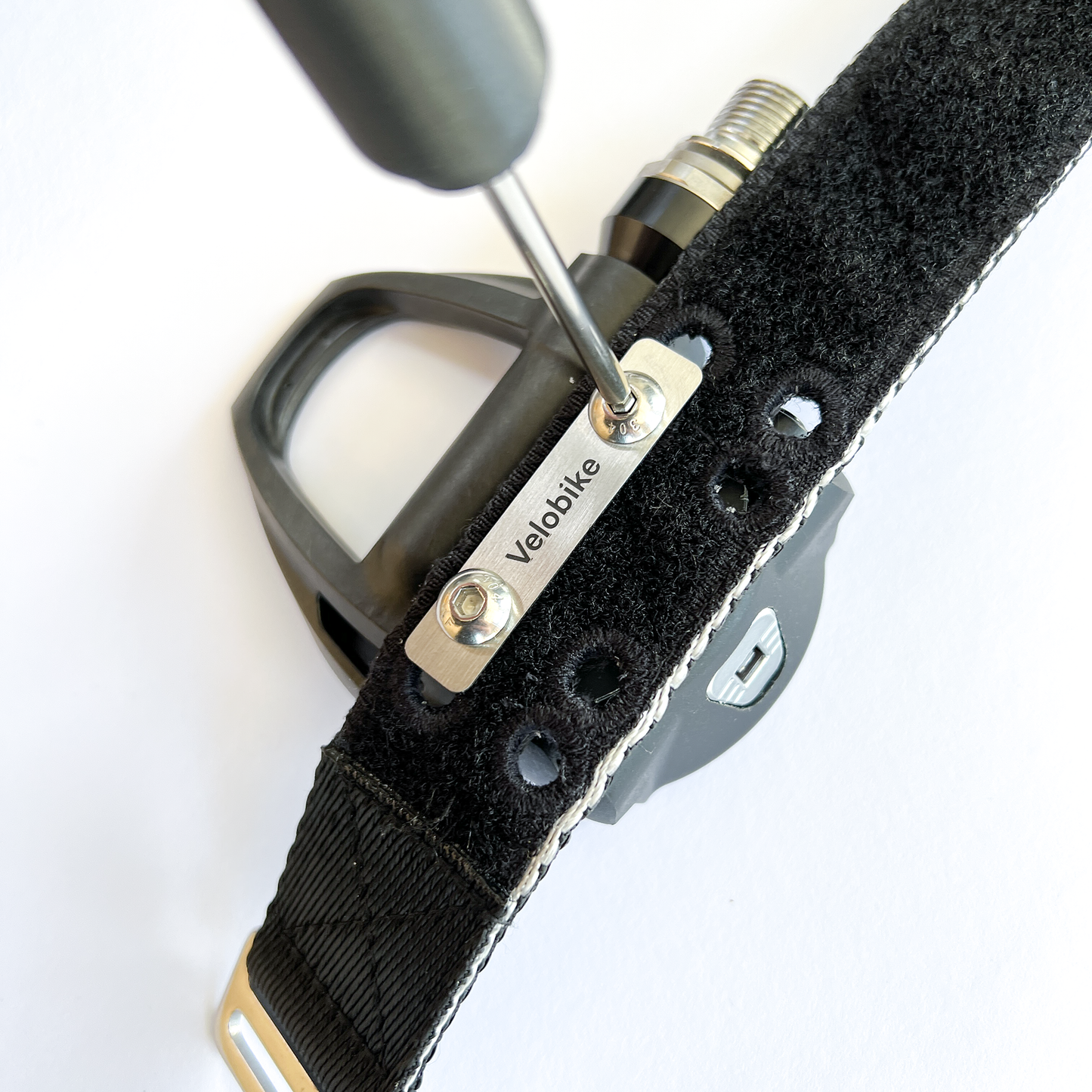

- Pass the two M5 button head screw through the stainless steel plate and strap - into the strap mount. Torque up to 3Nm. Loctite 243 is recommended for these fastenings to increase security.
