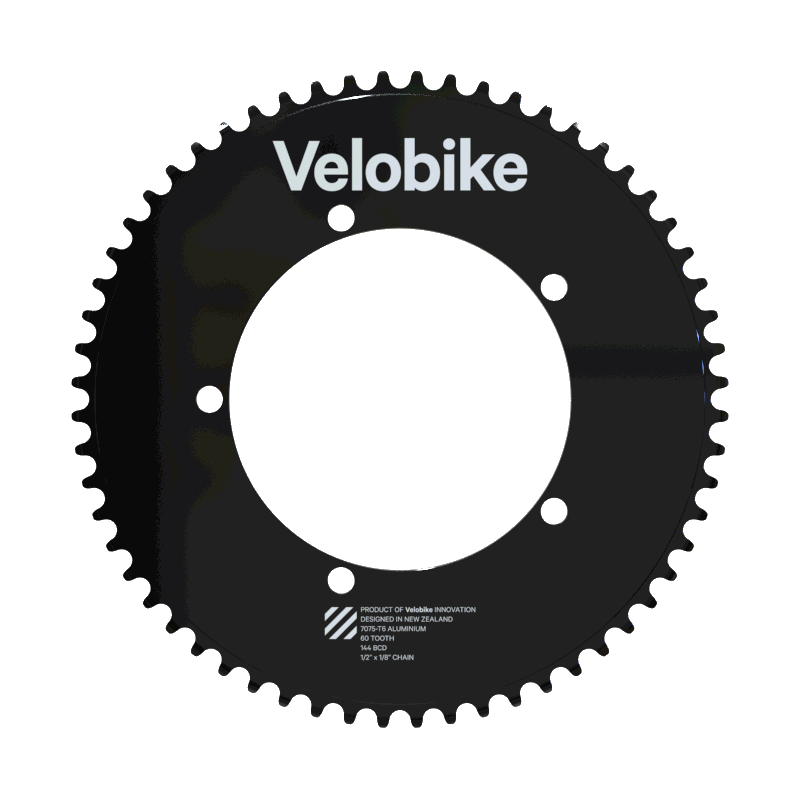

Elite Track Chainring
Elite Track Chainring
SKU:VB-CET-1814449
A high level aluminium Velobike chainring designed for great performance and drive chain efficiency.
Precision CNC machined aluminium with a post anodising and low friction infusion process impregnated into the highly tolerance tooth profile. The 7075-T6 aluminium grade offers the greatest strength to weight ratio - making the elite range a stiff yet relatively lightweight performance chainring.
The Elite Track Chainrings tooth profile is a result of multiple years of iterative development - optimising the profile for reduced noise and friction as the chain links engage and disengage with the teeth during the chainrings rotation. The 1/8" Elite track chainrings show a 4.9% increase in efficiency over the next nearest Olympic level chainring.
The Elite Track Chainrings have been developed to have the greatest stiffness to weight to efficiency to cost ratio on the planet.
World Championship winning by Aus Cycling in the Mens Team Sprint 2022
Used by Cycling New Zealand and Aus Cycling at the Paris Olympics.
Specifications:
- 144BCD
- Standard 1/8” chain width
- Aerospace grade 7075-T6 aluminium for maximum stiffness yet minimum weight
- Velobike Innovation proprietary Gen3 tooth profile
- Precision CNC Machined
- Gen3 tooth profile
- Chamfered relief cutout on rear side for weight reduction. The chamfered edged help air flow over the ridges reducing flow separation
- Stepped surface design between teeth and the main body of the chainring plate keeps the chain outer plates flush with the chainring to reduce air flow separation.
- Tough anodised surface treatment, infused with a hi-tech low friction compound
-
JKA certified for Japanese's 250 Keirin Racing (48-68t)
© The intellectual property for this product is owned by Velobike Innovation Limited. All rights reserved.
Share
Perfect as I expect, I have now more range of effort for some 100m
great chainring, very veryy stiff and the most important thing is very affordable.
Superb tanky chainring,strong and tough.Highly recommended
